074 R (111-074R100) - Cub Cadet Walk-Behind Mower Engine (1991) B&S 3.5 HP 121702-3130-01 Part 2 Parts Diagram

Walk-Behind Mower Engine

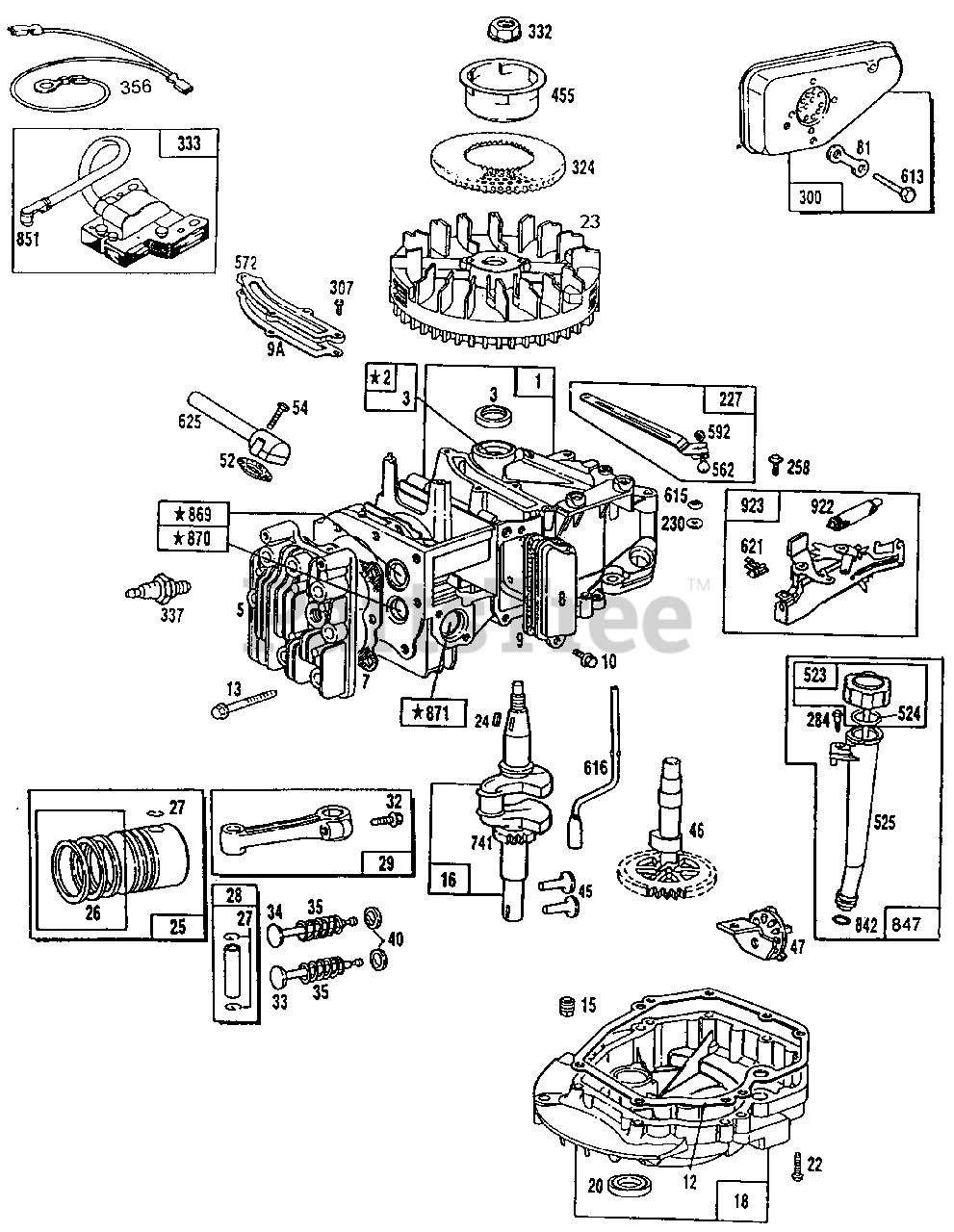

B&S 3.5 HP 121702-3130-01 Part 2 Parts Diagram

  • Title

1

Cub Cadet BS-493260

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-293708

Bushing-Cylinder
(Superseded to BS-399269)

$21.99

$

In Stock, Qty 6

0

3

Cub Cadet BS-393862

Seal-Oil
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 20+

0

5

Cub Cadet BS-213610

Head-Cylinder

$

$

Not available

7

Cub Cadet BS-272200

Gasket-Cylinder Hd.

$

$

Not available

8

Cub Cadet BS-399717

Breather-Valve Chamber
(Superseded to BS-590395)

$14.99

$

In Stock, Qty 11

0

9

Cub Cadet BS-271904

Gasket-Valve Cover
(Superseded to BS-699833)

$5.49

$

In Stock, Qty 11

0

9A

Cub Cadet BS-272238

Gasket-Baffle Plate
(Superseded to BS-691879)

$6.99

$

In Stock, only 1 left!

0

10

Cub Cadet BS-94222

Screw-Breather Mounting Sem

$

$

Not available

12

Cub Cadet BS-272198

Gasket-Crankcase
(Superseded to BS-692232)

$5.99

$

In Stock, Qty 20+

0

13

Cub Cadet BS-94547

Screw-Cylinder Hd.
(Superseded to BS-690912)

$3.99

$

In Stock, Qty 15

0

15

Cub Cadet BS-94239

Plug-Oil Drain
(Superseded to BS-690946)

$5.99

$

In Stock, Qty 17

0

16

Cub Cadet BS-493433

Crankshaft

$

$

Not available

18

Cub Cadet BS-493279

Sump-Engine

$120.99

$

In Stock, Qty 5

0

20

Cub Cadet BS-399781

Seal-Oil
(Superseded to BS-399781S)

$7.99

$

In Stock, Qty 19

0

22

Cub Cadet BS-94220

Screw-Sump Mtg. Sem
(Superseded to BS-691092)

$3.99

$

In Stock, Qty 5

0

23

Cub Cadet BS-492177

Flywheel-Magneto
(Superseded to BS-691987)

$112.99

$

In Stock, only 1 left!

0

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-493262

Piston Ass'y.-Standard

$74.99

$

In Stock, only 1 left!

0

Cub Cadet BS-493385

Piston Ass'y.-.010" O.S.

$62.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-493386

Piston Ass'y.-.020" O.S.

$38.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-493387

Piston Ass'y.-.030" O.S.

$62.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-493261

Ring Set-Std. Piston

$41.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-493388

Ring Set-.010" O.S. Piston

$31.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-493389

Ring Set-.020" O.S. Piston

$22.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-493390

Ring Set-.030" O.S. Piston

$29.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-26026

Lock-Piston Pin

$

$

Not available

28

Cub Cadet BS-298909

Pin Assembly-Piston-Standard

$8.99

$

In Stock, only 4 left!

0

Cub Cadet BS-298908

Pin Assembly-Piston-.005" O.S.

$4.99

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-490566

Rod Assembly-Connecting

$39.99

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-94405

Screw-Connecting Rod

$

$

Not available

33

Cub Cadet BS-262651

Valve-Exhaust

$

$

Not available

34

Cub Cadet BS-262652

Valve-Intake

$

$

Not available

35

Cub Cadet BS-262224

Spring-Valve
(Superseded to BS-691270)

$5.49

$

In Stock, Qty 11

0

40

Cub Cadet BS-93312

Retainer-Valve Spring
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 18

0

45

Cub Cadet BS-262204

Tappet-Valve
(Superseded to BS-690548)

$9.99

$

Usually ships in 2-12 days

0

46

Cub Cadet BS-492828

Gear-Cam

$51.99

$

Usually ships in 2-12 days

0

47

Cub Cadet BS-493737

Oil Slinger Gear and Bracket
(Superseded to BS-691997)

$25.99

$

In Stock, only 1 left!

0

52

Cub Cadet BS-272199

Gasket-Intake Elbow
(Superseded to BS-272199S)

$4.99

$

In Stock, Qty 12

0

54

Cub Cadet BS-94526

Screw-Intake Elbow Mounting
(Superseded to BS-691650)

$2.99

$

In Stock, only 2 left!

0

81

Cub Cadet BS-223664

Lock-Muffler Screw
(Superseded to BS-691740)

$5.49

$

In Stock, only 1 left!

0

227

Cub Cadet BS-492349

Lever Assembly-Gov.
(Superseded to BS-690783)

$15.99

$

Usually ships in 2-12 days

0

230

Cub Cadet BS-67072

Washer-Governor Crank
(Superseded to BS-690272)

$3.99

$

Usually ships in 2-12 days

0

258

Cub Cadet BS-94512

Screw-Hex Head
(Superseded to BS-691648)

$4.99

$

Usually ships in 2-12 days

0

284

Cub Cadet BS-94511

Screw-Hex Hd.
(Superseded to BS-690940)

$3.99

$

In Stock, only 4 left!

0

300

Cub Cadet BS-490547

Muffler-Exhaust
(Superseded to BS-692038)

$29.99

$

In Stock, Qty 7

0

307

Cub Cadet BS-94515

Screw-Hex Head

$

$

Not available

324

Cub Cadet BS-224251

Screen-Rotating

$

$

Currently unavailable

332

Cub Cadet BS-92284

Nut-Flywheel
(Superseded to 712-3056)

$4.49

$

In Stock, Qty 11

0

333

Cub Cadet BS-802574

Armature-Magneto
(Superseded to BS-796964)

$55.99

$

In Stock, only 2 left!

0

337

Cub Cadet 759-3331

Plug-Spark 1 1/2" High-37-42 MM. (With Gasket)

$3.99

$

In Stock, only 2 left!

0

356

Cub Cadet BS-398808

Wire-Ground

$11.99

$

In Stock, only 1 left!

0

455

Cub Cadet BS-224250

Cup-Starter

$9.49

$

Usually ships in 2-12 days

0

523

Cub Cadet BS-493951

Cap with Dipstick-Oil Filler
(Superseded to BS-499621)

$17.99

$

In Stock, Qty 6

0

524

Cub Cadet BS-280393

Seal-Filler Tube
(Superseded to BS-691031)

$5.49

$

In Stock, Qty 12

0

525

Cub Cadet BS-493952

Tube-Oil Filler
(Superseded to BS-495265)

$

$

Not available

562

Cub Cadet BS-92613

Bolt-Governor Lever

$

$

Not available

572

Cub Cadet BS-224328

Baffle-Cylinder

$

$

Not available

592

Cub Cadet BS-231082

Nut-Hex

$

$

Not available

613

Cub Cadet BS-94231

Screw-Muffler Mtg.
(Superseded to BS-691340)

$4.99

$

In Stock, only 2 left!

0

615

Cub Cadet BS-94474

Pushnut
(Superseded to BS-690340)

Note: (Governor Crank)

$4.49

$

In Stock, only 1 left!

0

616

Cub Cadet BS-262578

Crank-Governor

$

$

Not available

621

Cub Cadet BS-396847

Switch-Stop
(Superseded to BS-692310)

$5.99

$

In Stock, Qty 20+

0

625

Cub Cadet BS-492717

Tube-Fuel Intake
(Superseded to BS-794305)

$

$

Not available

741

Cub Cadet BS-262598

Gear-Timing
(Superseded to BS-691830)

$17.99

$

Usually ships in 2-12 days

0

842

Cub Cadet BS-280966

Seal-O-Ring
(Superseded to BS-692296)

$4.99

$

In Stock, Qty 11

0

847

Cub Cadet BS-493461

Tube and Dipstick-Oil Fill
(Superseded to BS-692047)

$

$

Not available

851

Cub Cadet BS-221798

Terminal-Ignition Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

869

Cub Cadet BS-213512

Seat-Intake Valve
(Superseded to BS-691155)

Note: (Standard)

$8.99

$

Usually ships in 2-12 days

0

870

Cub Cadet BS-213513

Seat-Exhaust Valve

Note: (Standard)

$

$

Not available

871

Cub Cadet BS-262001

Guide-Exhaust Valve

$13.99

$

Usually ships in 2-12 days

0

922

Cub Cadet BS-262640

Spring-Brake
(Superseded to BS-691831)

$10.99

$

In Stock, only 3 left!

0

923

Cub Cadet BS-493442

Brake Assembly
(Superseded to BS-796387)

$

$

Not available
