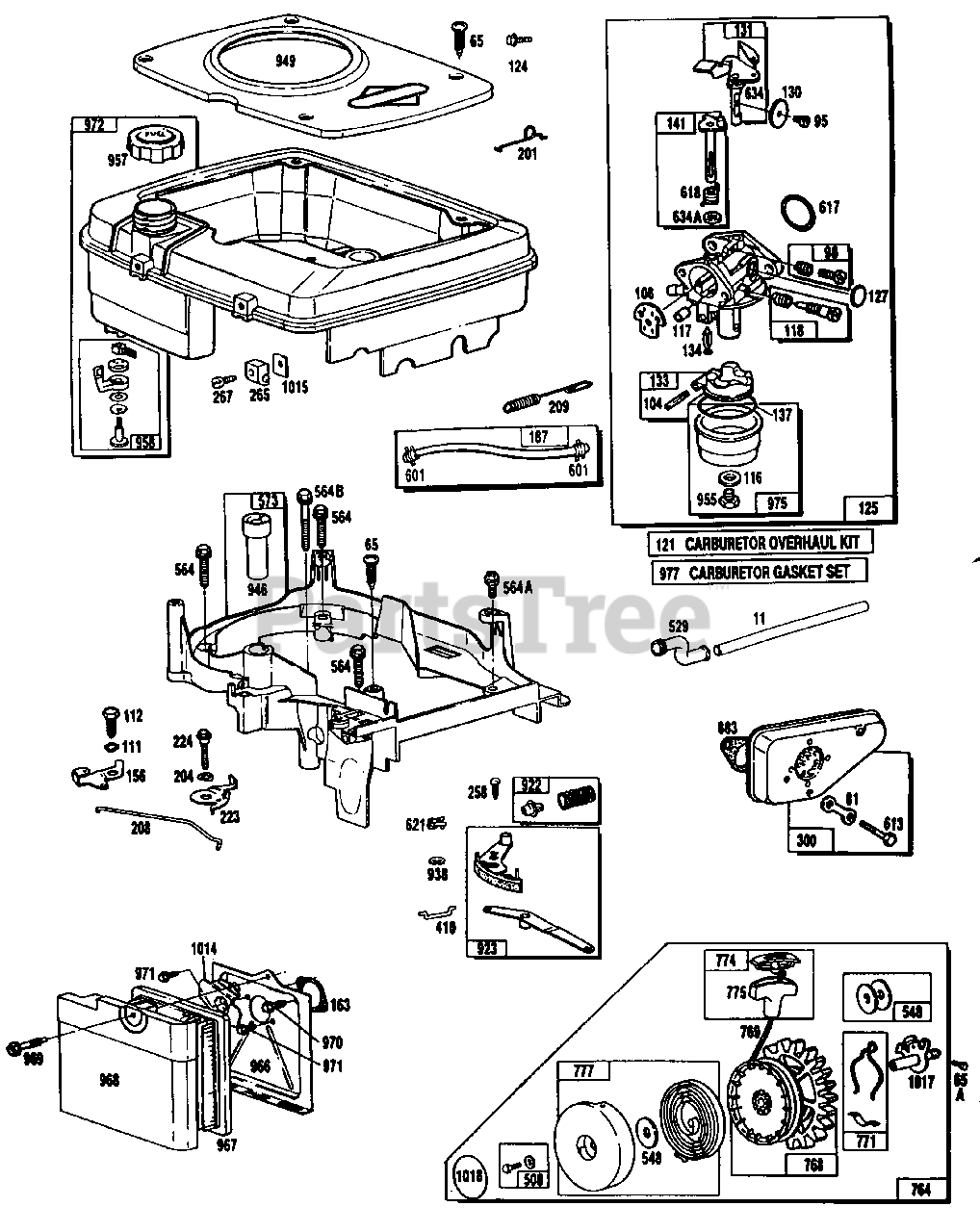

074 R (119-074R100) - Cub Cadet Walk-Behind Mower Engine (1989) B&S 3.5 HP 100708-3120-01 Part 2 Parts Diagram

Walk-Behind Mower Engine

B&S 3.5 HP 100708-3120-01 Part 2 Parts Diagram

  • Title

11

Cub Cadet BS-231496

Tube Breather

$

$

Currently unavailable

65

Cub Cadet BS-94237

Screw Guard Mounting

$3.49

$

Usually ships in 2-12 days

0

65A

Cub Cadet BS-94225

Screw Vertical Pull Starter Mounting

$

$

Currently unavailable

81

Cub Cadet BS-223644

Lock Muffler Screw

$

$

Currently unavailable

95

Cub Cadet BS-94098

Screw Throttle Valve Mounting Sem
(Superseded to BS-691636)

$3.99

$

In Stock, only 2 left!

0

98

Cub Cadet BS-398185

Screw Idle Adjustment

$7.99

$

Usually ships in 2-12 days

0

104

Cub Cadet BS-231371

Pin Float Hinge
(Superseded to BS-797622)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$3.99

$

Usually ships in 2-12 days

0

108

Cub Cadet BS-223471

Valve Choke
(Superseded to BS-691182)

$9.49

$

Usually ships in 2-12 days

0

111

Cub Cadet BS-94060

Washer Wave

$

$

Not available

112

Cub Cadet BS-94199

Screw Hex Head

$

$

Not available

116

Gasket Sealing (Sold in Kit Only)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

117

Jet (Sold in Kit Only)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

118

Cub Cadet BS-398670

Valve and Spring Needle

$

$

Not available

121

Cub Cadet BS-492072

Carburetor Overhaul Kit
(Superseded to BS-494349)

$20.99

$

In Stock, only 2 left!

0

124

Cub Cadet BS-94268

Screw Carburetor Mtg.
(Superseded to BS-691127)

$4.49

$

In Stock, Qty 8

0

125

Cub Cadet BS-490751

Carburetor Assembly

$

$

Not available

127

Plug Welch (Sold in Kit Only)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

130

Cub Cadet BS-223470

Valve Throttle

$

$

Not available

131

Cub Cadet BS-490749

Shaft and Lever Throttle

$

$

Currently unavailable

133

Cub Cadet BS-398187

Float Ass'y. Carburetor

$9.99

$

In Stock, Qty 10

0

134

Cub Cadet BS-398188

Valve Inlet (Includes Seat)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$6.49

$

In Stock, Qty 20+

0

137

Gasket Bowl (Sold in Kit Only)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

141

Cub Cadet BS-398186

Shaft Choke

$10.99

$

In Stock, only 1 left!

0

156

Cub Cadet BS-223764

Lever Speed Control

$

$

Currently unavailable

163

Cub Cadet BS-271840

Gasket Air Cleaner

$

$

Not available

187

Cub Cadet BS-393815

Hose Fuel

$11.99

$

Usually ships in 2-12 days

0

201

Cub Cadet BS-262330

Link Governor

$

$

Currently unavailable

204

Cub Cadet BS-94261

Washer Spring

$1.49

$

Usually ships in 2-12 days

0

208

Cub Cadet BS-262254

Link Control

$

$

Currently unavailable

209

Cub Cadet BS-262300

Spring Governor

$6.99

$

Usually ships in 2-12 days

0

223

Cub Cadet BS-223758

Lever Governor

$

$

Currently unavailable

224

Cub Cadet BS-94319

Screw Shoulder

$

$

Currently unavailable

258

Cub Cadet BS-94223

Screw Hex Head

$

$

Currently unavailable

265

Cub Cadet BS-213146

Clamp Casing
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

267

Cub Cadet BS-94264

Screw Clamp Mtg.

$

$

Not available

300

Cub Cadet BS-490547

Muffler Exhaust
(Superseded to BS-692038)

$29.99

$

In Stock, Qty 7

0

410

Cub Cadet BS-262327

Link Brake

$

$

Currently unavailable

508

Cub Cadet BS-490875

Screw Sem

$7.49

$

Usually ships in 2-12 days

0

529

Cub Cadet BS-280711

Grommet Breather

$

$

Currently unavailable

548

Cub Cadet BS-490879

Washer Set Starter

$

$

Currently unavailable

564

Cub Cadet BS-94233

Screw Backplate (1-21/32" Long)

$

$

Currently unavailable

564A

Cub Cadet BS-94234

Screw Backplate (25/32" Long)

$3.49

$

Usually ships in 2-12 days

0

564B

Cub Cadet BS-94270

Screw Backplate (2-1/2" Long)

$

$

Currently unavailable

573

Cub Cadet BS-490577

Backplate Assembly

$

$

Currently unavailable

601

Cub Cadet BS-93053

Clamp Hose
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

613

Cub Cadet BS-94231

Screw Muffler Mtg.
(Superseded to BS-691340)

$4.99

$

In Stock, only 2 left!

0

617

Cub Cadet BS-270344

Seal Fuel Intake Tube
(Superseded to BS-270344S)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$3.49

$

In Stock, Qty 20+

0

618

Cub Cadet BS-262035

Spring Choke

$6.49

$

Usually ships in 2-12 days

0

621

Cub Cadet BS-396847

Switch Stop
(Superseded to BS-692310)

$5.99

$

In Stock, Qty 20+

0

634

Washer Throttle Shaft (Sold in Kit Only)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

634A

Seal Choke (Sold in Kit Only)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

764

Cub Cadet BS-490647

Starter Assembly

$100.99

$

In Stock, only 1 left!

0

768

Cub Cadet BS-490877

Pulley and Gear Assembly Starter

$20.99

$

Usually ships in 2-12 days

0

769

Cub Cadet BS-490876

Rope Starter

$10.99

$

Usually ships in 2-12 days

0

771

Cub Cadet BS-490878

Clip Starter

$14.99

$

Usually ships in 2-12 days

0

774

Cub Cadet BS-393152

Insert Starter Handle

$4.99

$

In Stock, only 3 left!

0

775

Cub Cadet BS-396892

Grip Starer Rope

$5.49

$

In Stock, only 2 left!

0

777

Cub Cadet BS-490874

Spring Starter

$

$

Not available

883

Cub Cadet BS-271918

Gasket Exhaust

$

$

Not available

922

Cub Cadet BS-490658

Spring Band Brake (Includes Retainers)

$

$

Currently unavailable

923

Cub Cadet BS-490659

Brake Assembly Band

$32.99

$

Usually ships in 2-12 days

0

938

Cub Cadet BS-490657

Ring Retainer (Includes 2)

$

$

Currently unavailable

946

Cub Cadet BS-490655

Rope Guide Starter

$

$

Not available

949

Cub Cadet BS-280662

Cover Static-Gard

$26.99

$

Usually ships in 2-12 days

0

955

Cub Cadet BS-231373

Screw Bowl Mtg.

$

$

Currently unavailable

957

Cub Cadet BS-397974

Cap Assembly Fuel
(Superseded to BS-796577)

$16.99

$

In Stock, Qty 12

0

958

Cub Cadet BS-490656

Valve Fuel Shut-Off

$6.49

$

Usually ships in 2-12 days

0

966

Cub Cadet BS-223830

Base Air Cleaner

$

$

Currently unavailable

967

Cub Cadet BS-399877

Filter Air

$

$

Not available

968

Cub Cadet BS-280661

Cover Air Cleaner

$7.99

$

Usually ships in 2-12 days

0

969

Cub Cadet BS-94120

Screw Cover Mtg.
(Superseded to BS-690670)

$5.99

$

In Stock, only 4 left!

0

970

Cub Cadet BS-94279

Screw Hex Hd.

$3.99

$

Usually ships in 2-12 days

0

971

Cub Cadet BS-94269

Screw Air Cleaner

$

$

Not available

972

Cub Cadet BS-491062

Tank Assembly Fuel

$136.99

$

Usually ships in 2-12 days

0

975

Cub Cadet BS-398191

Bowl Assembly Carburetor

$

$

Not available

977

Cub Cadet BS-490937

Gasket Set Carburetor
(Superseded to BS-498260)

$16.99

$

In Stock, Qty 20+

0

1014

Cub Cadet BS-223831

Deflector Breather

$

$

Currently unavailable

1015

Cub Cadet BS-223649

PlateCasing Clamp

$4.49

$

Usually ships in 2-12 days

0

1017

Cub Cadet BS-490866

Shaft Starter

$46.99

$

Usually ships in 2-12 days

0

1018

Cub Cadet BS-272017

Decal Starter

$

$

Currently unavailable
