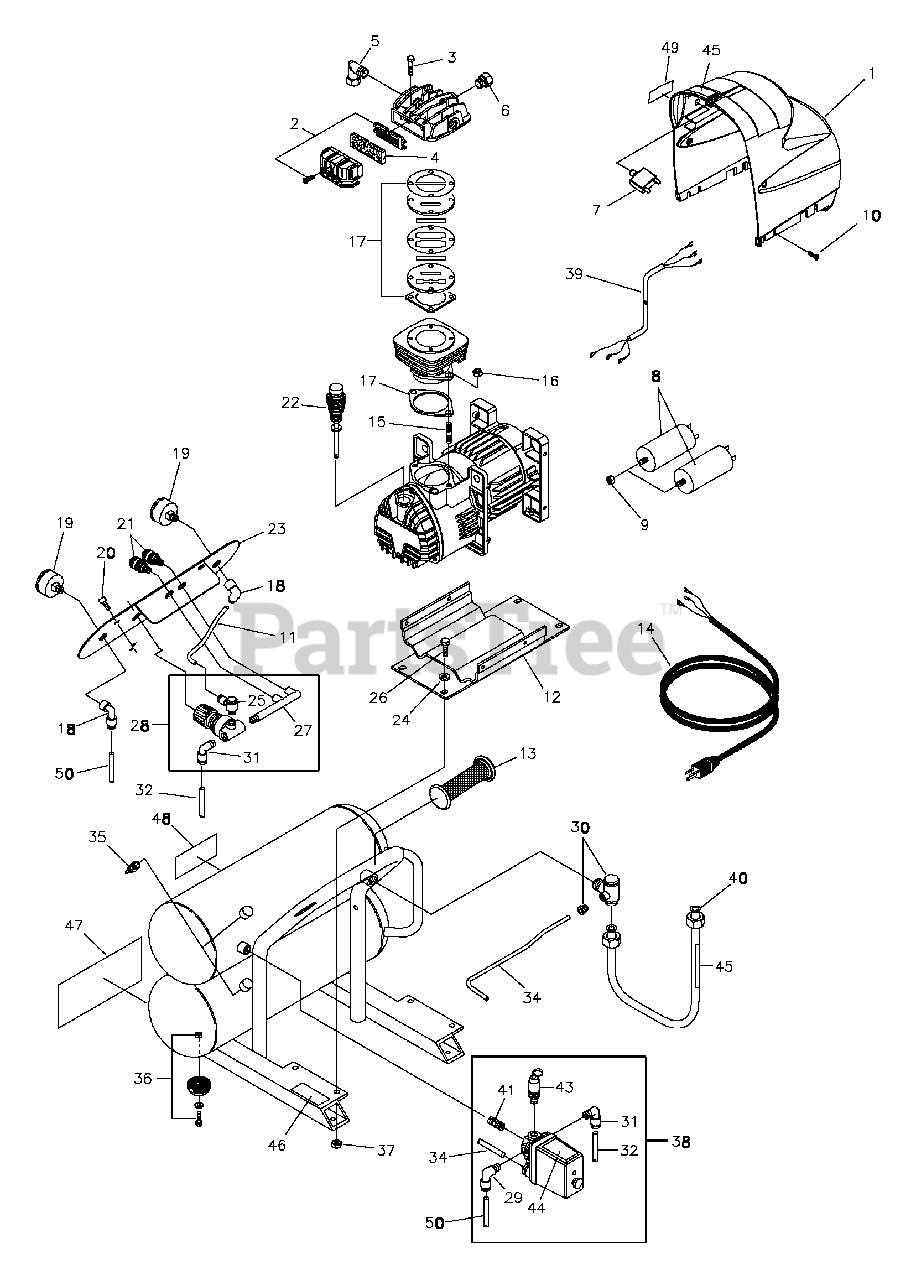

074001-0 - Briggs & Stratton Twin Tank Air Compressor, 4.9 CFM Main Unit Parts Diagram

Twin Tank Air Compressor, 4.9 CFM

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 200690GS

KIT, Shroud, Plastic

Note: (Includes #45 & 49)

$67.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 200687GS

KIT, Air Filter

$14.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 200684GS

SCREW, M6 x 40

$

$

Currently unavailable

4

Briggs & Stratton 200697GS

FILTERING ELEMENT

$9.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 200685GS

CONNECTOR, Elbow

$

$

Currently unavailable

6

Briggs & Stratton 200688GS

VALVE, Start

$22.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 200717GS

BREAKER, Circuit, 17A

$19.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 200694GS

CAPACITOR

$93.99

$

Usually ships in 2-12 days

0

9

NUT,M8

Note: (Purchase locally)

$

$

Not available

10

SCREW, Taptite M5 x 20

Note: (Purchase locally)

$

$

Not available

11

Briggs & Stratton 199961GS

HOSE, Rilsan

Note: (cut to fit)

$11.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 200984GS

BASE

$

$

Currently unavailable

13

Briggs & Stratton 200682GS

HANDLE

$31.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 200720GS

ASSY, Cable, Power

$15.99

$

In Stock, only 1 left!

0

15

STUD BOLT

Note: (Purchase locally)

$

$

Not available

16

NUT, M8

Note: (Purchase locally)

$

$

Not available

17

Briggs & Stratton 200718GS

KIT, Valve Plate

$

$

Currently unavailable

18

Briggs & Stratton 200985GS

CONNECTOR, Elbow

$

$

Currently unavailable

19

Briggs & Stratton 200680GS

GAUGE, Pressure

$32.99

$

Usually ships in 2-12 days

0

20

PPHMS, 5 x 12

Note: (Purchase locally)

$

$

Not available

21

Briggs & Stratton 200677GS

COUPLER, Quick Connect

$25.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 200691GS

DIPSTICK, Oil

$9.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 200704GS

KIT, Panel, Instrumental

$45.99

$

Usually ships in 2-12 days

0

24

WASHER

Note: (Purchase locally)

$

$

Not available

25

Briggs & Stratton 200986GS

CONNECTOR, Elbow

$

$

Currently unavailable

26

HHCS, M8 x 25

Note: (Purchase locally)

$

$

Not available

27

Briggs & Stratton 200706GS

MANIFOLD

$

$

Currently unavailable

28

Briggs & Stratton 200995GS

ASSY, Pressure Regulator

$75.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 200992GS

CONNECTOR, Elbow

$

$

Currently unavailable

30

Briggs & Stratton 200674GS

VALVE, Non Return

$22.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 200988GS

CONNECTOR, Elbow

$

$

Currently unavailable

32

Briggs & Stratton 200989GS

HOSE, Rilsan

$20.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 199961GS

HOSE, Rilsan

$11.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 200675GS

VALVE, Drain

$35.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 192310GS

KIT, Vib Mount

$9.99

$

In Stock, only 4 left!

0

37

NUT

Note: (Purchase locally)

$

$

Not available

38

Briggs & Stratton 200994GS

ASSY, Pressure Switch

$93.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 200910GS

WIRE HARNESS

$

$

Currently unavailable

40

Briggs & Stratton 200703GS

KIT, Tube, Infeed

$104.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 201697GS

ADAPTER

$

$

Currently unavailable

43

Briggs & Stratton 200678GS

VALVE, Safety

$35.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 199176GS

DECAL, Electric Shock

$36.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 199174GS

DECAL, Hot Surface

$12.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 201732GS

DECAL, Important, Level Surface

$12.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 199172GS

DECAL, Warning

$31.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 199739GS

DECAL, Warning, Tank Drain

$12.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 201731GS

DECAL, Reset

$12.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 199961GS

HOSE, Rilsan

$11.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 198815GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 201765GS

OIL, Compressor

Note: Not Illustrated

$

$

Currently unavailable
