074008-0 - Briggs & Stratton 6 gallon Air Compressor, 4.9 CFM Air Compressor Parts Diagram

6 gallon Air Compressor, 4.9 CFM

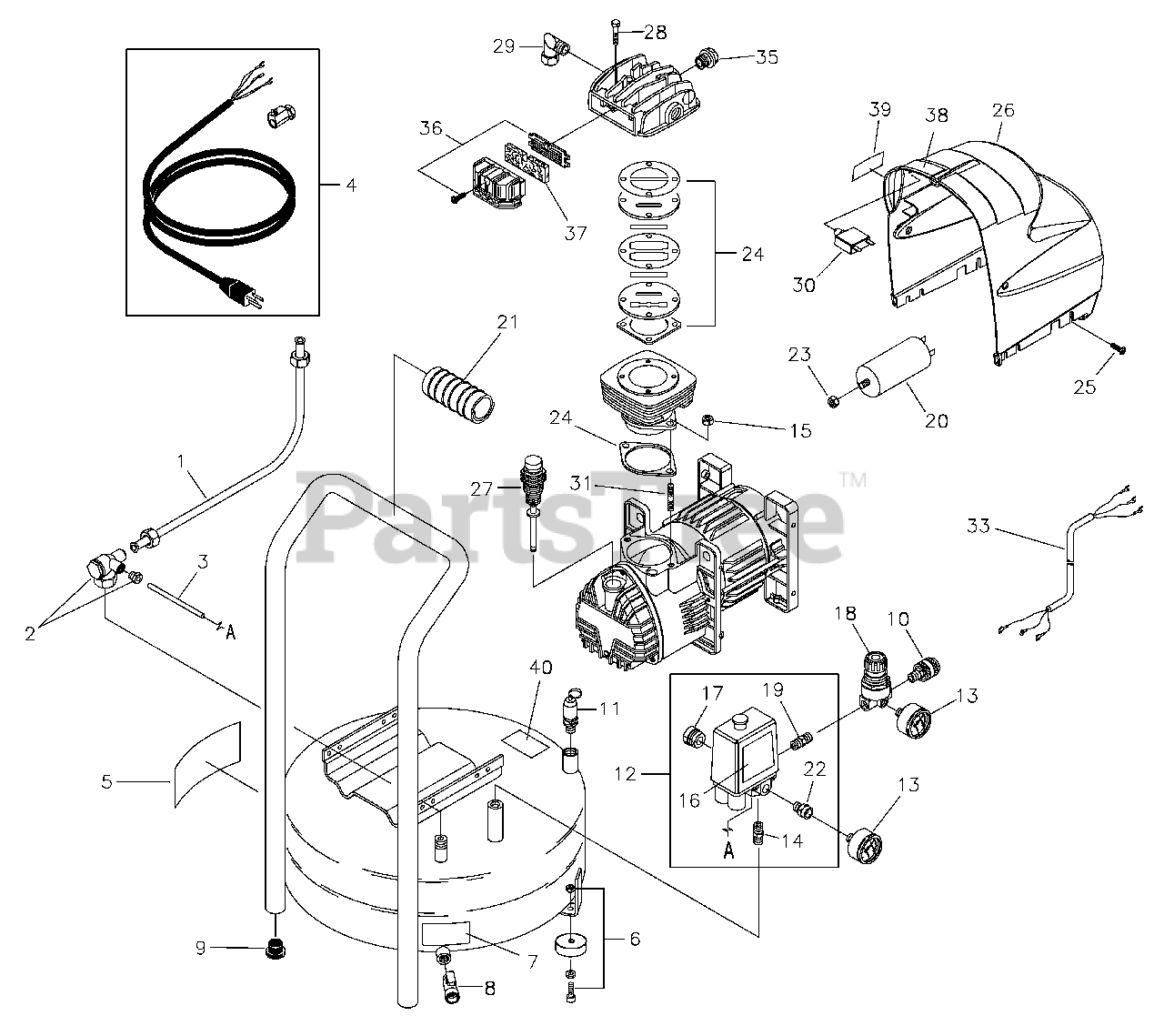

Air Compressor Parts Diagram

  • Title

1

Briggs & Stratton 200673GS

Tube, Infeed

$53.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 200674GS

Valve, Relief

$22.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 199961GS

Hose, Rilsan

$11.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 200720GS

Assy, Cable, Power

$15.99

$

In Stock, only 1 left!

0

5

Briggs & Stratton 199172GS

Decal, Warning

$31.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 192310GS

Kit, Vib Mount

$9.99

$

In Stock, only 4 left!

0

7

Briggs & Stratton 199739GS

Decal, Tank Drain

$12.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 200675GS

Valve, Drain

$35.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 200676GS

Rubber Foot

$3.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 200677GS

Coupler, Quick Connect

$25.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 200678GS

Valve, Safety

$35.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 200679GS

Assy, Pressure Switch

$67.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 200680GS

Gauge, Pressure

$32.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 201697GS

Adapter

$

$

Currently unavailable

15

Nut, M8

Note: (Purchase locally)

$

$

Not available

16

Briggs & Stratton 199176GS

Decal, Electric Shock

$36.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 200364GS

Plug

$

$

Currently unavailable

18

Briggs & Stratton 200681GS

Pressure Regulator

$52.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 201059GS

Adapter

$

$

Currently unavailable

20

Briggs & Stratton 200692GS

Capacitor, 60µF

$132.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 200682GS

Handle

$31.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 200683GS

Coupling

$14.99

$

Usually ships in 2-12 days

0

23

Nut, M8

Note: (Purchase locally)

$

$

Not available

24

Briggs & Stratton 200689GS

Kit, Valve Plate

$

$

Currently unavailable

25

Screw, Taptite M5 x 20

Note: (Purchase locally)

$

$

Not available

26

Briggs & Stratton 200690GS

Kit, Shroud, Plastic

Note: Includes #38 & 39

$67.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 200691GS

Dipstick, Oil

$9.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 200684GS

Screw, M6 x 40

$

$

Currently unavailable

29

Briggs & Stratton 200685GS

Connector, Elbow

$

$

Currently unavailable

30

Briggs & Stratton 200717GS

Breaker,Circuit, 17A

$19.99

$

Usually ships in 2-12 days

0

31

Stud Bolt

Note: (Purchase locally)

$

$

Not available

33

Briggs & Stratton 200910GS

Wire Harness

$

$

Currently unavailable

35

Briggs & Stratton 200688GS

Valve, Start

$22.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 200687GS

Kit, Air Filter

$14.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 200697GS

Filtering Element

$9.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 199174GS

Decal, Hot Surface

$12.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 201731GS

Decal, Reset

$12.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 201732GS

Decal, Important

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 203719GS

Manual, Operator's

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 201765GS

Oil, Compressor

Note: Parts Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 203884GS

Decal, Logo

Note: Parts Not Illustrated

$

$

Currently unavailable
