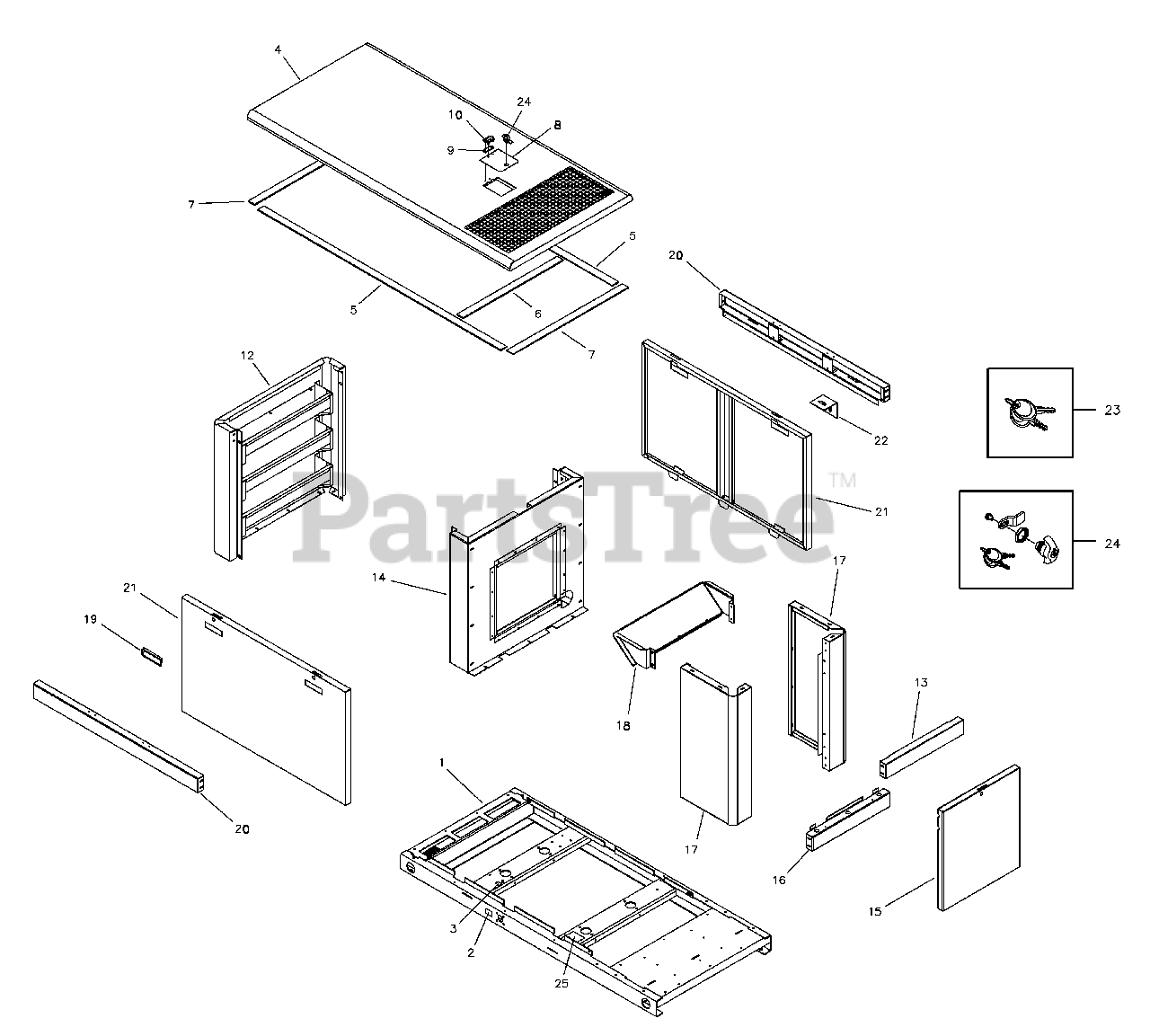

076000LP-0 - Briggs & Stratton 30kW Home Standby Generator Enclosure (205047) Parts Diagram

30kW Home Standby Generator

Enclosure (205047) Parts Diagram

  • Title

1

Briggs & Stratton AA204477GS

BASE
(Superseded to 316549GS)

$1783.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 186643GS

DECAL, Fuel Inlet
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 205849GS

ASSY, Roof
(Superseded to 312049GS)

$1805.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 205368GS

SEAL TAPE, Vinyl

$77.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton T204451GS

COVER, Radiator
(Superseded to AF310482GS)

$20.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton T204443GS

HINGE, Plate

$27.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 205225GS

HINGE, Plate Cover

$22.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 205855GS

ASSY, Bulkhead, Alt.

$1057.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 205853GS

ASSY, Support Rail, Top

$505.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 205850GS

ASSY, Bulkhead, Engine

$905.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 205854GS

ASSY, Door

$982.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 207030GS

ASSY, Support Rail, Bottom

$553.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 205851GS

ASSY, Corner, Exhaust

$650.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 207024GS

ASSY, Baffle Exhaust
(Superseded to 208050GS)

$501.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 186049GS

HANDLE, Door

$3.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 207031GS

ASSY, Support Rail

$780.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 207032GS

ASSY, Weldment Door

$939.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton AA204460GS

BRACKET
(Superseded to B310486GS)

$8.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 194828GS

KEY, Door Latch

$16.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 195998GS

KIT, Door Latch
(Superseded to 198889GS)

$48.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 205126GS

DECAL, Requirements

$8.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 205358GS

SEAL, Hollow, 200 Ft Roll (Cut to Fit)
(Superseded to 207942GS)

Note: Parts Not Illustrated

$1086.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 205357GS

SEAL, Tape, Vinyl, 50 Ft Roll (Cut to Fit)

Note: Parts Not Illustrated

$52.99

$

Usually ships in 2-12 days

0
