076000NG - Briggs & Stratton 30kW Home Standby Generator Main Unit (205044) Parts Diagram

30kW Home Standby Generator

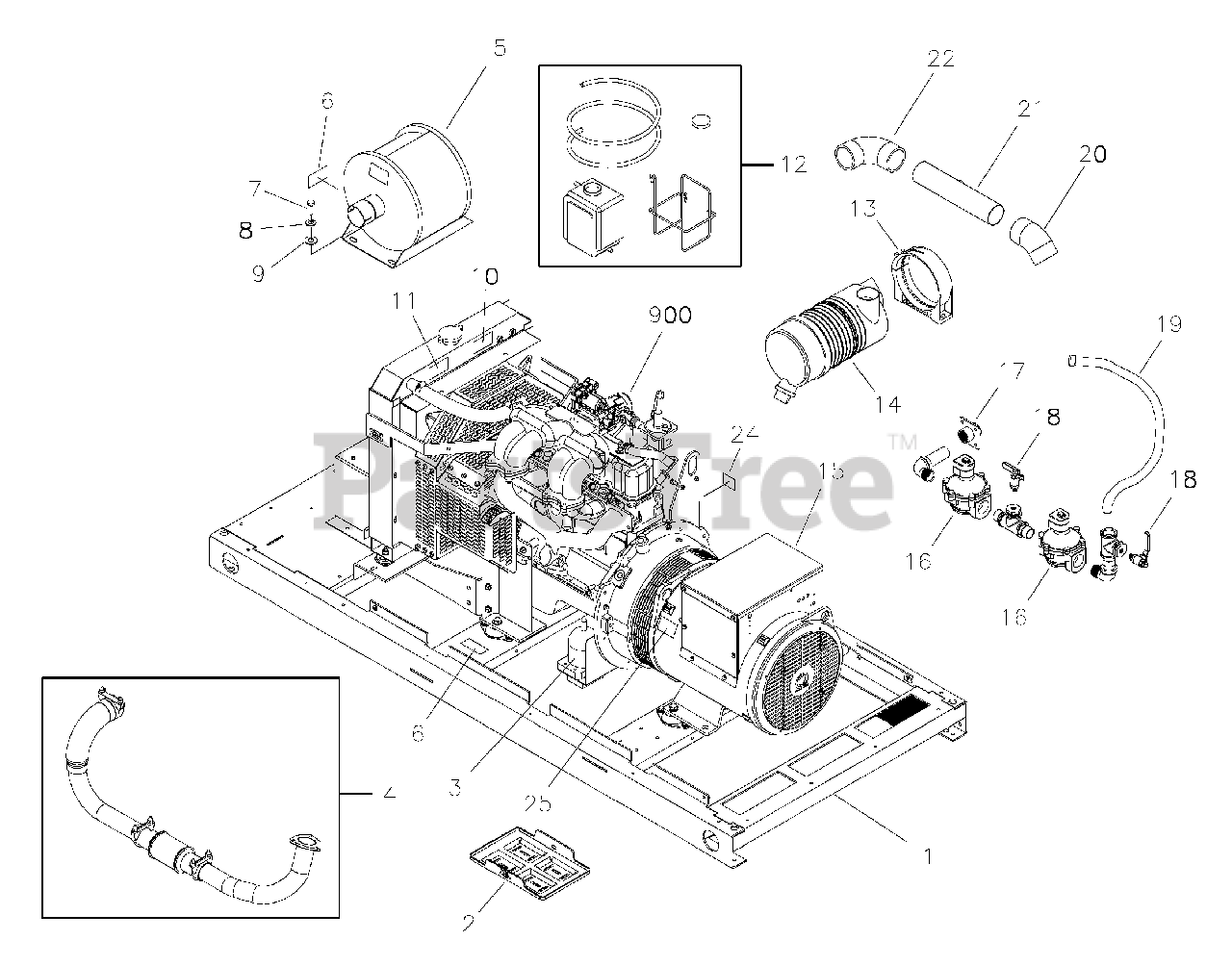

Main Unit (205044) Parts Diagram

  • Title

1

Briggs & Stratton AA204477GS

BASE
(Superseded to 316549GS)

$1783.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 205623GS

TRAY, Battery

$22.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 206119GS

ASSEMBLY, Heater, Tank

$216.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 204892GS

KIT, Exhaust

$418.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 204654GS

SILENCER, Muffler

$1551.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 205398GS

DECAL, Burn Hazard
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

7

-----

*CAPSCREW, Hex Head, 5/16-18 x 1

$

$

Not available

8

-----

*WASHER, Lock, 5/16 - M8

$

$

Not available

9

-----

*WASHER, Flat, 5/16 - M8

$

$

Not available

10

Briggs & Stratton 205396GS

DECAL, Warning Hot Coolant

$7.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 205399GS

DECAL, Warning Moving Parts
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 205226GS

KIT, Bottle Overflow

$42.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 205103GS

CLAMP, Air Cleaner

$46.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 204274GS

FILTER, Air

$390.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 207575GS

FILTER, Cartridge
(Superseded to 709906)

$85.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 204343GS

ASSEMBLY, Alternator

$7603.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 207019GS

ASSEMBLY, Rectifier

$697.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 207020GS

REGULATOR, Voltage

$1376.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 206120GS

ASSEMBLY, Fuel Valve
(Superseded to 316559GS)

$531.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton AA204802GS

COUPLER, Fuel System

$102.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 206626GS

VALVE, Ball 1/4

$73.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 206455GS

ASSEMBLY, Hose, Fuel

$248.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 205012GS

ELBOW, Rubber

$148.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 204841GS

TUBE, Inlet, Air

$186.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 204869GS

ELBOW, Rubber

$61.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 186649GS

DECAL, Oil Drain
(Superseded to 186640GS)

$68.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 205401GS

DECAL, Explosion Hazard

$7.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 204347GS

KIT, Manual

Note: (Not Illustrated)

$155.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 205051GS

MANUAL, Operator’s

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 205052GS

MANUAL, Install

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206992GS

MANUAL, Engine, PSI

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 841281

SWITCH, Oil Pressure

Note: (Not Illustrated)

$32.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 204751GS

SWITCH, Temperature

Note: (Not Illustrated)

$147.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198866GS

ASSEMBLY, Wall Plate
(Superseded to 313326GS)

Note: (Not Illustrated)

$47.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 205206GS

HOSE, Flex

Note: (Not Illustrated)

$49.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206943GS

ASSEMBLY, Oil Drain Hose

Note: (Not Illustrated)

$103.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198573GS

FUSE, ATO Type 15 Amp

Note: (Not Illustrated)

$2.99

$

In Stock, only 4 left!

0

--

Briggs & Stratton 203374GS

PAINT, Touch-Up, Continuum Charcoal, 1/2oz

Note: (Not Illustrated)

$18.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198811GS

PAINT, Touch-Up, Metallic Silver

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 205622GS

KIT, Hold Down Battery

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 207025GS

KIT, Decals, Service

Note: (Not Illustrated)

$38.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 199475GS

PAINT, Touchup, Spray, Silver, 12oz

Note: (Optional Accessory)

$46.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 203417GS

PAINT, Touchup, Spray, Continuum Charcoal, 12 oz

Note: (Optional Accessory)

$45.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 207244GS

SET, French Decals, Adhesive

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 207422GS

DECAL, Do Not Lift, French

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 6167

KIT, Maintenance

Note: (Optional Accessory)

$287.99

$

Usually ships in 2-12 days

0
