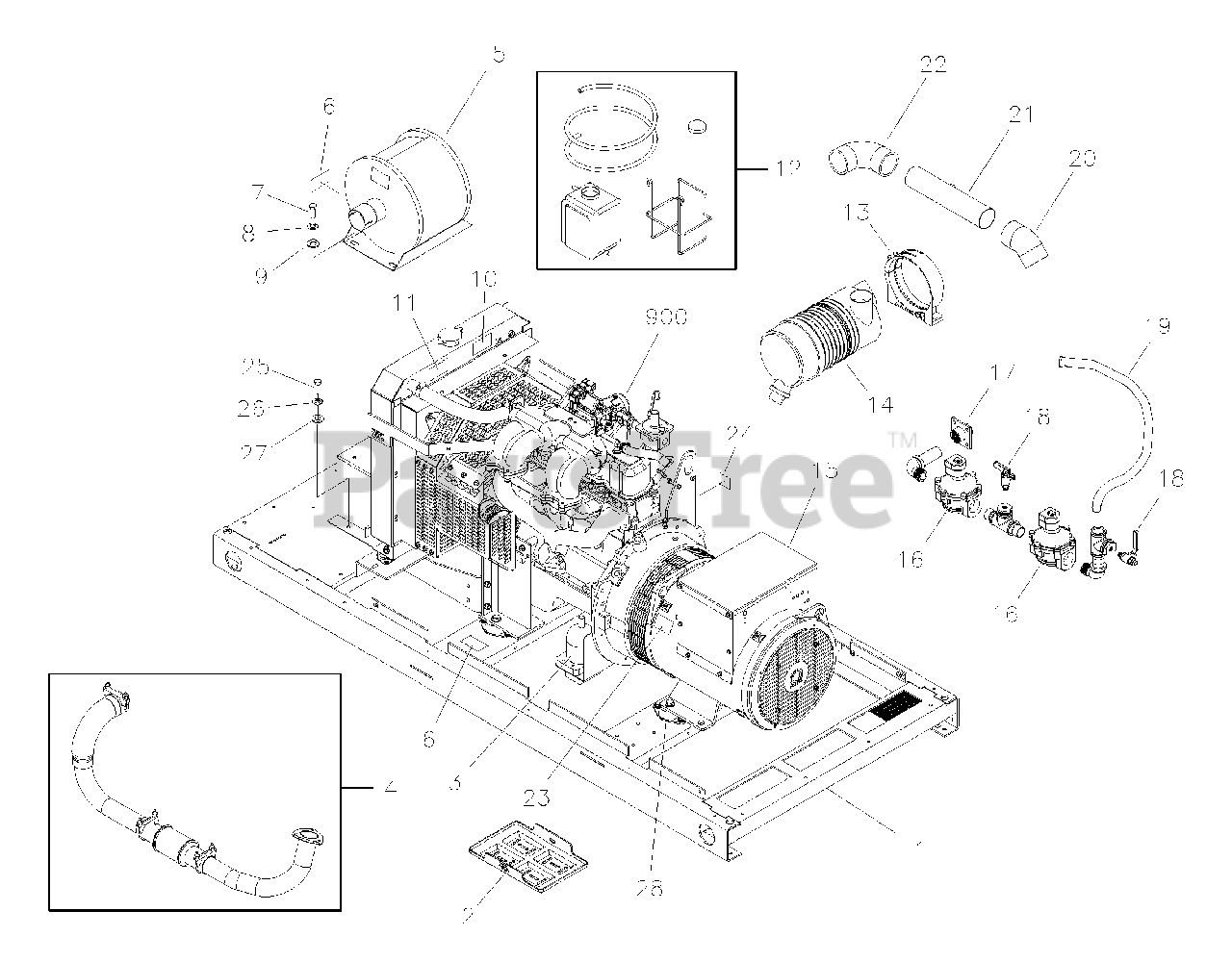

076004LP-0 - GE 30kW Home Standby Generator Main Unit Parts Diagram

GE 30kW Home Standby Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton AE207462GS

BASE

$

$

Currently unavailable

2

Briggs & Stratton 205623GS

TRAY, Battery

$24.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 206119GS

ASSEMBLY, Heater, Tank

$

$

Not available

4

Briggs & Stratton 204892GS

KIT, Exhaust

$446.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 204654GS

SILENCER, Muffler

$1590.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 205398GS

DECAL, Burn Hazard
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

7

-----

* CAPSCREW, Hex Head, 5/16-18 x 3/4

$

$

Not available

8

-----

* WASHER, Lock, 5/16 - M8

$

$

Not available

9

-----

* WASHER, Flat, 5/16 - M8

$

$

Not available

10

Briggs & Stratton 205396GS

DECAL, Warning Hot Coolant

$8.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 205399GS

DECAL, Warning Moving Parts
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 205226GS

KIT, Bottle Overflow

$45.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 205103GS

CLAMP, Air Cleaner

$48.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 204274GS

FILTER, Air

$390.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 207575GS

FILTER, Cartridge
(Superseded to 709906)

$88.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 204343GS

ALTERNATOR

$8097.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 207019GS

ASSEMBLY., Rectifier

$697.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 207020GS

REGULATOR, Voltage

$

$

Not available

16

Briggs & Stratton 206120GS

ASSEMBLY, Fuel Valve
(Superseded to 316559GS)

$531.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton AE204802GS

COUPLER, Fuel System

$

$

Currently unavailable

18

Briggs & Stratton 206626GS

VALVE, Ball 1/4

$

$

Not available

19

Briggs & Stratton 207914GS

ASSEMBLY, Hose, Fuel

$318.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 205012GS

ELBOW, Rubber

$158.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 204841GS

TUBE, Inlet, Air

$198.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 204869GS

ELBOW, Rubber

$65.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 205401GS

DECAL, Explosion Hazard

$8.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 186649GS

DECAL, Oil Drain
(Superseded to 186640GS)

$72.99

$

Usually ships in 2-12 days

0

25

-----

* CAPSCREW, Hex Head, 1/4-20 x 3/4

$

$

Not available

26

-----

* WASHER, Lock, 1/4 - M6

$

$

Not available

27

-----

* WASHER, 1/4

$

$

Not available

28

Briggs & Stratton 204653GS

MOUNT, Vibration

$26.99

$

Usually ships in 2-12 days

0

--

-----

*CAPSCREW, Hex Head, 1/2-13 x 30

$

$

Not available

--

-----

*WASHER, 1/2

$

$

Not available

--

-----

*NUT, 1/2-15

$

$

Not available

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 207649GS

KIT, Manual, ACC

Note: (Not Illustrated)

$

$

Currently unavailable

--

Briggs & Stratton 207635GS

MANUAL, Operator’s

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 207637GS

MANUAL, Install

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 206992GS

MANUAL, Engine, PSI

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 841281

SWITCH, Oil Pressure

Note: (Not Illustrated)

$35.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 204751GS

SWITCH, Temperature

Note: (Not Illustrated)

$147.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 207337GS

ASSEMBLY, Wall Plate

Note: (Not Illustrated)

$19.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 205206GS

HOSE, Flex

Note: (Not Illustrated)

$52.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206943GS

ASSEMBLY, Oil Drain Hose

Note: (Not Illustrated)

$103.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198573GS

FUSE, ATO Type 15 Amp

Note: (Not Illustrated)

$2.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 208345GS

PAINT, Touch-Up, Silver Pearlescent, 1/2oz

Note: (Not Illustrated)

$36.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208346GS

PAINT, Touch-Up, Silver, 1/2oz

Note: (Not Illustrated)

$19.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 205622GS

KIT, Hold Down Battery

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 208350GS

PAINT, Touch-Up, Spray, Silver, 12oz
(Superseded to 199475GS)

Note: (Optional Accessory)

$49.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208349GS

PAINT, Touch-Up, Spray,Silver Pearlescent, 12oz

Note: (Optional Accessory)

$

$

Not available

--

Briggs & Stratton 207244GS

SET, French Decals, Adhesive

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 207422GS

DECAL, Do Not Lift, French

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 6167

KIT, Maintenance

Note: (Optional Accessory)

$287.99

$

Usually ships in 2-12 days

0
