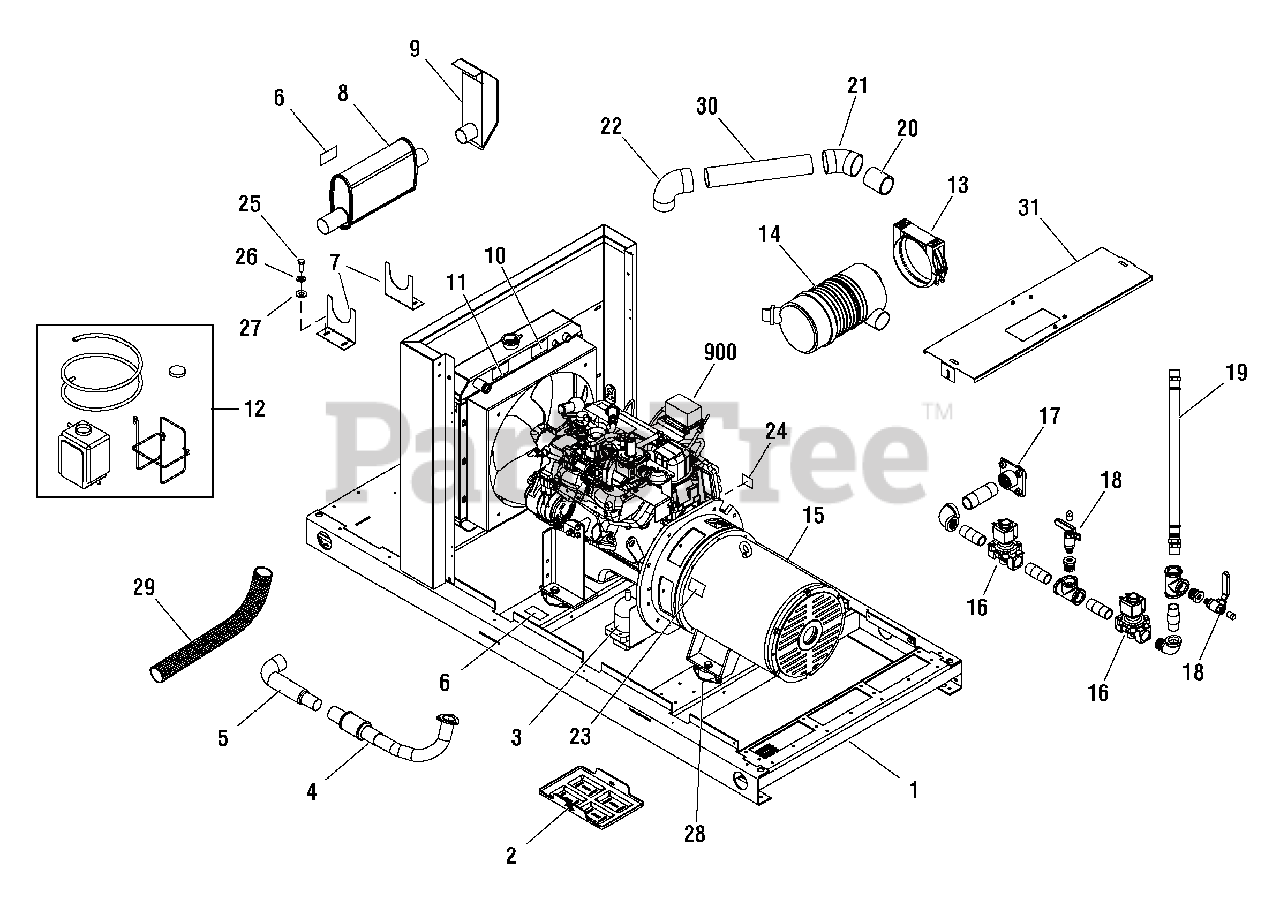

076020A-0 - Briggs & Stratton 30kW Home Standby Generator Main Unit (311340) Parts Diagram

30kW Home Standby Generator

Main Unit (311340) Parts Diagram

  • Title

1

Briggs & Stratton 310345GS

BASE
(Superseded to 316549GS)

$1899.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 205623GS

TRAY, Battery

$24.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 206119GS

HEATER

$

$

Not available

4

Briggs & Stratton 312101GS

EXHAUST

$180.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 311972GS

TUBE, Exhaust

$132.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 205398GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 310600GS

BRACKET, Muffler

$30.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 310582GS

MUFFLER
(Superseded to 707175)

$544.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 311354GS

DIFFUSER
(Superseded to 707175)

$544.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 205396GS

DECAL

$8.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 205399GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 205226GS

BOTTLE, Overflow

$45.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 205103GS

CLAMP

$48.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 204274GS

FILTER, Air

$390.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 207575GS

FILTER, Cartridge
(Superseded to 709906)

$88.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 207444GS

ALTERNATOR

$6594.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 194683GS

VALVE, Fuel

$411.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton AA310518GS

COUPLER

$148.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 206626GS

VALVE, Ball

$

$

Not available

19

Briggs & Stratton 310810GS

HOSE, Fuel

$84.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 312696GS

TUBE

$

$

Not available

21

Briggs & Stratton 206727GS

ELBOW

$39.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 206598GS

ELBOW

$99.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 205401GS

DECAL

$8.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 186649GS

DECAL
(Superseded to 186640GS)

$72.99

$

Usually ships in 2-12 days

0

25

-----

* CAPSCREW, Hex Head, 1/4-20 x 3/4

$

$

Not available

26

-----

* WASHER, Lock, 1/4-M6

$

$

Not available

27

-----

* WASHER, 1/4

$

$

Not available

28

Briggs & Stratton 204653GS

MOUNT, Vibration

$26.99

$

Usually ships in 2-12 days

0

--

-----

* CAPSCREW, Hex Head, 1/2-13 x 30

$

$

Not available

--

-----

* WASHER, 1/2

$

$

Not available

--

-----

* NUT, 1/2-13

$

$

Not available

29

Briggs & Stratton 206985GS

INSULATION

$85.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 312890GS

TUBE

$

$

Currently unavailable

31

Briggs & Stratton B209900GS

BRACKET

$76.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 208740GS

MANUAL, Operator's

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 311337GS

MANUAL, Install

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 312833GS

KIT, Manual ACC

Note: (Not Illustrated)

$290.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208538GS

DECAL, Spark
(Superseded to 705920)

Note: (Not Illustrated)

$33.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 841281

SWITCH, Oil Pressure

Note: (Not Illustrated)

$35.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 206533GS

SWITCH, Temp

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 206532GS

KIT, LED Remote
(Superseded to 313326GS)

Note: (Not Illustrated)

$49.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 205206GS

HOSE

Note: (Not Illustrated)

$52.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206943GS

HOSE, Drain

Note: (Not Illustrated)

$103.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198573GS

FUSE

Note: (Not Illustrated)

$2.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 203374GS

PAINT, Touch Up, Charcoal

Note: (Not Illustrated)

$19.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208346GS

PAINT, Touch Up, GE Silver

Note: (Not Illustrated)

$19.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 205622GS

KIT, Hardware, Battery

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 195642GS

DECAL, Rainproof

Note: (Not Illustrated)

$3.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208350GS

PAINT, Spray, GE Silver
(Superseded to 199475GS)

Note: (Optional Accessory)

$49.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 203417GS

PAINT, Spray, Charcoal

Note: (Optional Accessory)

$48.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 187315GS

DECAL, Do Not Lift

Note: (Optional Accessory)

$7.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6167

KIT, Maintenance

Note: (Optional Accessory)

$287.99

$

Usually ships in 2-12 days

0
