076054-00 - GE 48kW Liquid Cooled Home Standby Generator Engine - 5.0L (319096) Parts Diagram

GE 48kW Liquid Cooled Home Standby Generator

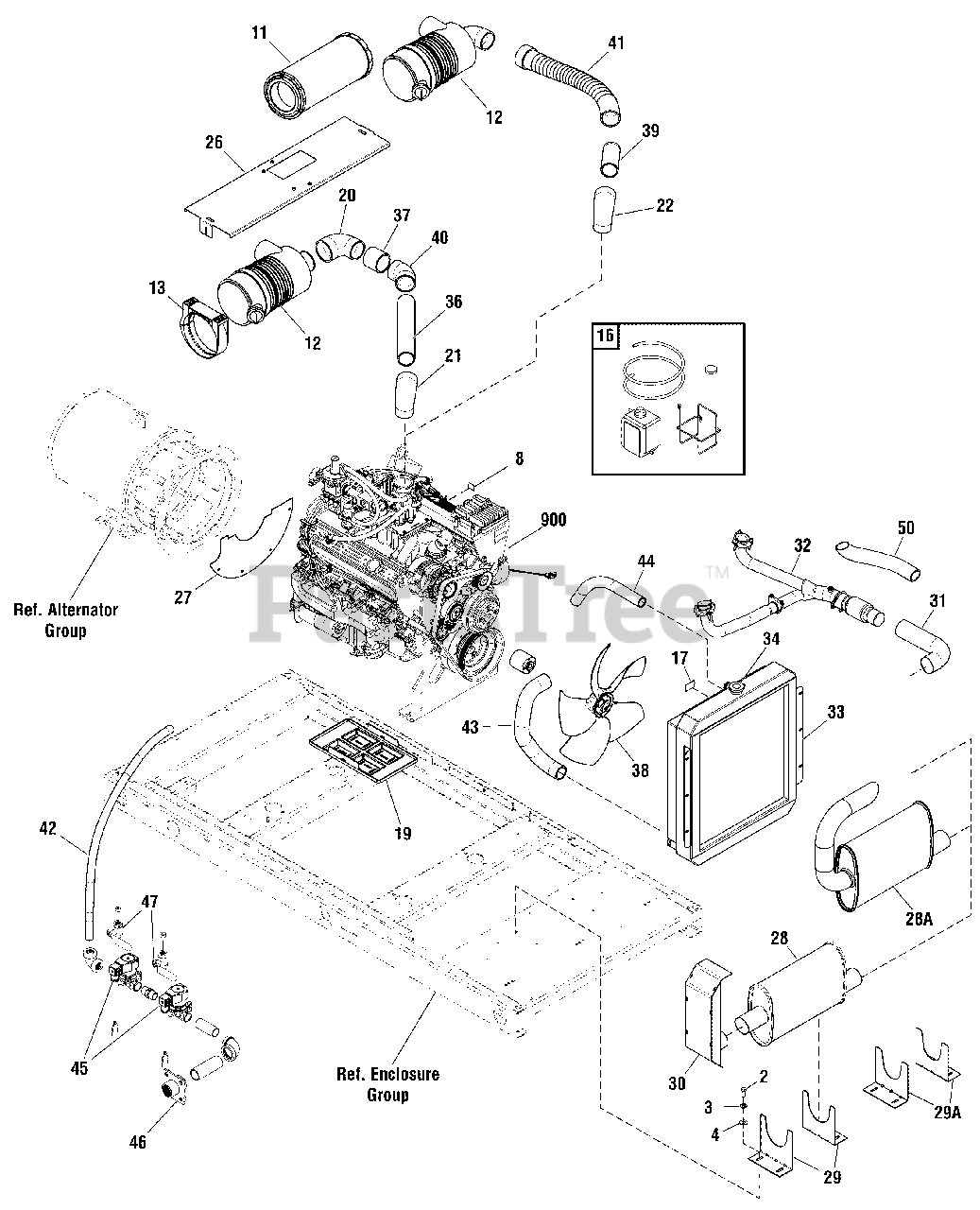

Engine - 5.0L (319096) Parts Diagram

  • Title

2

-----

* CAPSCREW, Hex Head, 1/4-20 x 3/4

$

$

Not available

3

-----

* WASHER, Flat, 1/2

$

$

Not available

4

-----

* WASHER, Lock, 1/4

$

$

Not available

8

Briggs & Stratton 186649GS

DECAL-OIL DRAIN
(Superseded to 186640GS)

$72.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 207576GS

FILTER-CARTRIDGE
(Superseded to 770029)

$94.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 204275GS

FILTER-AIR

Note: (Use before Serial No. 1021999075)

$425.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 706400

FILTER-AIR

Note: (Use on Serial No. 1021999075 and later)

$446.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 204868GS

CLAMP

$56.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 205226GS

BOTTLE-OVERFLOW

$45.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 205396GS

DECAL

$8.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 205623GS

TRAY-BATTERY

$24.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 206539GS

ELBOW

Note: (Use before Serial No. 1021999075)

$96.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 206598GS

ELBOW

Note: (Use before Serial No. 1021999075)

$99.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 204869GS

ELBOW

Note: (Use on Serial No. 1021999075 and later)

$65.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton B209900GS

BRACKET

$76.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton B310532GS

COVER-DUST

$

$

Not available

28

Briggs & Stratton 310582GS

MUFFLER
(Superseded to 707175)

Note: (Used before Serial No. 1022224081)

$544.99

$

Usually ships in 2-12 days

0

28A

Briggs & Stratton 707173

MUFFLER

Note: (Use on Serial No. 1022224081 and later)

$212.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 310600GS

BRACKET

Note: (Used before Serial No. 1022224081)

$30.99

$

Usually ships in 2-12 days

0

29A

Briggs & Stratton 707174

BRACKET

Note: (Use on Serial No. 1022224081 and later)

$13.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 311354GS

DIFFUSER
(Superseded to 707175)

Note: (Use with Ref. No 28 Only)

$544.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 311971GS

TUBE

$68.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 312096GS

EXHAUST
(Superseded to 706616)

$344.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 312322GS

RADIATOR

$1526.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 314566GS

CAP-RADIATOR

$43.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 314551GS

VALVE-DRAIN

$

$

Not available

36

Briggs & Stratton 312695GS

TUBE

Note: (Use before Serial No. 1021999075)

$

$

Not available

37

Briggs & Stratton 312696GS

TUBE

Note: (Use before Serial No. 1021999075)

$

$

Not available

38

Briggs & Stratton 312710GS

FAN

$225.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 706399

COUPLER

Note: (Use on Serial No. 1021999075 and later)

$28.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 313106GS

ELBOW

Note: (Use before Serial No. 1021999075)

$59.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 318639GS

TUBE

Note: (Use on Serial No. 1021999075 and later)

$95.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 310810GS

HOSE-FUEL

$84.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 313210GS

HOSE

$

$

Not available

44

Briggs & Stratton 313212GS

HOSE

$43.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 314281GS

VALVE-FUEL

$641.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton BC310518GS

COUPLING

$52.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 312788GS

VALVE-BALL

$17.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 206985GS

INSULATION

$85.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE-5L

$

$

Not available

--

Briggs & Stratton 310811GS

CABLE-BATTERY, NEG

Note: (Not Illustrated)

$21.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 310812GS

CABLE-BATTERY, POS

Note: (Not Illustrated)

$30.99

$

Usually ships in 2-12 days

0
