076072-00 - Briggs & Stratton 60kW Liquid Cooled Home Standby Generator Main Unit (317070) Parts Diagram

60kW Liquid Cooled Home Standby Generator

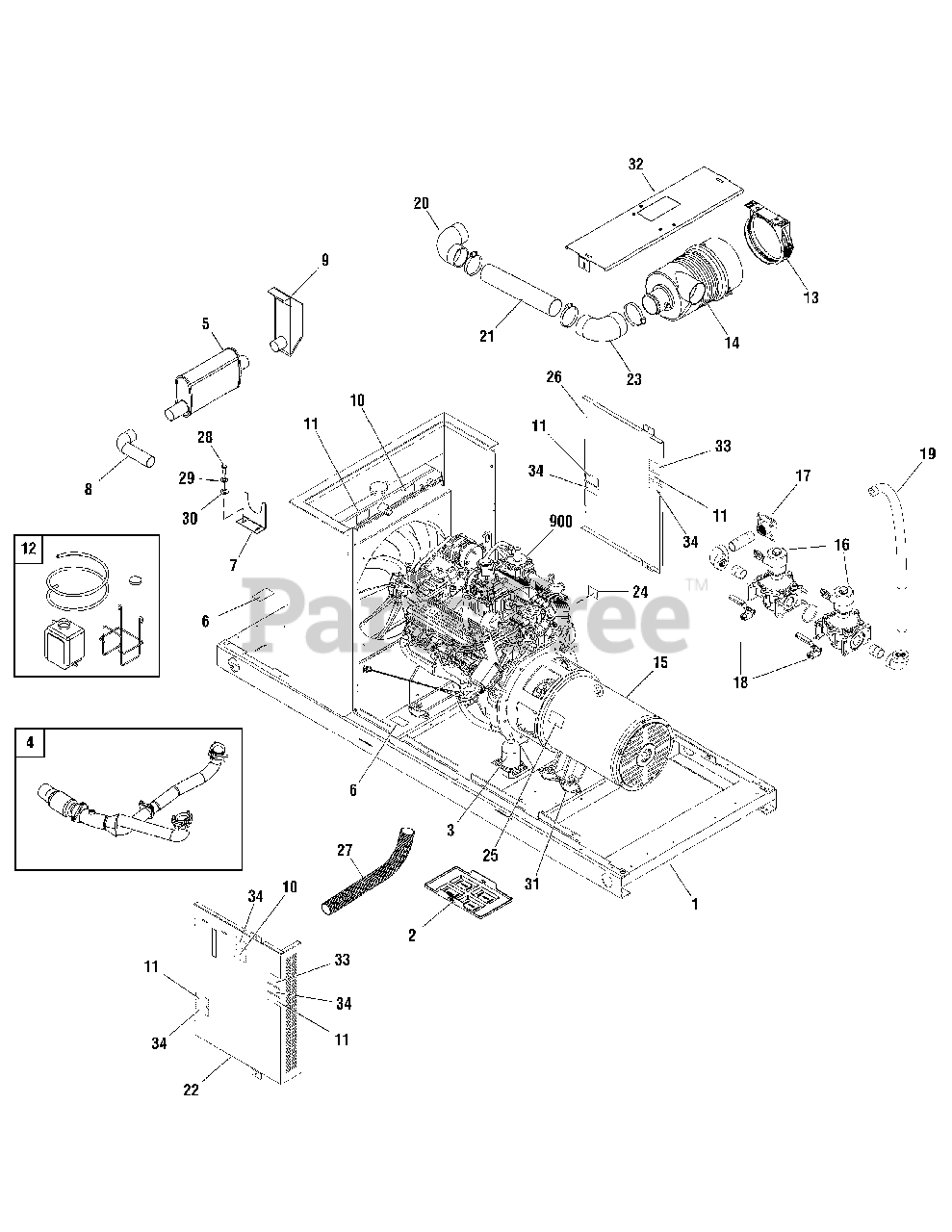

Main Unit (317070) Parts Diagram

  • Title

1

Briggs & Stratton 315631GS

BASE

$2828.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 205623GS

TRAY, Battery

$24.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 206119GS

HEATER

$

$

Not available

4

Briggs & Stratton 312096GS

KIT, Exhaust
(Superseded to 706616)

$344.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 310582GS

MUFFLER
(Superseded to 707175)

$544.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 205398GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 310600GS

BRACKET, Muffler

$30.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 311971GS

TUBE, Exhaust

$68.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 311354GS

DIFFUSER
(Superseded to 707175)

$544.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 205396GS

DECAL

$8.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 205399GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 205226GS

BOTTLE, Overflow

$45.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 204868GS

CLAMP

$56.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 204275GS

FILTER, Air

$425.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 207576GS

FILTER, Cartridge
(Superseded to 770029)

$94.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 314824GS

ALTERNATOR

$6307.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 316559GS

VALVE, Fuel

$531.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton AF310518GS

COUPLER

$99.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 312788GS

VALVE, Ball

$17.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 310809GS

HOSE, Fuel

$95.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 206727GS

ELBOW

$39.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 312695GS

TUBE

$

$

Not available

22

Briggs & Stratton 314302GS

PANEL

$308.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 206539GS

ELBOW

$96.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 186649GS

DECAL
(Superseded to 186640GS)

$72.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 205401GS

DECAL

$8.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 314301GS

PANEL

$117.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 206985GS

INSULATION

$85.99

$

Usually ships in 2-12 days

0

28

-----

* CAPSCREW, Hex Head, 1/4-20 x 3/4

$

$

Not available

29

-----

* WASHER, Lock, 1/4-M6

$

$

Not available

30

-----

* WASHER, Flat, 1/4

$

$

Not available

31

Briggs & Stratton 204653GS

MOUNT, Vibration

$26.99

$

Usually ships in 2-12 days

0

--

-----

* CAPSCREW, Hex Head, 1/2-13 x 3

$

$

Not available

--

-----

* WASHER, 1/2

$

$

Not available

--

-----

* NUT, 1/2-13

$

$

Not available

32

Briggs & Stratton B209900GS

BRACKET

$76.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 205392GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 205398GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 317818GS

KIT, Manual & Accessories

Note: (Not Illustrated)

$244.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 316943GS

MANUAL, Operator

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 316940GS

MANUAL, Install

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 208538GS

DECAL, Warning Spark
(Superseded to 705920)

Note: (Not Illustrated)

$33.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 315324GS

KIT, LED Remote

Note: (Not Illustrated)

$41.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195200GS

HANG TAG, Attn. Standby Equipment

Note: (Not Illustrated)

$2.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 205206GS

HOSE, Flex

Note: (Not Illustrated)

$52.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206944GS

HOSE, Drain

Note: (Not Illustrated)

$51.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208346GS

PAINT, Touch Up, GE SIlver

Note: (Not Illustrated)

$19.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 203374GS

PAINT, Touch Up, Charcoal

Note: (Not Illustrated)

$19.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 205622GS

KIT, Hardware, Battery

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 208350GS

PAINT, Spray, GE Silver
(Superseded to 199475GS)

Note: (Optional Accessory)

$49.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 203417GS

PAINT, Spray, Charcoal

Note: (Optional Accessory)

$48.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 187315GS

DECAL, Do Not Lift

Note: (Optional Accessory)

$7.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6168

KIT, Maintenance

Note: (Optional Accessory)

$411.99

$

Usually ships in 2-12 days

0
