076107-02 - Briggs & Stratton 25kW Liquid Cooled Home Standby Generator with 200 Amp Transfer Switch Engine Group Parts Diagram

25kW Liquid Cooled Home Standby Generator with 200 Amp Transfer Switch

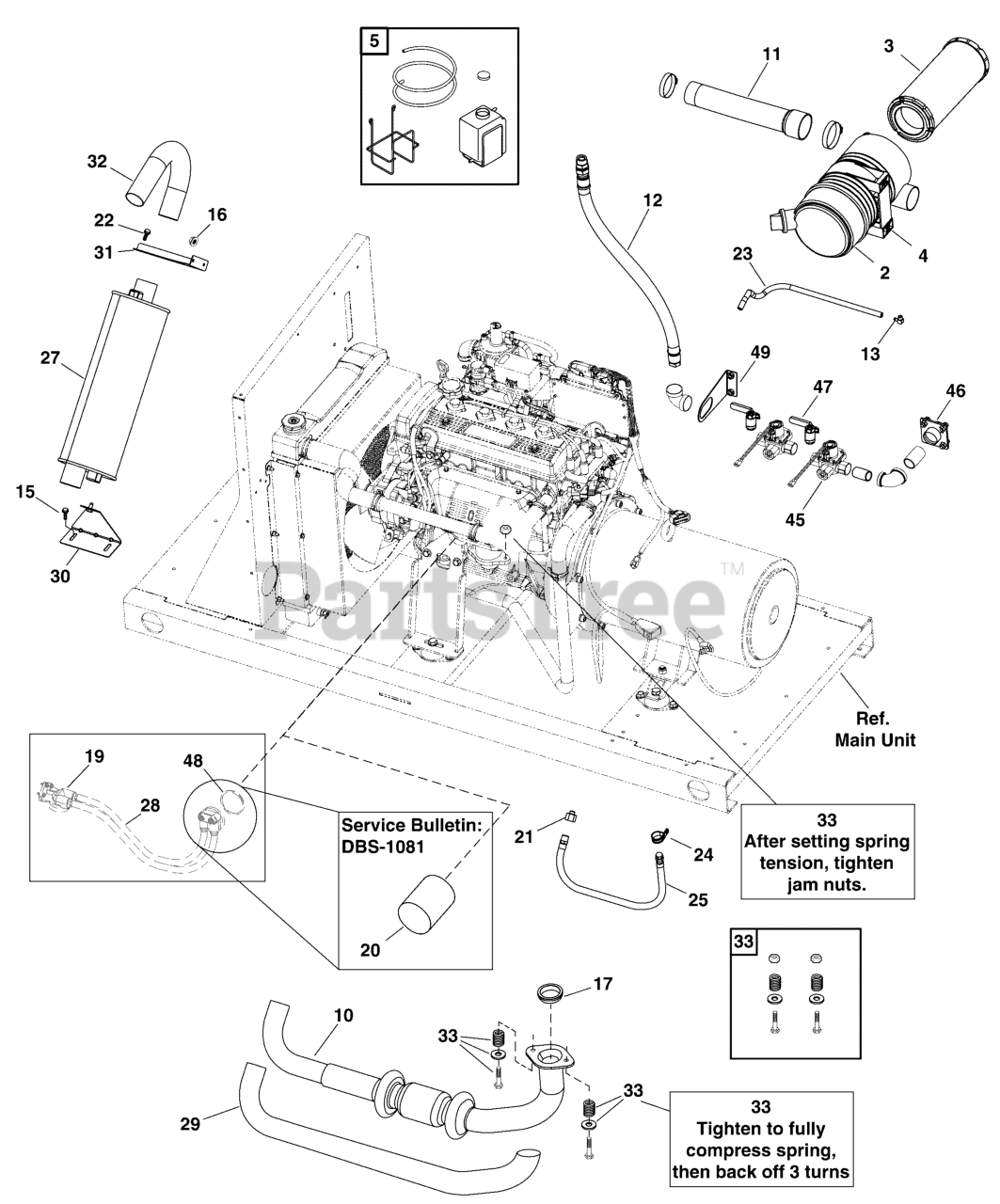

Engine Group Parts Diagram

  • Title

2

Briggs & Stratton 204274GS

ASSEMBLY, Air Cleaner

Note: (Includes Ref. No. 3)

$390.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 207575GS

FILTER, Cartridge
(Superseded to 709906)

$85.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 205103GS

CLAMP, Air Cleaner

$46.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 205226GS

KIT, Bottle Overflow

$42.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 317579GS

EXHAUST

$356.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 317755GS

TUBE

$62.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 318595GS

HOSE-FUEL

$88.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 319774GS

FITTING

$19.99

$

Usually ships in 2-12 days

0

15

BOLT, Flange, M6 X 1 X 20

Note: (*See footnote)

$

$

Not available

16

* NUT, M6, Flange Head, Lock

Note: (*See footnote)

$

$

Not available

17

Briggs & Stratton 704268

GASKET

$24.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 704267

ADAPTER-OIL FILTER
(Superseded to 692513)

Note: (No longer serviceable: Refer to Service Bulletin DBS-1081.)

$15.99

$

In Stock, Qty 6

0

20

Briggs & Stratton 771863

FILTER, Oil

$35.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 704337

ADAPTER

$18.99

$

Usually ships in 2-12 days

0

22

SCREW, 5/16-18 x 5/8

Note: (*See footnote)

$

$

Not available

23

Briggs & Stratton 704269

HOSE, FUEL

$11.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 704270

CLAMP

$7.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 704271

HOSE-OIL DRAIN

$20.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 704272

MUFFLER

$269.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 704274

HOSE

Note: (No longer serviceable: Refer to Service Bulletin DBS-1081.)

$

$

Currently unavailable

29

Briggs & Stratton 206985GS

SLEEVE, Insulation

$80.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 704275

BRACKET

$18.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 704276

BRACKET

$14.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 704277

DIFFUSER

$40.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 707925

KIT-HARDWARE, EXHAUST

Note: (Includes all items shown in box.)

$25.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 314110GS

VALVE, Fuel
(Superseded to 706432)

Note: (Use on Serial No. 1022125702 and earlier)

$353.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 706433

SOLENOID-GAS FUEL

Note: (Use after Serial No. 1022125702)

$104.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton BC310518GS

COUPLING

$49.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 312788GS

BALL, Valve, 1/8

$16.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 709901

O-RING

Note: (No longer serviceable: Refer to Service Bulletin DBS-1081.)

$8.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 84006780

BRACKET, Fuel Solenoid

$15.99

$

Usually ships in 2-12 days

0
