076130-04 - Briggs & Stratton 35kW Liquid Cooled Home Standby Generator Circuit Breaker and Accessories Group Parts Diagram

35kW Liquid Cooled Home Standby Generator

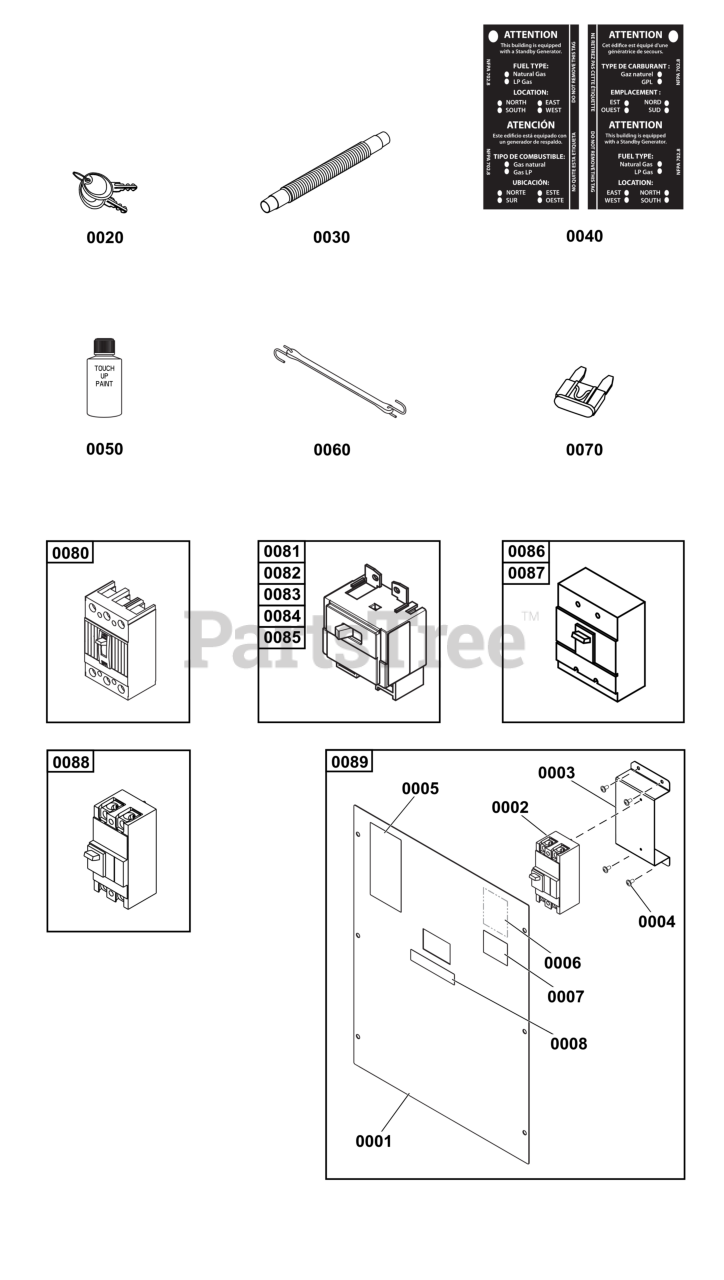

Circuit Breaker and Accessories Group Parts Diagram

  • Title

0020

Briggs & Stratton 207652GS

SET, Latch Key, Plain

$19.99

$

In Stock, only 2 left!

0

0030

Briggs & Stratton 205206GS

FUEL HOSE, Flexible

$49.99

$

Usually ships in 2-12 days

0

0040

Briggs & Stratton 706988

HANG TAG-ATTN. STANDBY EQUIPMENT

$6.99

$

Usually ships in 2-12 days

0

0050

Briggs & Stratton 319693GS

PAINT, Touch Up, Cont. Charcoal, Texture

$7.99

$

Usually ships in 2-12 days

0

0060

Briggs & Stratton 316869GS

STRAP-BATTERY TIEDOWN

$7.99

$

Usually ships in 2-12 days

0

0070

Briggs & Stratton 198573GS

FUSE, Auto Type, 15 Amp

$2.99

$

In Stock, only 2 left!

0

0080

Briggs & Stratton 319607GS

BREAKER-CIRCUIT, 175A, 2 Pole

Note: (Use on 076130-00, 076130-02, 076158-00, 076158-02)

$137.99

$

Usually ships in 2-12 days

0

0081

Briggs & Stratton 209069GS

BREAKER-CIRCUIT, 200A, 2 Pole
(Superseded to 192065GS)

Note: (Use on 076150-02, 076150-03, 076150-04, 076850-00, 076850-01)

$207.99

$

Usually ships in 2-12 days

0

0082

Briggs & Stratton 209168GS

CIRCUIT BREAKER, 150A, 2 Pole

Note: (Use on 076138-00, 076138-01, 076148-00, 076148-01, 076840-01)

$246.99

$

Usually ships in 2-12 days

0

0083

Briggs & Stratton 204144GS

BREAKER, Circuit, 150A
(Superseded to 209168GS)

Note: (Use on 076130-03, 076130-04, 076830-03, 076830-04)

$246.99

$

Usually ships in 2-12 days

0

0084

Briggs & Stratton 319607GS

BREAKER-CIRCUIT, 175A, 2 Pole

Note: (Use on 076140-03, 076830-00, 076830-02, 076840-00)

$137.99

$

Usually ships in 2-12 days

0

0085

Briggs & Stratton 313351GS

CIRCUIT BREAKER, 225A, 2 Pole

Note: (Use on 076150-00, 076150-01, 076168-00, 076168-02)

$129.99

$

Usually ships in 2-12 days

0

0086

Briggs & Stratton 315550GS

BREAKER-CIRCUIT, 300A, 2 Pole

Note: (Use on 076860-00)

$1072.99

$

Usually ships in 2-12 days

0

0087

Briggs & Stratton 772305

BREAKER, Circuit, 250A, 2 Pole

Note: (Use on 076160-05, 076860-01)

$

$

Not available

0088

Briggs & Stratton 84011526

BREAKER, Circuit, 250A, 2 Pole

Note: (Use on 076160-05, 076860-01)

$

$

Currently unavailable

0089

Briggs & Stratton 84011532

KIT, Circuit Breaker

Note: (Order when Ref. # 0087 is NLA) (Includes Ref. Nos. 0001, 0002, 0003, 0004, 0005, 0006, 0007, 0008)

$

$

Currently unavailable

0001

COVER

$

$

Not available

0002

Briggs & Stratton 84011526

BREAKER, Circuit, 250A, 2 Pole

$

$

Currently unavailable

0003

BRACKET

$

$

Not available

0004

Briggs & Stratton 5025299X4SM

SCREW, ALLEN HEAD 1/4-20 X .500 ZINC PHOS

$4.99

$

In Stock, only 3 left!

0

0005

DECAL-WARNING, OPERATOR MANUAL

$

$

Not available

0006

DECAL-WARNING, FUSE

$

$

Not available

0007

DECAL, Warning

$

$

Not available

0008

DECAL-DISCONNECT

$

$

Not available

--

Briggs & Stratton 319677GS

PAINT, Spray, Cont. Charcoal, Texture

Note: (Optional Accessory - Not Included)

$39.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6428

KIT, Communication Cable

Note: (Optional Accessory - Not Included)

$

$

Currently unavailable

--

Briggs & Stratton 6429

KIT-COMMUNICATION CABLE

Note: (Optional Accessory - Not Included)

$

$

Currently unavailable

--

Briggs & Stratton 6514

KIT, Maintenance

Note: (Optional Accessory - Not Included)

$465.99

$

Usually ships in 2-12 days

0
