076145-02 - Briggs & Stratton 35kW Liquid Cooled Home Standby Generator Engine Group - 3.0L Parts Diagram

35kW Liquid Cooled Home Standby Generator

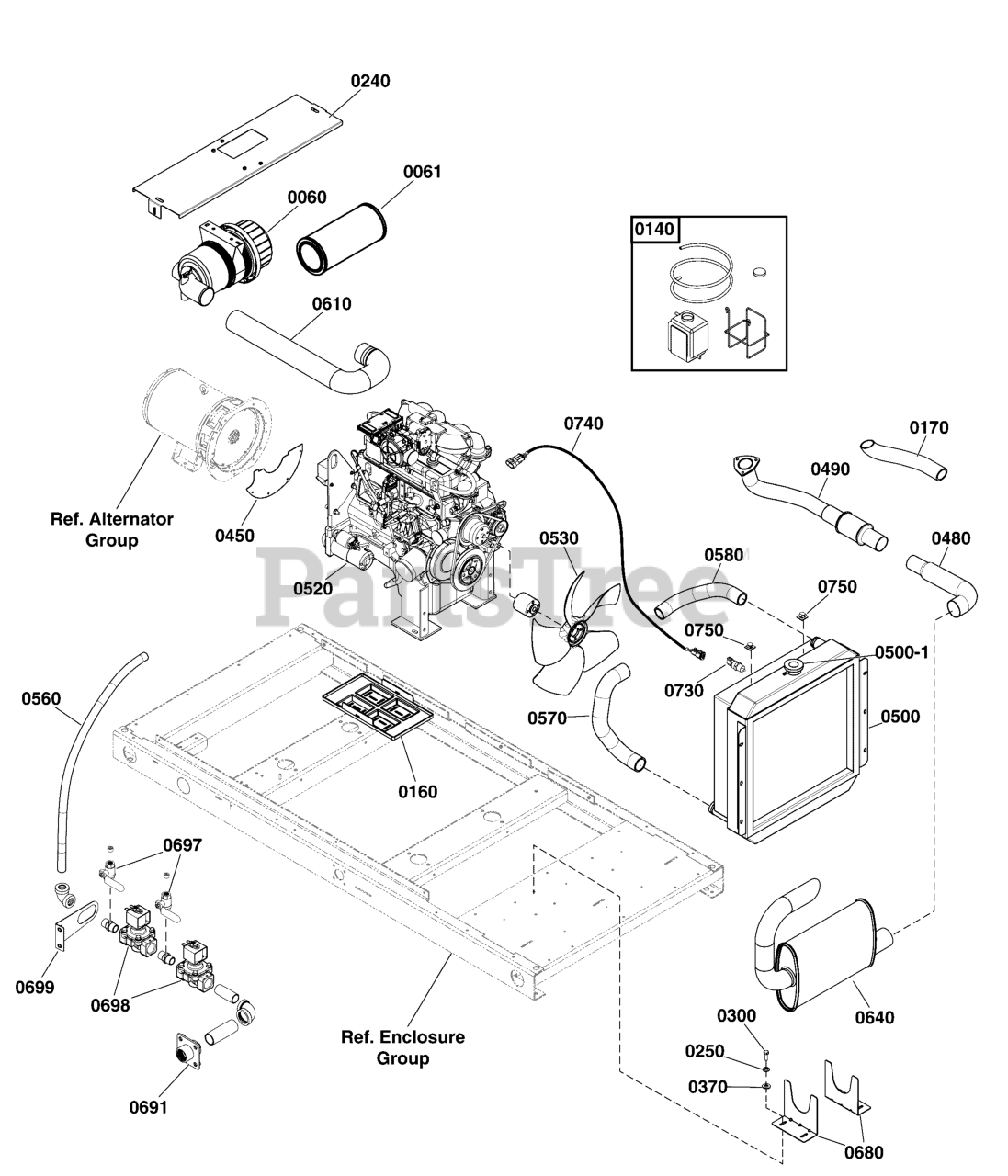

Engine Group - 3.0L Parts Diagram

  • Title

0060

Briggs & Stratton 709904

AIR CLEANER

$215.99

$

Usually ships in 2-12 days

0

0061

Briggs & Stratton 709906

FILTER-CARTRIDGE

$85.99

$

Usually ships in 2-12 days

0

0140

Briggs & Stratton 205226GS

KIT, Bottle Overflow

$42.99

$

Usually ships in 2-12 days

0

0160

Briggs & Stratton 205623GS

TRAY, Battery

$22.99

$

Usually ships in 2-12 days

0

0170

Briggs & Stratton 206985GS

SLEEVE, Insulation

$80.99

$

Usually ships in 2-12 days

0

0240

Briggs & Stratton 708758

BRACKET-AIR CLEANER

$143.99

$

Usually ships in 2-12 days

0

0250

Briggs & Stratton 83896GS

WSHR, 1/4-M6, SS, LOCK

$1.99

$

Usually ships in 2-12 days

0

0300

HHCS, 1/4-20 X 3/4 SS

Note: (*See footnote)

$

$

Not available

0370

WASHER, 1/4, SS

Note: (*See footnote)

$

$

Not available

0450

Briggs & Stratton B310532GS

COVER-DUST

$22.99

$

Usually ships in 2-12 days

0

0460

Briggs & Stratton 310811GS

CABLE-BATTERY, BLACK

Note: (Not Illustrated)

$20.99

$

Usually ships in 2-12 days

0

0470

Briggs & Stratton 310812GS

CABLE-BATTERY, POS

Note: (Not Illustrated)

$26.99

$

Usually ships in 2-12 days

0

0480

Briggs & Stratton 311972GS

TUBE, Exhaust

$124.99

$

Usually ships in 2-12 days

0

0490

Briggs & Stratton 312101GS

KIT, Exhaust

$180.99

$

Usually ships in 2-12 days

0

0500

Briggs & Stratton 312321GS

RADIATOR

$1012.99

$

Usually ships in 2-12 days

0

0500-1

Briggs & Stratton 314566GS

CAP-RADIATOR

$41.99

$

Usually ships in 2-12 days

0

0520

ENGINE, 3.0L

$

$

Not available

0530

Briggs & Stratton 312708GS

FAN

$155.99

$

Usually ships in 2-12 days

0

0560

Briggs & Stratton 310810GS

HOSE, Fuel

$79.99

$

Usually ships in 2-12 days

0

0570

Briggs & Stratton 770034

HOSE

$31.99

$

Usually ships in 2-12 days

0

0580

Briggs & Stratton 709516

HOSE

$50.99

$

Usually ships in 2-12 days

0

0610

Briggs & Stratton 770035

TUBE-INTAKE

$218.99

$

Usually ships in 2-12 days

0

0640

Briggs & Stratton 707173

MUFFLER

$207.99

$

Usually ships in 2-12 days

0

0680

Briggs & Stratton 707174

BRACKET

$12.99

$

Usually ships in 2-12 days

0

0691

Briggs & Stratton BC310518GS

COUPLING

$49.99

$

Usually ships in 2-12 days

0

0697

Briggs & Stratton 312788GS

BALL, Valve, 1/8

$16.99

$

Usually ships in 2-12 days

0

0698

Briggs & Stratton 706433

SOLENOID-GAS FUEL

$104.99

$

Usually ships in 2-12 days

0

0699

Briggs & Stratton 84006780

BRACKET, Fuel Solenoid

$15.99

$

Usually ships in 2-12 days

0

0710

Briggs & Stratton 192669GS

Clamp, Hose, "J"

Note: (Not Illustrated)

$2.49

$

Usually ships in 2-12 days

0

0730

Briggs & Stratton 708761

SENSOR-LOW COOLANT

$161.99

$

Usually ships in 2-12 days

0

0740

Briggs & Stratton 708762

HARNESS-WIRE, LOW COOLANT SENSOR

$52.99

$

Usually ships in 2-12 days

0

0750

Briggs & Stratton 197355GS

CLIP, Latching Wire

$2.49

$

Usually ships in 2-12 days

0

0770

Briggs & Stratton 708763

HARNESS-WIRE

Note: (Not Illustrated)

$20.99

$

Usually ships in 2-12 days

0
