076178-00 - Briggs & Stratton 20kW Liquid Cooled Home Standby Generator Control Panel Parts Diagram

20kW Liquid Cooled Home Standby Generator

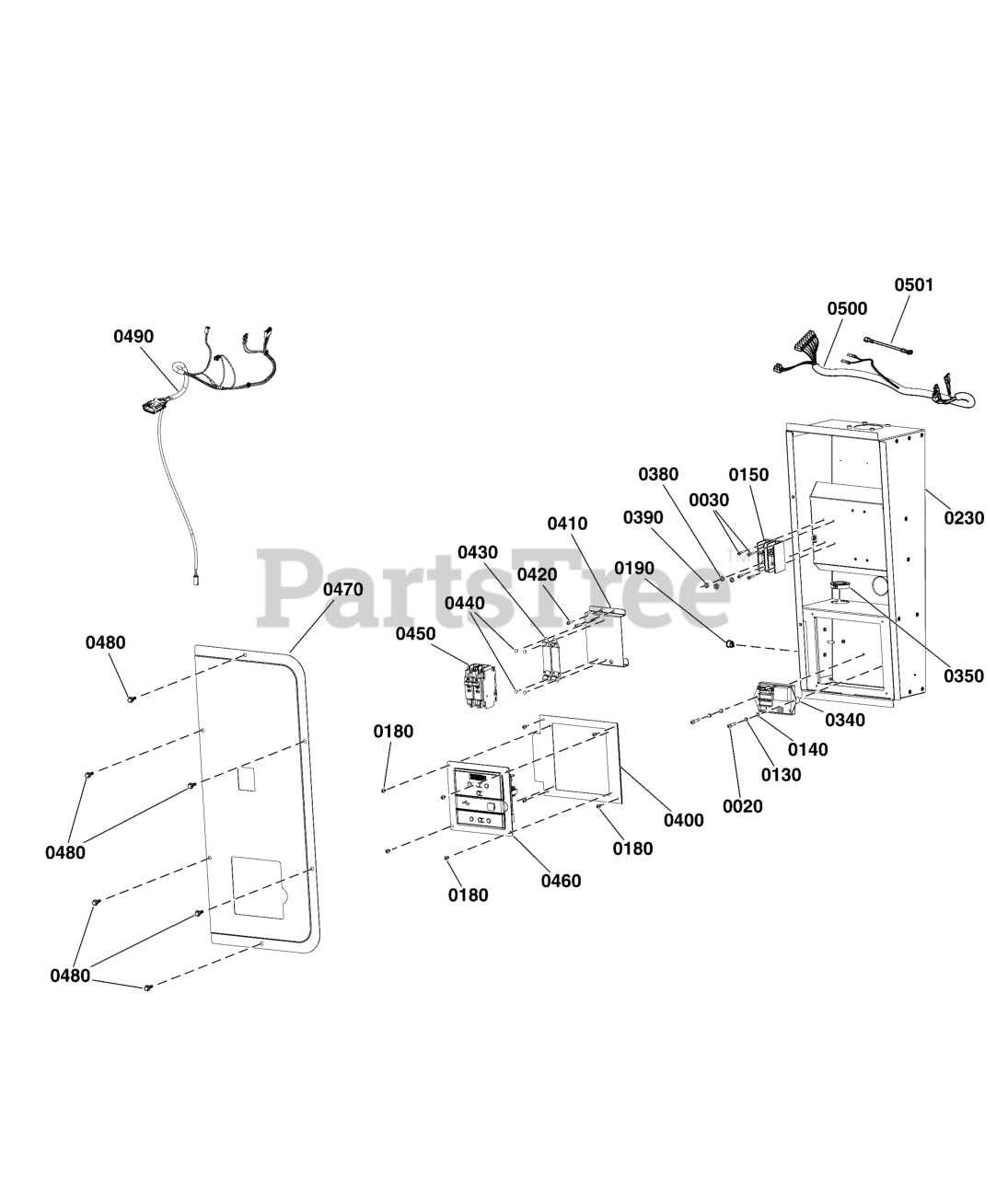

Control Panel Parts Diagram

  • Title

0020

Briggs & Stratton 79224

PPHMS, M5 - 0.8 x 30mm

Note: (*See footnote)

$

$

Not available

0030

Briggs & Stratton 80077

M4-0.7 x 20mm Pan Head Machine Screw
(Superseded to 80077GS)

Note: (*See footnote)

$4.49

$

Usually ships in 2-12 days

0

0130

WASHER, M5, Lock, Split SS

Note: (*See footnote)

$

$

Not available

0140

WASHER, M5, Flat SS

Note: (*See footnote)

$

$

Not available

0150

Briggs & Stratton 208365GS

BLOCK, Terminal

$14.99

$

In Stock, only 1 left!

0

0180

SCREW, 10-16 X 3/8

Note: (*See footnote)

$

$

Not available

0190

Briggs & Stratton 315551GS

SWITCH, Rocker

$5.99

$

Usually ships in 2-12 days

0

0230

Briggs & Stratton 707900

BOX-CONTROL PANEL

$348.99

$

Usually ships in 2-12 days

0

0340

Briggs & Stratton 209856GS

REGULATOR, Voltage

$177.99

$

Usually ships in 2-12 days

0

0350

Briggs & Stratton 707901

BUSHING

$3.49

$

Usually ships in 2-12 days

0

0380

WASHER, Lock, Split, 1/4"

Note: (*See footnote)

$

$

Not available

0390

Briggs & Stratton 85889

NUT, 1/4-20, SS
(Superseded to 85889GS)

Note: (*See footnote)

$2.99

$

Usually ships in 2-12 days

0

0400

Briggs & Stratton 707902

BRACKET-CONTROL PANEL

$34.99

$

Usually ships in 2-12 days

0

0410

Briggs & Stratton 772329

BRACKET, Breaker

$

$

Not available

0420

SCREW, 8-32 X .625, CLR ZNC

Note: (*See footnote)

$

$

Not available

0430

BRCKT, MNTNG, BRKR, CRCT

Note: (*See footnote)

$

$

Not available

0440

RIVET, Semi Tubular, 5/32 X 1/4

Note: (*See footnote)

$

$

Not available

0450

Briggs & Stratton 772326

BREAKER, Circuit, 90A

$142.99

$

Usually ships in 2-12 days

0

0460

Briggs & Stratton 319891GS

CONTROL PANEL
(Superseded to 315423GS)

$414.99

$

In Stock, only 1 left!

0

0470

Briggs & Stratton 772328

COVER, Box, Breaker

$

$

Not available

0480

BOLT, Flange, M6 X 1 X 20

$

$

Not available

0490

Briggs & Stratton 772273

HARNESS, Wire

$111.99

$

Usually ships in 2-12 days

0

0500

Briggs & Stratton 314639GS

HARNESS-WIRE

Note: (50 Hz Models: Order with Ref. # 501)

$76.99

$

Usually ships in 2-12 days

0

0501

Briggs & Stratton 84002210

JUMPER, Wire

Note: (50 Hz Models Only)

$5.99

$

Usually ships in 2-12 days

0
