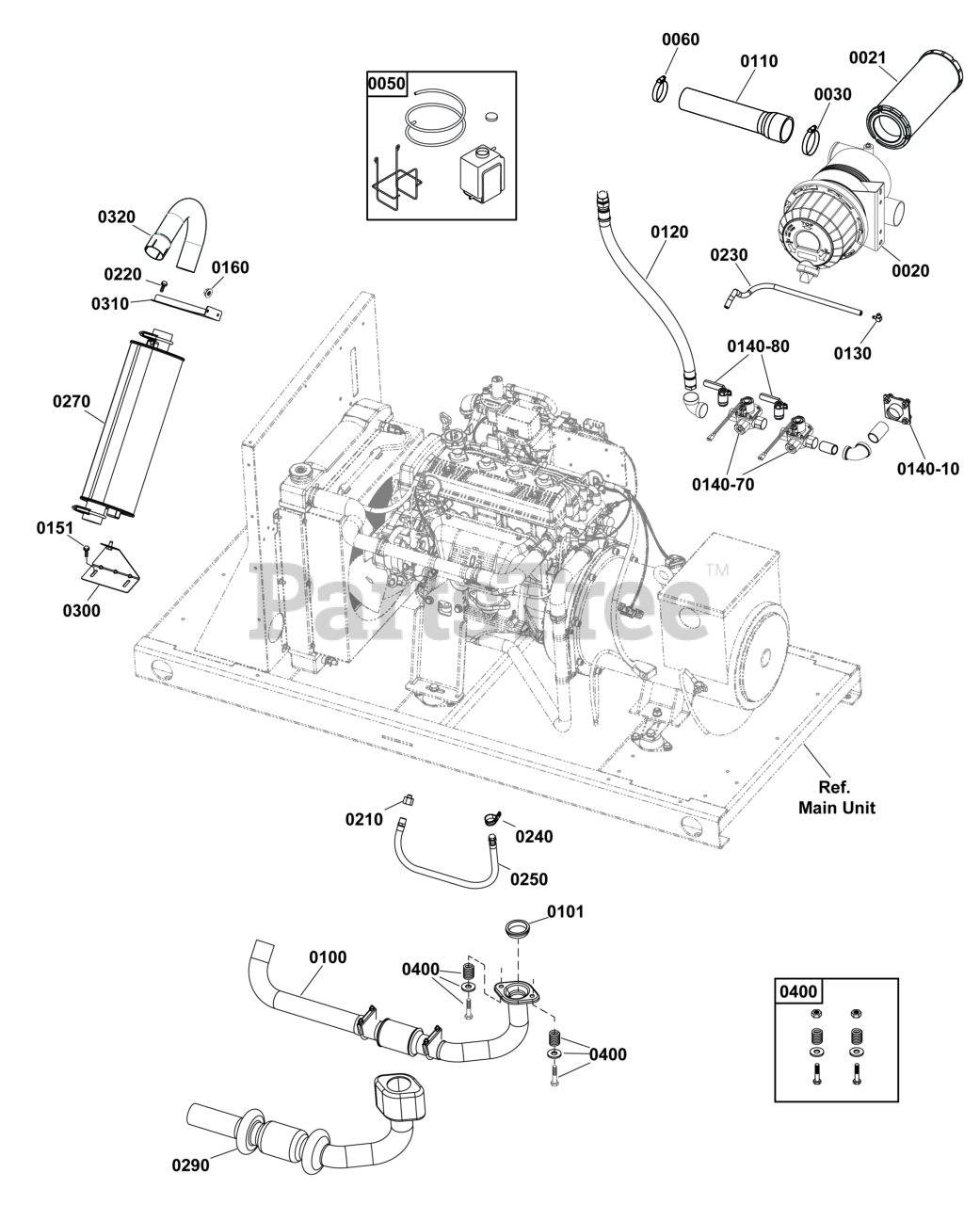

076191-02 - Briggs & Stratton 30kW Liquid Cooled Home Standby Generator Engine Group Parts Diagram

30kW Liquid Cooled Home Standby Generator

Engine Group Parts Diagram

  • Title

0020

Briggs & Stratton 709904

AIR CLEANER

$221.99

$

Usually ships in 2-12 days

0

0021

Briggs & Stratton 709906

CARTRIDGE-AIR CLEANER

$88.99

$

In Stock, only 2 left!

0

0030

Briggs & Stratton 205016GS

CLAMP, 3.5"

$16.99

$

Usually ships in 2-12 days

0

0050

Briggs & Stratton 205226GS

KIT, Bottle Overflow

$45.99

$

Usually ships in 2-12 days

0

0060

Briggs & Stratton 84007135

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

0100

Briggs & Stratton 317579GS

EXHAUST

$380.99

$

Usually ships in 2-12 days

0

0101

Briggs & Stratton 704268

GASKET

$26.99

$

Usually ships in 2-12 days

0

0110

Briggs & Stratton 770546

TUBE

$60.99

$

Usually ships in 2-12 days

0

0120

Briggs & Stratton 318595GS

HOSE-FUEL

$94.99

$

Usually ships in 2-12 days

0

0130

Briggs & Stratton 319774GS

FITTING

$20.99

$

Usually ships in 2-12 days

0

0140-10

Briggs & Stratton BC310518GS

COUPLING

$52.99

$

Usually ships in 2-12 days

0

0140-70

Briggs & Stratton 706433

SOLENOID-GAS FUEL

$111.99

$

Usually ships in 2-12 days

0

0140-80

Briggs & Stratton 312788GS

BALL, Valve, 1/8

$17.99

$

Usually ships in 2-12 days

0

0151

* BOLT, Flange, M6 X 1 X 20

Note: (*See footnote)

$

$

Not available

0160

* NUT, M6, Flange Head, Lock

Note: (*See footnote)

$

$

Not available

0210

Briggs & Stratton 704337

ADAPTER

$19.99

$

Usually ships in 2-12 days

0

0220

Briggs & Stratton 706348

BOLT

$4.49

$

Usually ships in 2-12 days

0

0230

Briggs & Stratton 704269

HOSE, FUEL

$12.99

$

Usually ships in 2-12 days

0

0240

Briggs & Stratton 704270

CLAMP

$7.49

$

Usually ships in 2-12 days

0

0250

Briggs & Stratton 704271

HOSE-OIL DRAIN

$21.99

$

Usually ships in 2-12 days

0

0270

Briggs & Stratton 704272

MUFFLER

$276.99

$

Usually ships in 2-12 days

0

0290

Briggs & Stratton 206985GS

SLEEVE, Insulation

$85.99

$

Usually ships in 2-12 days

0

0300

Briggs & Stratton 704275

BRACKET

$19.99

$

Usually ships in 2-12 days

0

0310

Briggs & Stratton 704276

BRACKET

$15.99

$

Usually ships in 2-12 days

0

0320

Briggs & Stratton 704277

DIFFUSER

$43.99

$

Usually ships in 2-12 days

0

0400

Briggs & Stratton 707925

KIT-HARDWARE, EXHAUST

Note: (Includes all items shown in box.)

$26.99

$

Usually ships in 2-12 days

0
