076198-00 - Briggs & Stratton 25kW Liquid Cooled Home Standby Generator Control Panel Parts Diagram

25kW Liquid Cooled Home Standby Generator

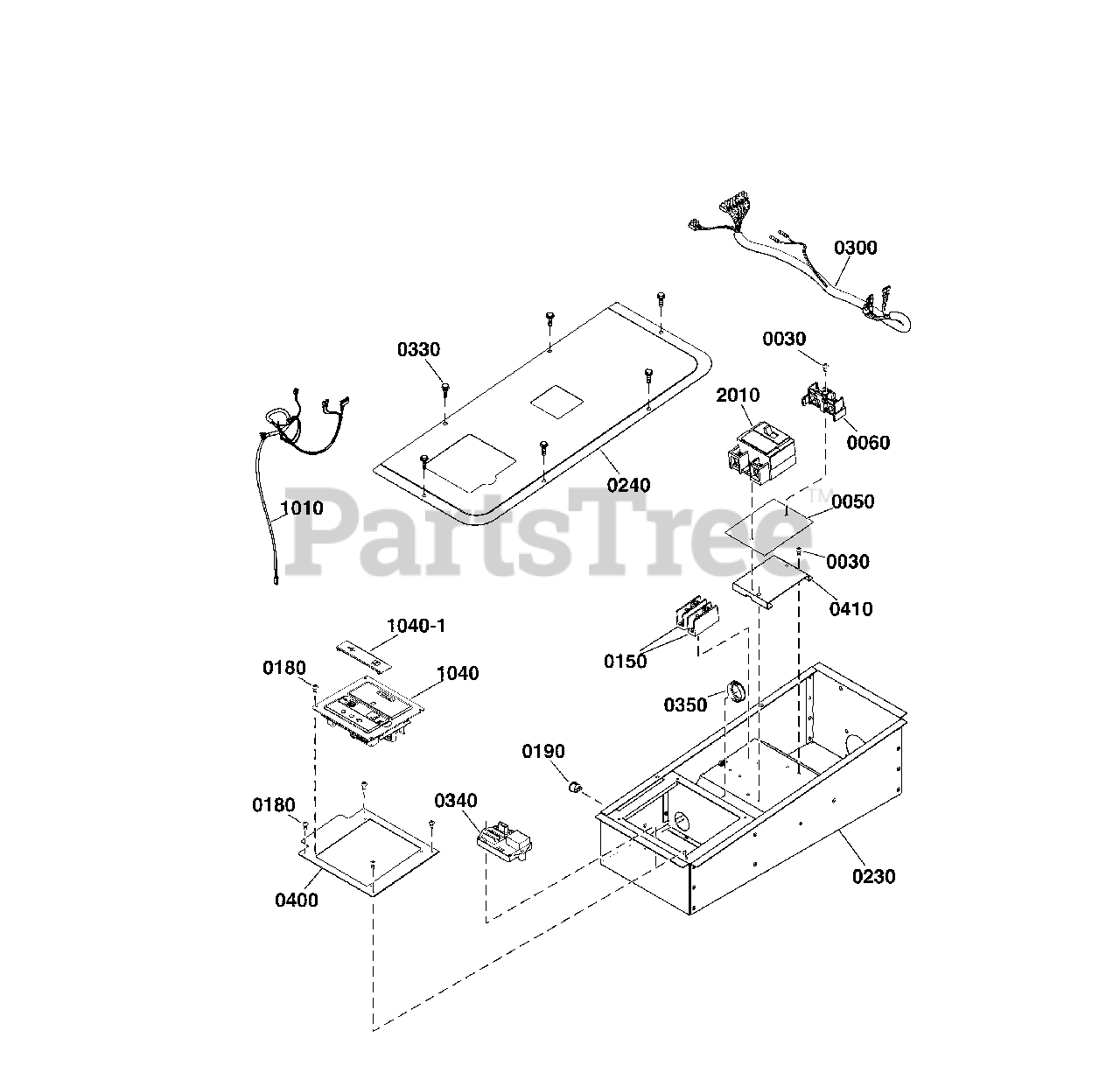

Control Panel Parts Diagram

  • Title

0030

Briggs & Stratton 80077

M4-0.7 x 20mm Pan Head Machine Screw
(Superseded to 80077GS)

Note: (*See footnote)

$4.49

$

Usually ships in 2-12 days

0

0050

Briggs & Stratton 204519GS

INSULATION

$18.99

$

Usually ships in 2-12 days

0

0060

Briggs & Stratton 204530GS

KIT, Load Lug Conversion

$59.99

$

Usually ships in 2-12 days

0

0150

Briggs & Stratton 208365GS

BLOCK, Terminal

$14.99

$

In Stock, only 1 left!

0

0180

SCREW, 10-16 X 3/8

Note: (*See footnote)

$

$

Not available

0190

Briggs & Stratton 315551GS

SWITCH, Rocker

$5.99

$

Usually ships in 2-12 days

0

0230

Briggs & Stratton 707900

BOX-CONTROL PANEL

$348.99

$

Usually ships in 2-12 days

0

0240

Briggs & Stratton 772328

COVER, Box, Breaker

$

$

Not available

0300

Briggs & Stratton 314639GS

HARNESS-WIRE

$76.99

$

Usually ships in 2-12 days

0

0330

BOLT, Flange, M6 X 1 X 20

Note: (*See footnote)

$

$

Not available

0340

Briggs & Stratton 209856GS

REGULATOR, Voltage

$177.99

$

Usually ships in 2-12 days

0

0350

Briggs & Stratton 707901

BUSHING

$3.49

$

Usually ships in 2-12 days

0

0400

Briggs & Stratton 707902

BRACKET-CONTROL PANEL

$34.99

$

Usually ships in 2-12 days

0

0410

Briggs & Stratton 707903

BRACKET

$23.99

$

Usually ships in 2-12 days

0

1010

Briggs & Stratton 772273

HARNESS, Wire

$111.99

$

Usually ships in 2-12 days

0

1040

Briggs & Stratton 319891GS

CONTROL PANEL
(Superseded to 315423GS)

Note: (Includes Ref. No. 1040-1)(**See footnote)

$414.99

$

In Stock, only 1 left!

0

1040-1

DOOR, Access, Fuse

$

$

Not available

2010

Briggs & Stratton 319606GS

BREAKER-CIRCUIT, 125A, 2 Pole

$201.99

$

Usually ships in 2-12 days

0

2020

Briggs & Stratton 6479GS

KIT, Off Board Radio
(Superseded to 6479)

Note: (Not Illustrated)

$418.99

$

Usually ships in 2-12 days

0
