0775-1 - Generac 3,000 PSI Pressure Washer Pressure Washer Parts Diagram

3,000 PSI Pressure Washer

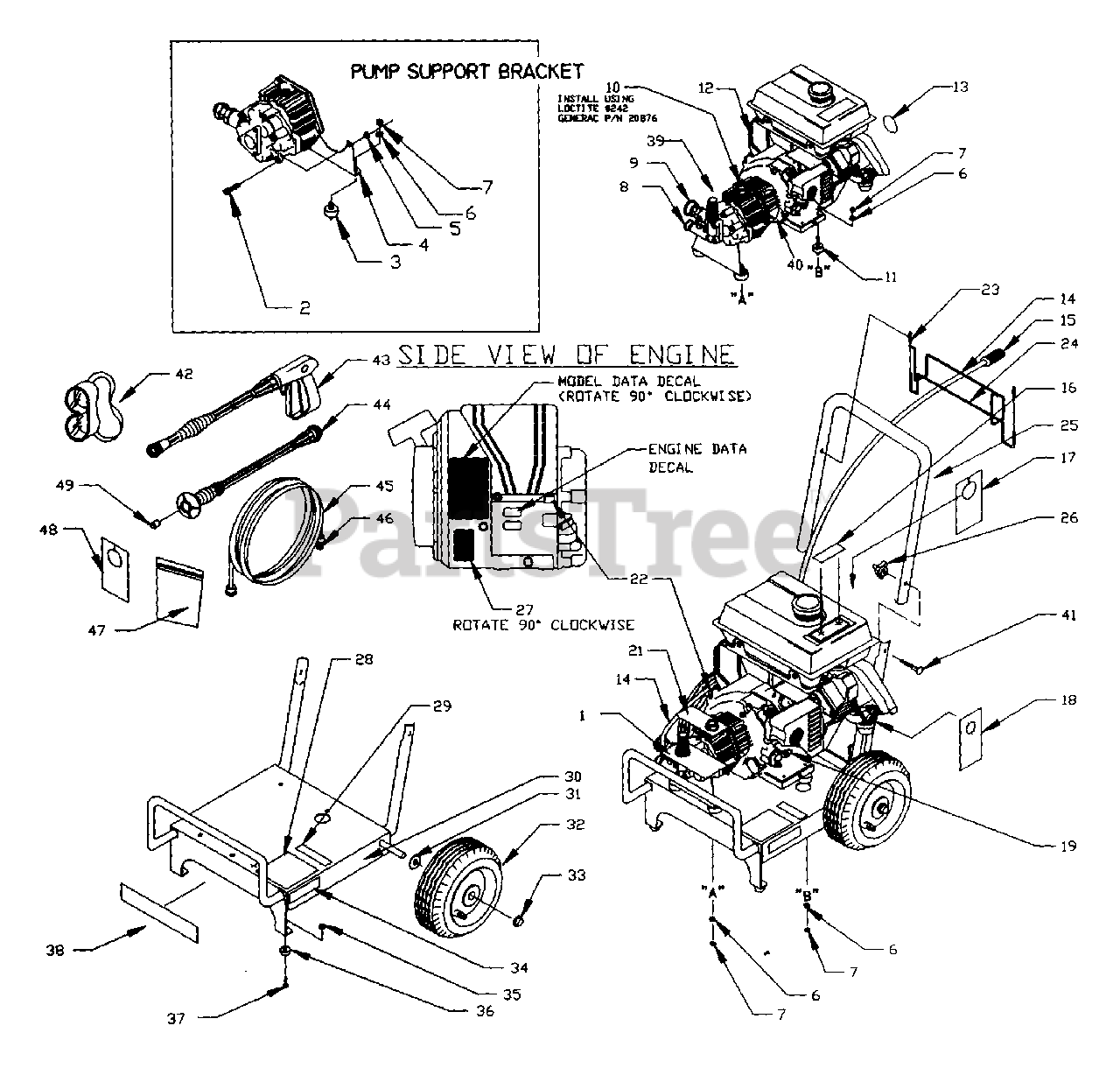

Pressure Washer Parts Diagram

  • Title
1

Briggs & Stratton 97054

TAG, PRESSURE ADJUST

$

$

Not available

2

Briggs & Stratton 38750

HEX HEAD CAP SCREW M6-10 X 30
(Superseded to 38750GS)

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 21216

MOUNT, RUBBER SHOCK
(Superseded to 5021216)

$142.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton A1701

BRACKET, PUMP SUPPORT

$

$

Not available

5

Briggs & Stratton 52857

NUT, LOCKING M6-1.0
(Superseded to 52857GS)

$3.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 22129

LOCK WASHER 5/16-M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 45771

NUT, HEX M8-1.25

$

$

Not available

8

Briggs & Stratton 97100

CAP, H.P. ADAPTER
(Superseded to 97100GS)

$3.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 97098

CAP, GARDEN HOSE INLET
(Superseded to 97098GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 99735

OIL, BREATHER/FILL (LOCTITED)
(Superseded to 99735GS)

$12.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 21217

MOUNT RUBBER SHOCK
(Superseded to 21217GS)

$7.49

$

In Stock, only 1 left!

0

12

NSP

ENGINE, 220HT GN

$

$

Not available

13

Briggs & Stratton 91682B

DECAL, RECOIL

$

$

Not available

14

Briggs & Stratton A1040B

CHEMICAL HOSE
(Superseded to A1040DGS)

$12.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton A1041

FILTER, CHEM. HOSE
(Superseded to 709496)

$6.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 21786

DECAL, DANGER
(Superseded to 21786GS)

$13.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 70453

TAG, WARNING OIL
(Superseded to 70453GS)

$3.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton B1210

TAG, ENGINE STARTING
(Superseded to B1210AGS)

$2.49

$

Usually ships in 2-12 days

0

19

NSP

LIQUID NEOPRENE

$

$

Not available

21

Briggs & Stratton B1288

TAG, PUMP BREATHER CAP
(Superseded to B1288GS)

$1.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton B1232

CHEM. HOSE CLIP
(Superseded to B1232GS)

$2.99

$

Usually ships in 2-12 days

0

23

$

$

Currently unavailable

24

Briggs & Stratton 21299

WIRE FORM, HANDLE
(Superseded to 5022812)

$11.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 21298

HANDLE
(Superseded to 5021298)

$72.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 97178

KNOB, 1/4-20
(Superseded to 97178GS)

$8.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton A1608B

DECAL, E.P.A.

$

$

Currently unavailable

28

Briggs & Stratton 21521

DECAL, IMPORTANT

$

$

Not available

29

Briggs & Stratton 20566

DECAL, GENERAC 1-800#
(Superseded to 20566GS)

$1.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton B1078

BASE, ASSY
(Superseded to B1078GS)

$160.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 49808

WASHER, FLAT M12
(Superseded to 49808GS)

$3.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 88521

WHEEL ASSY
(Superseded to 88521GS)

$93.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 75402

PUSH NUT.50 DIA
(Superseded to 194062GS)

$4.49

$

In Stock, only 2 left!

0

34

Briggs & Stratton 96415

DECAL, CAUTION INSTRUCTION
(Superseded to 96415GS)

$1.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 52858

NUT, LOCKING M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 3 left!

0

36

Briggs & Stratton 87841

MOUNT, DOGNUT TYPE
(Superseded to 87841GS)

$3.99

$

In Stock, only 3 left!

0

37

Briggs & Stratton 39253

HEX HEAD CAP SCREW M8-1.25 X 20
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

38

NSP

DECAL, LOGO

$

$

Not available

39

Briggs & Stratton B1336P

PUMP HEAD ASSY

$

$

Not available

40

NSP

FINAL PUMP ASSY

Note: (See "Pressure Washer" illustration

$

$

Not available

41

Briggs & Stratton 31669

CARRIAGE BOLT, 1/4-20 X 1 3/4"
(Superseded to 31669GS)

$3.49

$

In Stock, only 2 left!

0

42

Briggs & Stratton 87815

SAFETY GOGGLES
(Superseded to 87815GS)

$12.99

$

Usually ships in 2-12 days

0

43

$

$

Currently unavailable

44

Briggs & Stratton 98539E

WAND ASSEMBLY 1.05 YELLOW

$

$

Not available

45

Briggs & Stratton 91630

HOSE, 3.8" X 25'

$

$

Not available

46

NSP

TEFLON TAPE

$

$

Not available

47

Briggs & Stratton 97009

NOZZLE CLEANING KIT
(Superseded to 97009GS)

$7.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 97566

TAG NOZZLE INSTRUCTIONS
(Superseded to 97566GS)

$1.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 21761

NOZZLE, 1.05 YELLOW

Note: (Replacement Only)

$

$

Not available

Briggs & Stratton 94994

FUEL TANK
(Superseded to 94994GS)

Note: (Not called out)

$

$

Not available
