080022-00 - Briggs & Stratton 150kW Home Standby Generator Engine Group - 8.8L TCAC (80021492) Parts Diagram

150kW Home Standby Generator

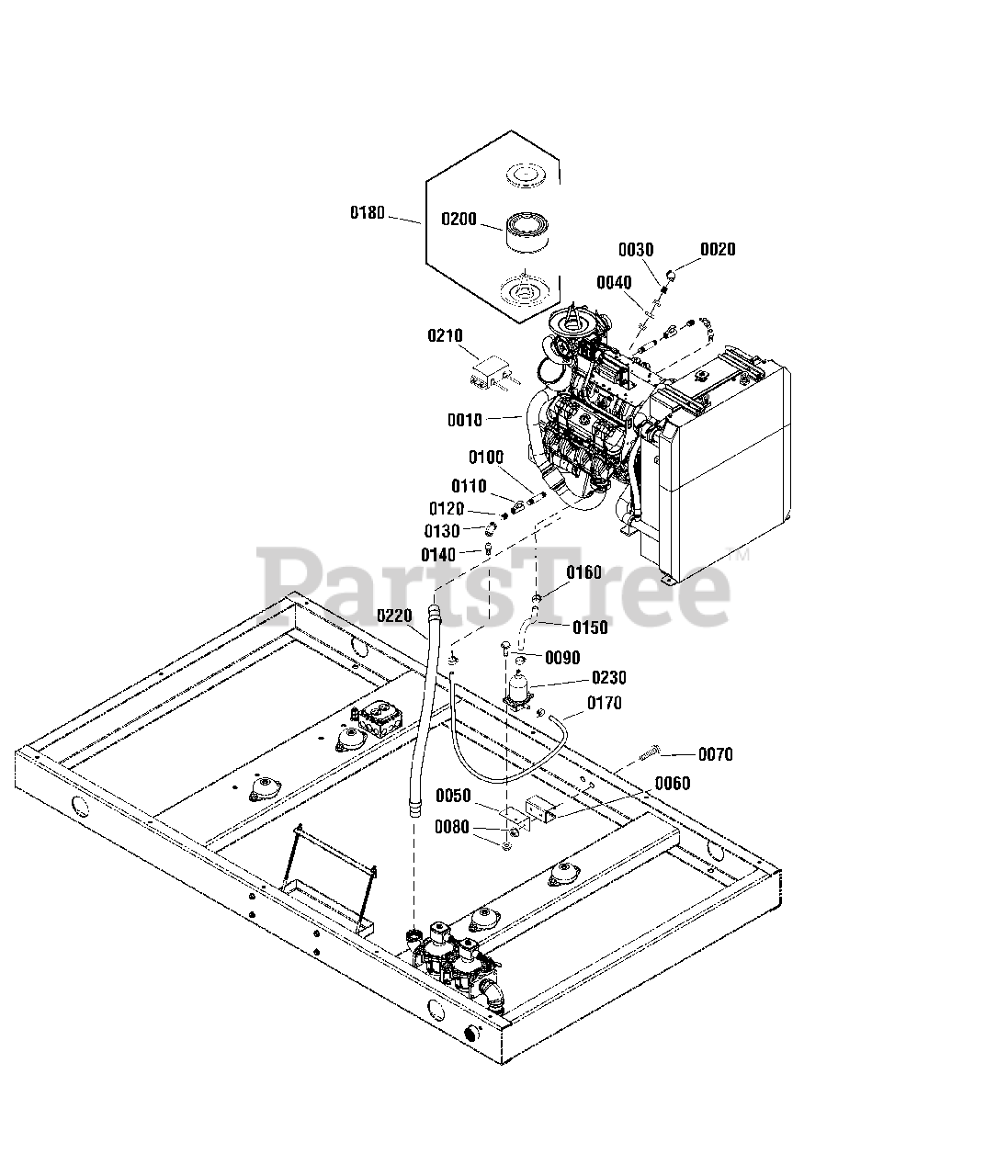

Engine Group - 8.8L TCAC (80021492) Parts Diagram

  • Title

0010

Briggs & Stratton 80022399

ENGINE, 8.8L TCAC

$71922.99

$

Usually ships in 2-12 days

0

0020

-----

*FITTNG, ELBOW, 1-1/4 NPT X 90°

$

$

Not available

0030

-----

*FITTNG, NIPPLE, 1-1/4 NPT x 2-1/2

$

$

Not available

0040

-----

*FITTNG, UNION, 1-1/4 NPT

$

$

Not available

0050

-----

*STRUT CHANNEL, 1-5/8 X 1-5/8 X 3

$

$

Not available

0060

-----

*BRACKET, MOUNTING

$

$

Not available

0070

-----

*SCREW, FLANGED, 1/4-20 x 2.5

$

$

Not available

0080

-----

*NUT, FLANGED, 1/4-20

$

$

Not available

0090

-----

*SCREW, FLANGED, 1/4-20 x 1

$

$

Not available

0100

-----

*FITTNG, NIPPLE, 1/2 NPT x 4

$

$

Not available

0110

-----

*VALVE, BALL, 1/2 NPT

$

$

Not available

0120

-----

*FITTNG, NIPPLE, 1/2 NPT x 1-1/8

$

$

Not available

0130

-----

*FITTNG, ELBOW, 1/2 NPT X 45°

$

$

Not available

0140

-----

*HOSE, BARB, 5/8 BARB, 1/2 MNPT

$

$

Not available

0150

-----

*HOSE, 5/8 ID X 18 LONG

$

$

Not available

0160

-----

*CLAMP, HOSE, 1

$

$

Not available

0170

-----

*HOSE, 5/8 ID X 60 LONG

$

$

Not available

0180

Briggs & Stratton 80024973

AIR CLEANER ASSEMBLY

$753.99

$

Usually ships in 2-12 days

0

0200

Briggs & Stratton 770898

FILTER

$179.99

$

Usually ships in 2-12 days

0

0210

Briggs & Stratton 704387

CHARGER, BATTERY

$415.99

$

Usually ships in 2-12 days

0

0220

Briggs & Stratton 770844

HOSE, FLEX, 1-1/4 NPT X 36

$420.99

$

Usually ships in 2-12 days

0

0230

Briggs & Stratton 770637

HEATER, 120V, 1800W
(Superseded to 80021478)

$433.99

$

Usually ships in 2-12 days

0
