080026-00 - Briggs & Stratton 200kW Home Standby Generator Engine Service Parts - Oil Filter (80022400) Parts Diagram

200kW Home Standby Generator

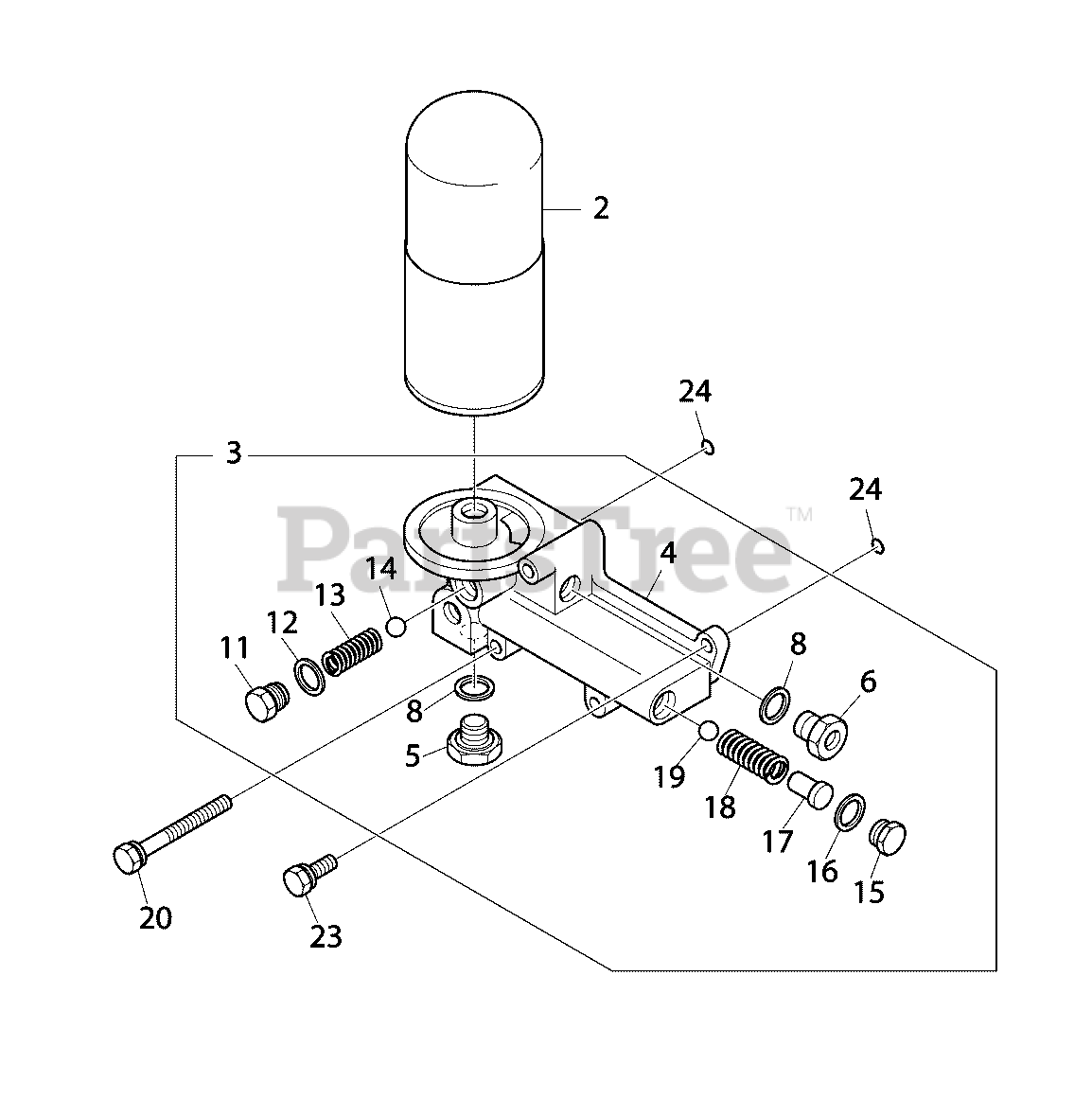

Engine Service Parts - Oil Filter (80022400) Parts Diagram

  • Title

--

-----

* FILTER, OIL ASSY

Note: (Includes items 2-19)

$

$

Not available

2

Briggs & Stratton 80024352

FILTER, OIL

$147.99

$

Usually ships in 2-12 days

0

3

-----

* FILTER, OIL HEAD

Note: (Includes items 4-19)

$

$

Not available

4

-----

* FILTER, OIL HEAD

$

$

Not available

5

-----

* PLUG, SCREW

$

$

Not available

6

-----

* PLUG, SCREW

$

$

Not available

8

-----

* SEAL, RING

$

$

Not available

11

-----

* PLUG, SCREW

$

$

Not available

12

-----

* SEAL, RING

$

$

Not available

13

-----

* SPRING, O/FILTER

$

$

Not available

14

-----

* BY-PASS VALVE

$

$

Not available

15

-----

* PLUG, SCREW

$

$

Not available

16

-----

* SEAL, RING

$

$

Not available

17

-----

* PIN, SPRING

$

$

Not available

18

-----

* SPRING

$

$

Not available

19

-----

* VALVE, BYPASS

$

$

Not available

20

-----

* BOLT

$

$

Not available

23

-----

* BOLT

$

$

Not available

24

-----

* O-RING

$

$

Not available
