080029-00 - Briggs & Stratton 200kW Home Standby Generator Base_Battery Group Parts Diagram

200kW Home Standby Generator

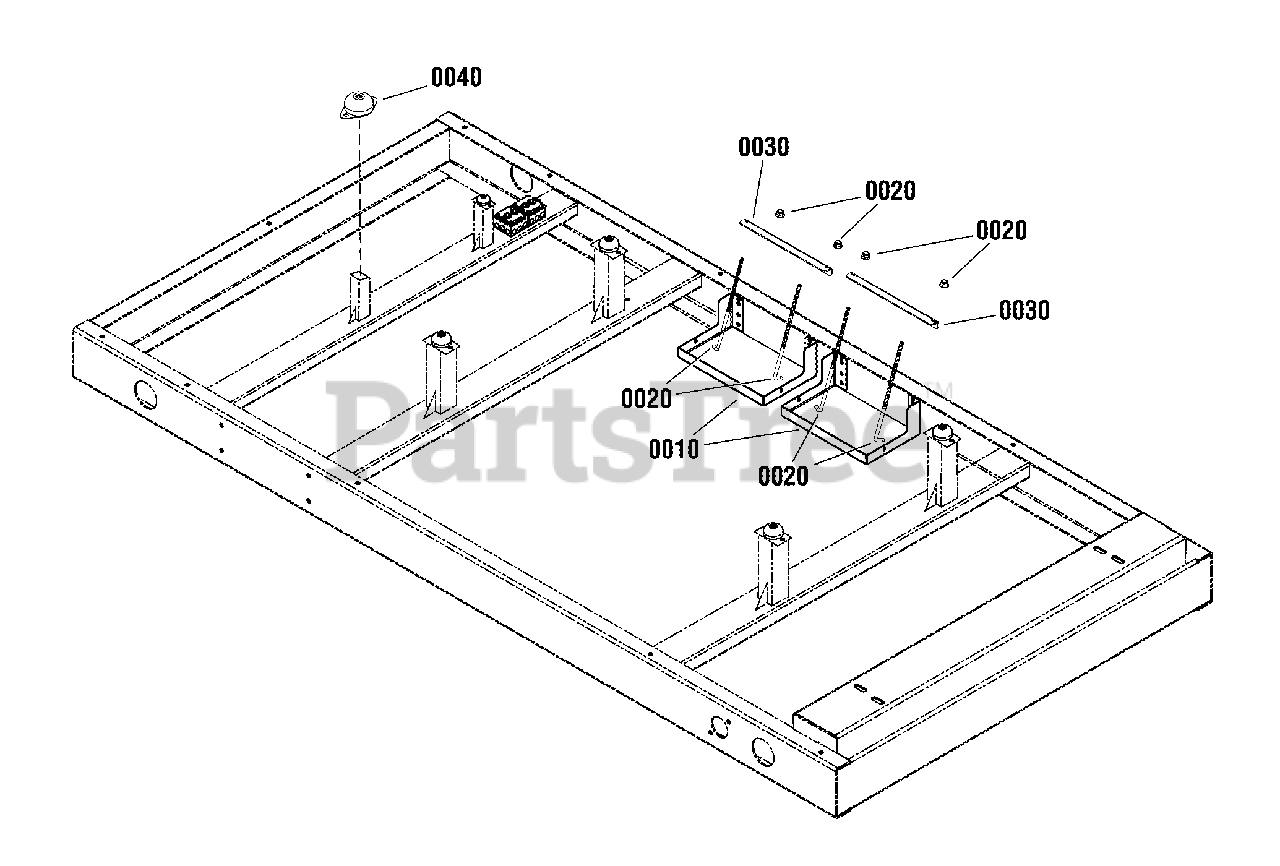

Base_Battery Group Parts Diagram

  • Title

0010

Briggs & Stratton 770767

TRAY, Battery

$144.99

$

Usually ships in 2-12 days

0

0020

Briggs & Stratton 770766

HARDWARE, Battery Hold Down

$9.99

$

Usually ships in 2-12 days

0

0030

Briggs & Stratton 770768

TIE DOWN, Battery

$32.99

$

Usually ships in 2-12 days

0

0040

Briggs & Stratton 772407

ISOLATOR

$72.99

$

Usually ships in 2-12 days

0

--

*WASHER, Flat, 3/8

Note: (*See footnote, Not Illustrated)

$

$

Not available

--

*CAPSCREW, Hex Head, 3/8-16 x 1, GR5

Note: (*See footnote, Not Illustrated)

$

$

Not available

--

*WASHER, Lock, 3/8

Note: (*See footnote, Not Illustrated)

$

$

Not available

--

*NUT, Hex, 3/8

Note: (*See footnote, Not Illustrated)

$

$

Not available

--

*CAPSCREW, Hex Head, 1/2-13 x 1 1/4, GR5

Note: (*See footnote, Not Illustrated)

$

$

Not available

--

*WASHER, Flat, 1/2

Note: (*See footnote, Not Illustrated)

$

$

Not available

--

*WASHER, Lock, 1/2

Note: (*See footnote, Not Illustrated)

$

$

Not available

--

*NUT, Hex, 1/2

Note: (*See footnote, Not Illustrated)

$

$

Not available

--

*CAPSCREW, Hex Head, 1/2-13 x 2, GR5

Note: (*See footnote, Not Illustrated)

$

$

Not available
