080082-00 - Briggs & Stratton 80kW Home Standby Generator Engine Group - 5.7L Parts Diagram

80kW Home Standby Generator

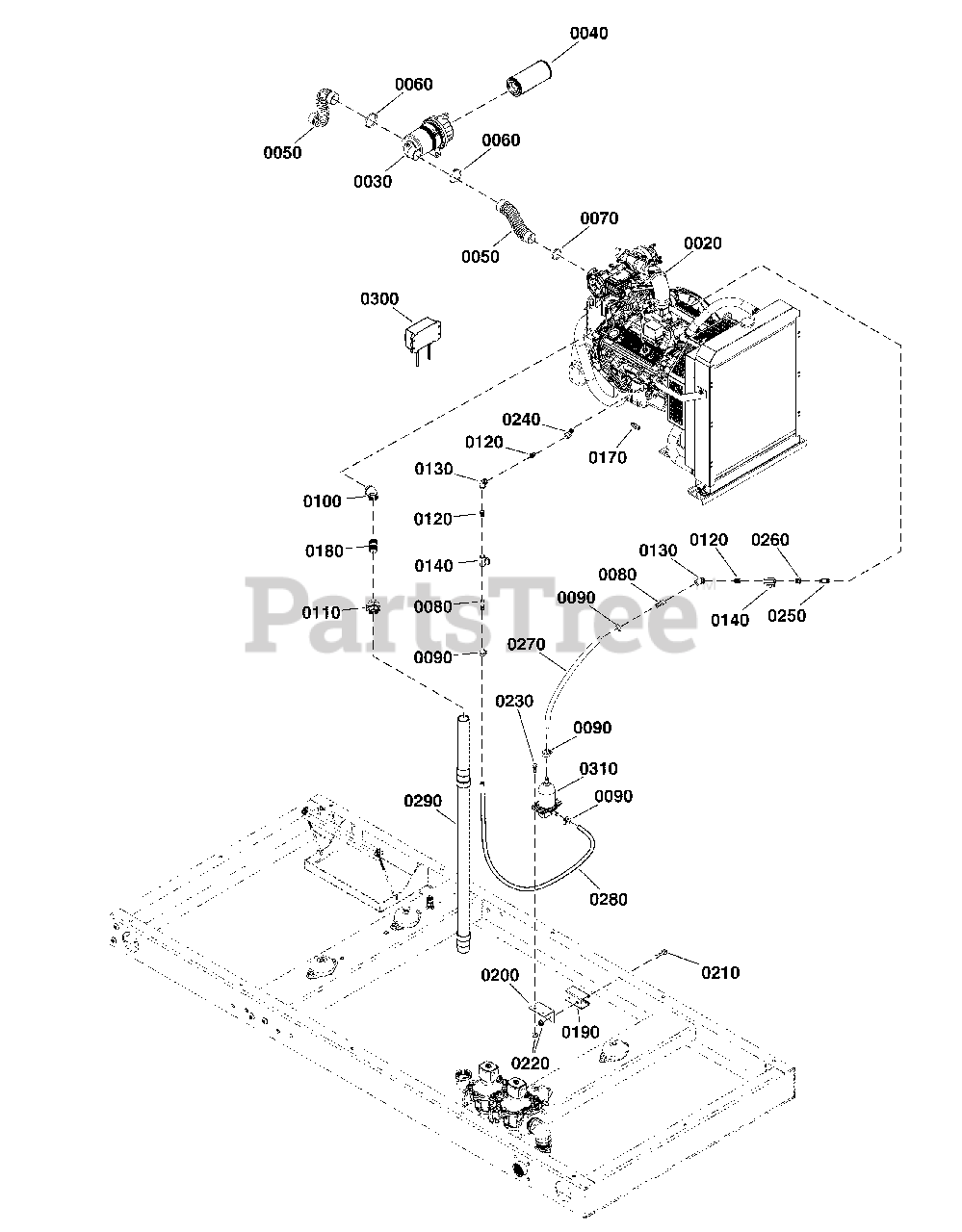

Engine Group - 5.7L Parts Diagram

  • Title

0020

Briggs & Stratton 80022397

ENGINE, 5.7L

$37666.99

$

Usually ships in 2-12 days

0

0030

Briggs & Stratton 709905

FILTER-AIR

$192.99

$

Usually ships in 2-12 days

0

0040

Briggs & Stratton 770029

FILTER-CARTRIDGE

$92.99

$

In Stock, only 1 left!

0

0050

Briggs & Stratton 318640GS

HOSE, INTAKE

$85.99

$

Usually ships in 2-12 days

0

0060

CLAMP, Hose, 4.5"

Note: (*See footnote)

$

$

Not available

0070

Briggs & Stratton 205016GS

CLAMP, 3.5"

$15.99

$

Usually ships in 2-12 days

0

0080

HOSE, Barb, 5/8" BARB, 1/2" MNPT

Note: (*See footnote)

$

$

Not available

0090

Briggs & Stratton 771739

CLAMP, Hose

$22.99

$

Usually ships in 2-12 days

0

0100

FITTING, Elbow, 1-1/4 x 45

Note: (*See footnote)

$

$

Not available

0110

FITTING, Union, 1-1/4 NPT

Note: (*See footnote)

$

$

Not available

0120

FITTING, Nipple, 1/2 NPT X 1-1/8

Note: (*See footnote)

$

$

Not available

0130

FITTING, Elbow, 1/2 NPT X 45 Degree

Note: (*See footnote)

$

$

Not available

0140

VALVE, Ball, 1/2 NPT, T-Handle, Brass

Note: (*See footnote)

$

$

Not available

0170

Briggs & Stratton 708761

SENSOR-LOW COOLANT

$161.99

$

Usually ships in 2-12 days

0

0180

FITTNG, NIPPLE, 1-1/4 NPT x 2-1/2

Note: (*See footnote)

$

$

Not available

0190

STRUT CHANNEL, 1-5/8 X 1-5/8 X 3

Note: (*See footnote)

$

$

Not available

0200

BRACKET, Mounting, Heat Pump

Note: (*See footnote)

$

$

Not available

0210

SCREW, FLANGED, 1/4-20 x 2.5

Note: (*See footnote)

$

$

Not available

0220

NUT, FLANGED, 1/4-20

Note: (*See footnote)

$

$

Not available

0230

SCREW, FLANGED, 1/4-20 x 1

Note: (*See footnote)

$

$

Not available

0240

FITTING, Elbow, 1/2 X 45°

Note: (*See footnote)

$

$

Not available

0250

FITTNG, NIPPLE, 3/8 NPT x 2

Note: (*See footnote)

$

$

Not available

0260

FITTING, Bushing, Reducing, 1/2 - 3/8 NPT

Note: (*See footnote)

$

$

Not available

0270

HOSE, 5/8 ID X 24"

Note: (**See footnote)

$

$

Not available

0280

HOSE, 5/8 ID X 36"

Note: (**See footnote)

$

$

Not available

0290

Briggs & Stratton 770845

HOSE, Flex, Fuel, 1-1/4 NPT X 33", UL

$

$

Currently unavailable

0300

Briggs & Stratton 771737

CHARGER, Battery

$439.99

$

Usually ships in 2-12 days

0

0310

Briggs & Stratton 708798

HEATER, 120V

$207.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 772409

CABLE, Battery, Positive

Note: (Not Illustrated)

$

$

Currently unavailable

--

Briggs & Stratton 772410

CABLE, Battery, Negative

Note: (Not Illustrated)

$

$

Currently unavailable
