08201116 - Ariens 196cc Engine Engine 08201116 Parts Diagram

196cc Engine

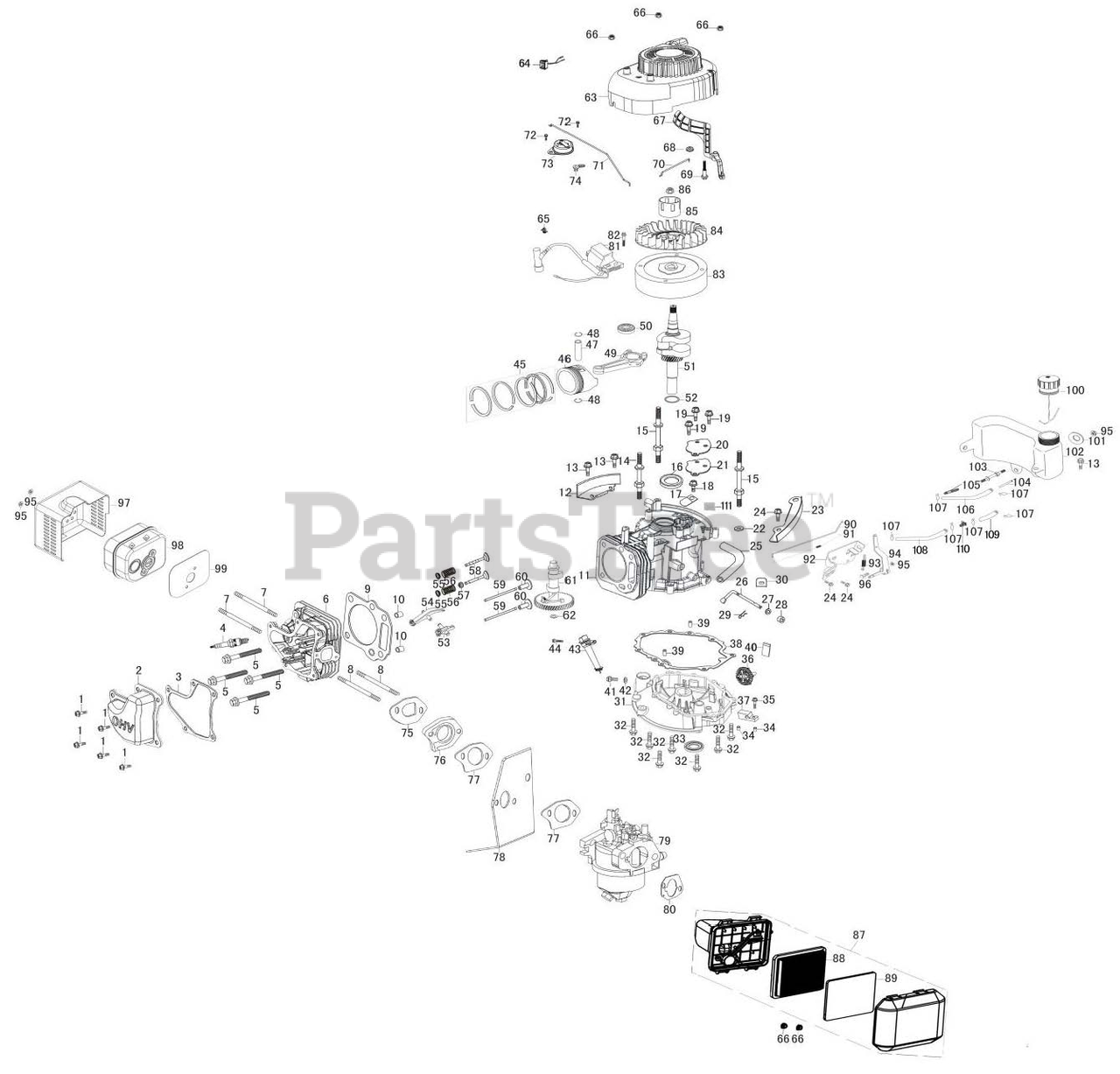

Engine 08201116 Parts Diagram

  • Title

1

Ariens 21100124

BOLT, CYLINDER HEAD

$

$

Not available

2

Ariens 21100125

COVER, COMP. HEAD

$

$

Not available

3

Ariens 21100126

PACKING, HEAD COVER

$

$

Not available

4

Ariens 21100123

SPARK PLUG, LONCIN 160CC

$5.99

$

In Stock, Qty 11

0

5

Ariens 21100127

BOLT, CONNECTING ROD

$

$

Not available

6

Ariens 21110423

HEAD COMP, CYLINDER

$36.99

$

Usually ships in 4-12 days

0

7

Ariens 21100129

BOLT, STUD

$

$

Not available

8

Ariens 21100130

BOLT, STUD

$

$

Not available

9

Ariens 21110424

GASKET, CYLINDER

$7.49

$

Usually ships in 4-12 days

0

10

Ariens 21100132

PIN, DOWEL

$0.99

$

Usually ships in 4-12 days

0

11

Ariens 21110418

CRANK CASE

$72.99

$

Usually ships in 4-12 days

0

12

Ariens 21100149

SHIELD, TANK SIDE

$

$

Not available

13

Ariens 21100134

BOLT, FLANGE

$1.99

$

Usually ships in 4-12 days

0

14

Ariens 21100135

BOLT, STUD

$

$

Not available

15

Ariens 21100136

BOLT, STUD

$

$

Not available

16

Ariens 21100137

OIL SEAL

$

$

Not available

17

Ariens 21100138

REED VALVE

$

$

Not available

18

Ariens 21100139

BOLT, FLANGE

$

$

Not available

19

Ariens 21110451

BOLT,FLANGE

$4.49

$

Usually ships in 4-12 days

0

20

Ariens 21110421

CAP,BREATHER CHAMBER

$4.49

$

Usually ships in 4-12 days

0

21

Ariens 21110422

PACKING, BREATHER CHAMBER

$4.49

$

Usually ships in 4-12 days

0

22

Ariens 21110456

BUSHING

$4.49

$

Usually ships in 4-12 days

0

23

Ariens 21110434

SHIELD,TANK SIDE

$4.49

$

Usually ships in 4-12 days

0

24

Ariens 21100147

BOLT, FLANGE

$0.99

$

Usually ships in 4-12 days

0

25

Ariens 21110453

TUBE,BREATHER

$

$

Not available

26

Ariens 21100151

SHAFT, GOVERNOR ARM

$

$

Not available

27

Ariens 21100152

WASHER

$

$

Not available

28

Ariens 21100153

OIL SEAL

$

$

Not available

29

Ariens 21100154

PIN, LOCK

$

$

Not available

31

Ariens 21110419

CASE COVER

$33.99

$

Usually ships in 4-12 days

0

32

Ariens 21100158

BOLT, FLANGE

$

$

Not available

33

Ariens 21100159

OIL SEAL

$

$

Not available

34

Ariens 21100160

PIN, DOWEL

$

$

Not available

35

Ariens 21100161

BOLT, FLANGE

$

$

Not available

36

Ariens 21110447

GOVERNOR COMP

$

$

Not available

37

Ariens 21100163

PLATE, GOVERNOR HOLDER

$

$

Not available

38

Ariens 21110420

PACKING,CASE COVER

$

$

Not available

39

Ariens 21100165

PIN, DOWEL

$

$

Not available

40

Ariens 21100166

RUBBER, OIL DEFLECTOR

$

$

Not available

41

Ariens 21100167

BOLT, DRAIN PLUG

$

$

Not available

42

Ariens 21100168

WASHER

$

$

Not available

43

Ariens 21100169

CAP ASS'Y

$

$

Not available

44

Ariens 21100170

BOLT, FLANGE

$

$

Not available

45

Ariens 21110427

RING SET

$11.99

$

Usually ships in 4-12 days

0

46

Ariens 21110425

PISTON

$12.99

$

Usually ships in 4-12 days

0

47

Ariens 21110426

PIN.PISTON

$7.49

$

Usually ships in 4-12 days

0

48

Ariens 21110452

CLIP,PISTON PIN

$4.49

$

Usually ships in 4-12 days

0

49

Ariens 21110428

ROD ASSY.,CONNECTING

$14.99

$

Usually ships in 4-12 days

0

50

Ariens 21100176

EDDP GROOVE BALL BEARING

$

$

Not available

51

Ariens 21110430

CRANKSHAFT COMP

$38.99

$

Usually ships in 4-12 days

0

52

Ariens 21100178

WASHER

$

$

Not available

53

Ariens 21100180

ARM, VALVE ROCKER

$

$

Not available

54

Ariens 21100181

ARM, VALVE ROCKER

$

$

Not available

55

Ariens 21100179

RETAINER, VALVE SPRING

$

$

Not available

56

Ariens 21100182

SPRING, VALVE

$

$

Not available

57

Ariens 21100183

SEAL, VALVE STEM

$

$

Not available

58

Ariens 21110458

VALVE ASSY.

$17.99

$

Usually ships in 4-12 days

0

59

Ariens 21110432

ROD,PUSH

$7.49

$

Usually ships in 4-12 days

0

60

Ariens 21100186

LIFTER

$

$

Not available

61

Ariens 21110431

CAMSHAFT ASSY.

$17.99

$

Usually ships in 4-12 days

0

62

Ariens 21100188

WASHER

$

$

Not available

63

Ariens 21110448

STARTER SUBASSEMBIY

$

$

Not available

64

Ariens 21110450

SWITCH ASSY.,ENGINE STOP

$7.49

$

Usually ships in 4-12 days

0

65

Ariens 21110457

LOCATION CABLE CLIP

$

$

Not available

66

Ariens 21100192

NUT, FLANGE

$0.99

$

Usually ships in 4-12 days

0

67

Ariens 21100193

LAMINA, CONTROL THROTTLE

$

$

Not available

68

Ariens 21100194

DUST COVER

$

$

Not available

69

Ariens 21100195

BOLT, FLANGE

$

$

Not available

70

Ariens 21110446

ROD,THROTTLE

$4.49

$

Usually ships in 4-12 days

0

71

Ariens 21110445

ROD,THROTTLE

$4.49

$

Usually ships in 4-12 days

0

72

Ariens 21100198

BOLT, FLANGE

$

$

Not available

73

Ariens 21100199

ASS'Y, CONTROL THROTTLE

$

$

Not available

74

Ariens 21100201

LOCKER, CHOKE VALVE PULL ROD

$

$

Not available

75

Ariens 21100202

PACKING, INSULATOR

$

$

Not available

76

Ariens 21100203

INSULATOR, CARBURETOR

$

$

Not available

77

Ariens 21100204

PACKING, CARBURETOR

$

$

Not available

78

Ariens 21100205

INSULATOR, CARBURETOR

$

$

Not available

79

Ariens 21110436

CARBURETOR

$36.99

$

Usually ships in 4-12 days

0

80

Ariens 21100207

GASKET, AIR CLEANER

$

$

Not available

81

Ariens 21100208

COIL ASS'Y, IGNITION

$

$

Not available

82

Ariens 21100148

BOLT, FLANGE

$

$

Not available

83

Ariens 21110449

FLYWHEEL COMP

$

$

Not available

84

Ariens 21100210

FAN, COOLING

$

$

Not available

85

Ariens 21100211

PULLEY, STARTER

$

$

Not available

86

Ariens 21100212

NUT, SPECIAL

$

$

Not available

87

Ariens 21100218

AIR CLEANER ASS'Y

$

$

Not available

88

Ariens 21100121

FILTER, AIR - LONCIN 160CC

$9.49

$

In Stock, Qty 13

0

89

Ariens 21100220

ELEMENT, AIR CLEANER

$3.99

$

In Stock, Qty 8

0

90

Ariens 21110439

ROD,GOVERNOR

$4.49

$

Usually ships in 4-12 days

0

91

Ariens 21110442

SPRING,THROTTLE RETURN

$4.49

$

Usually ships in 4-12 days

0

92

Ariens 21100228

LIFTER, VALVE

$

$

Not available

93

Ariens 21110441

SPRING, GOVERNOR

$

$

Not available

94

Ariens 21110444

ARM,GOVERNOR

$

$

Not available

95

Ariens 21100226

NUT, FLANGE

$

$

Not available

96

Ariens 21100231

BOLT, GOVERNOR ARM

$

$

Not available

97

Ariens 21100223

PROTECTOR COVER, MUFFLER

$

$

Not available

98

Ariens 21100224

MUFFLER ASS'Y

$

$

Not available

99

Ariens 21100225

GASKET, MUFFLER

$

$

Not available

100

Ariens 21110222

CAP, FUEL - SVC

$26.99

$

Usually ships in 4-12 days

0

101

Ariens 21100234

WASHER

$

$

Not available

102

Ariens 21110437

TANK COMP.,FUEL

$20.99

$

Usually ships in 4-12 days

0

103

Ariens 21100237

BOLT, STUD

$

$

Not available

104

Ariens 21100238

STRAINER, FUEL

$

$

Not available

105

Ariens 21100239

CABLE CLEAT

$

$

Not available

107

Ariens 21100241

LOOP, TUBE

$

$

Not available

108

Ariens 21110455

TUBE,FUEL

$

$

Not available

109

Ariens 21110454

TUBE,FUEL

$7.49

$

Usually ships in 4-12 days

0

110

Ariens 21110438

COCK ASSY.,FUEL

$12.99

$

Usually ships in 4-12 days

0

111

Ariens 21110433

OIL STRAINER

$4.49

$

Usually ships in 4-12 days

0
