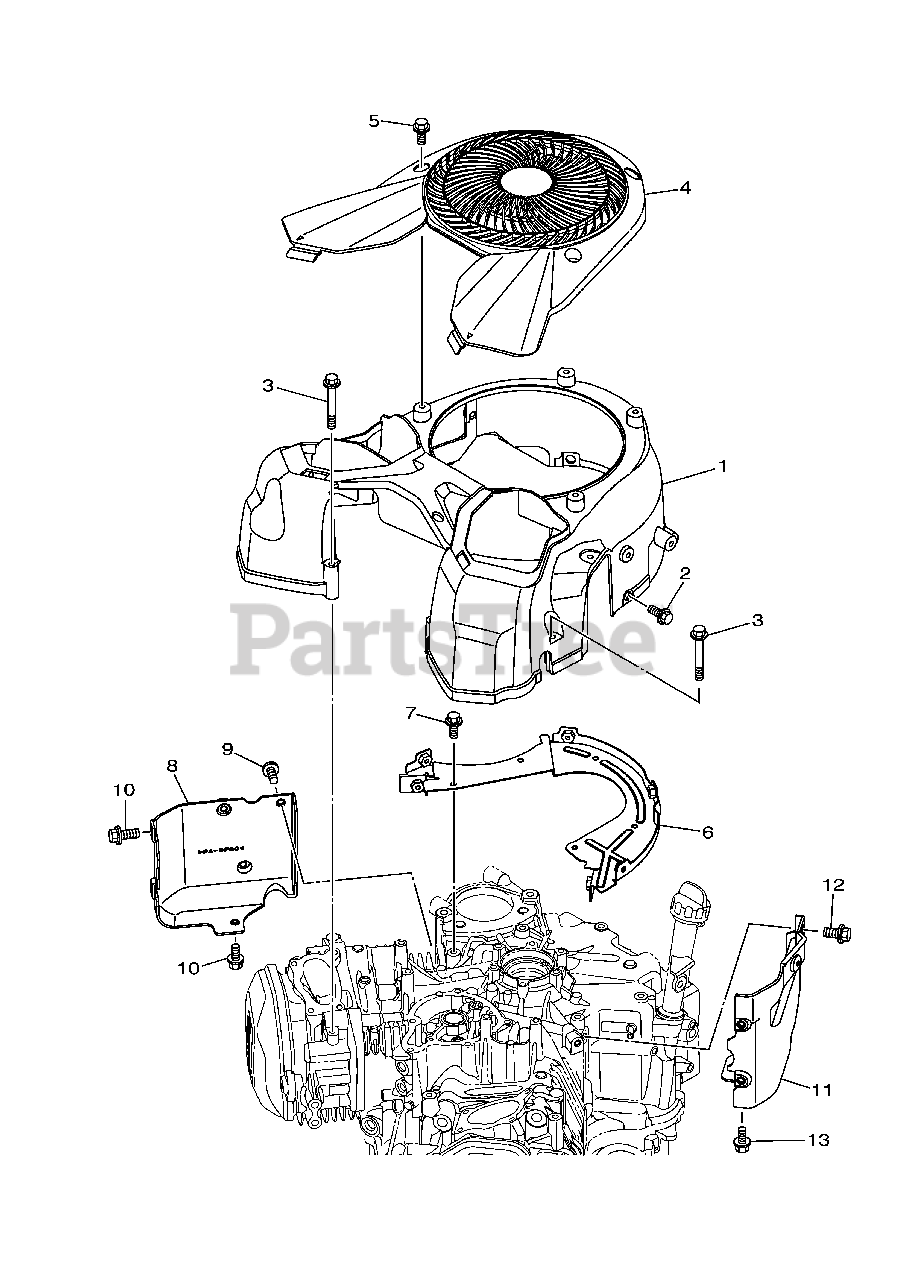

08201219 - Gravely MX775v EFI Engine Air Shroud & Starter Parts Diagram

MX775v EFI Engine

Air Shroud & Starter Parts Diagram

  • Title

1

Gravely 21563156

CASE, FAN

$156.99

$

Usually ships in 4-12 days

0

2

Gravely 21563003

BOLT

$6.99

$

Usually ships in 4-12 days

0

3

Gravely 21563049

BOLT, FLANGE

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 21563155

COVER, FAN CASE

$170.99

$

Usually ships in 4-12 days

0

5

Gravely 21563003

BOLT

$6.99

$

Usually ships in 4-12 days

0

6

Gravely 21563159

SCROLL, AIR SHROUD

$59.99

$

Usually ships in 4-12 days

0

7

Gravely 21563044

BOLT, FLANGE
(Superseded to 21563057)

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 21563160

AIR SHROUD, CYLINDER 1
(Superseded to 21563277)

$26.99

$

Usually ships in 4-12 days

0

9

Gravely 21563042

BOLT, FLANGE
(Superseded to 21563055)

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 21563045

BOLT, FLANGE
(Superseded to 21563058)

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 21563161

AIR SHROUD, CYLINDER 3
(Superseded to 21563278)

$38.99

$

Usually ships in 4-12 days

0

12

Gravely 21563042

BOLT, FLANGE
(Superseded to 21563055)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 21563045

BOLT, FLANGE
(Superseded to 21563058)

$3.99

$

Usually ships in 4-12 days

0
