08201220 - Gravely MX825v EFI Engine Electrical Parts Diagram

MX825v EFI Engine

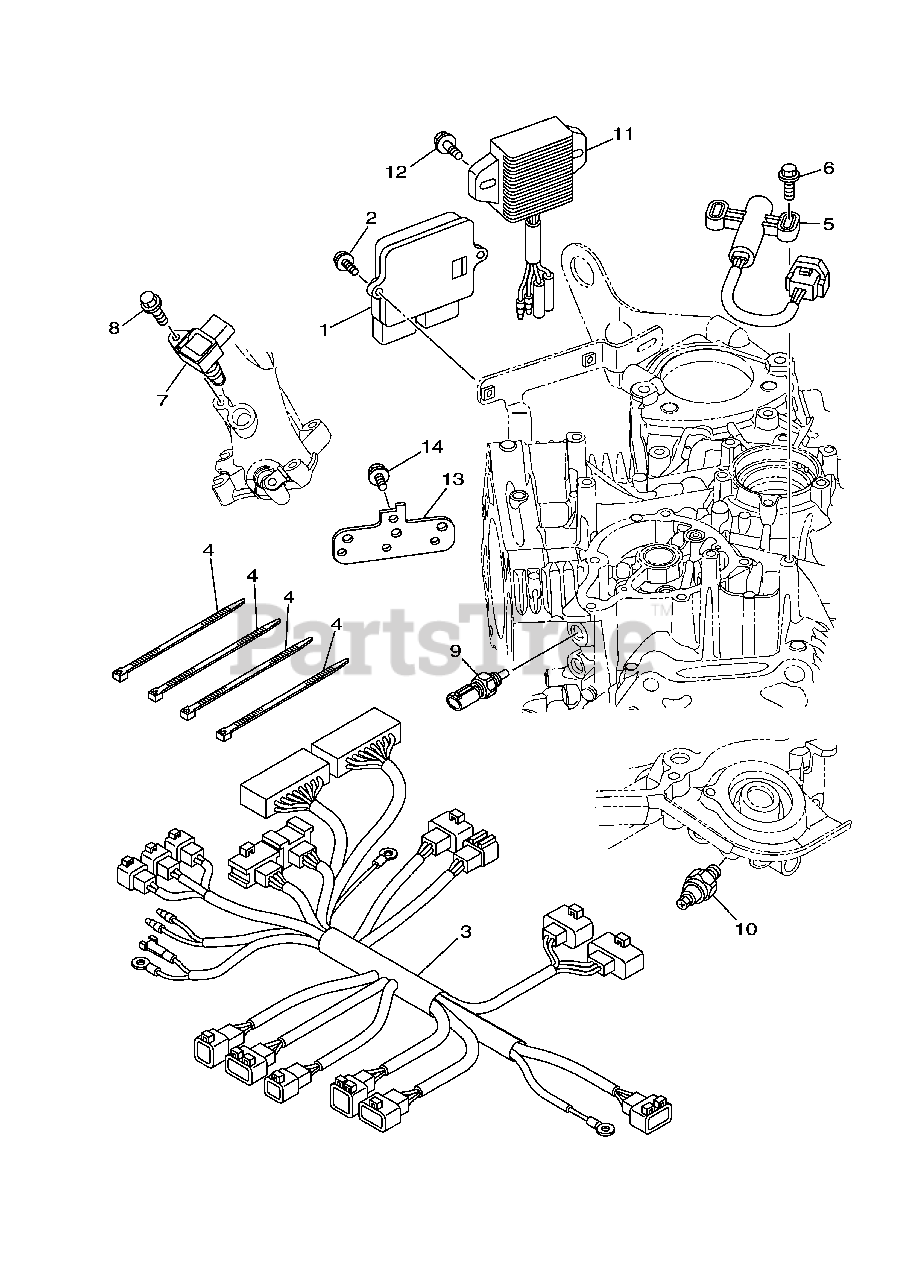

Electrical Parts Diagram

  • Title

1

Gravely 21563232

ENGINE CONTROL UNIT ASSY

$387.99

$

Usually ships in 4-12 days

0

2

Gravely 21563001

BOLT, FLANGE

$6.49

$

Usually ships in 4-12 days

0

3

Gravely 21563220

WIRE, LEAD

$646.99

$

Usually ships in 4-12 days

0

4

Gravely 21563020

CLAMP

$6.49

$

Usually ships in 4-12 days

0

5

Gravely 21563231

CRANK POSITION SENSOR

$67.99

$

Usually ships in 4-12 days

0

6

Gravely 21563046

BOLT, FLANGE
(Superseded to 21563059)

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 21563226

SENSOR, PRESSURE

$72.99

$

Usually ships in 4-12 days

0

8

Gravely 21563046

BOLT, FLANGE
(Superseded to 21563059)

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 21563227

SENSOR

$116.99

$

Usually ships in 4-12 days

0

10

Gravely 21563069

OIL PRESSURE SWITCH ASSY

$64.99

$

Usually ships in 4-12 days

0

11

Gravely 21563223

RECTIFIER & REGULATOR ASSY

$109.99

$

Usually ships in 4-12 days

0

12

Gravely 21563046

BOLT, FLANGE
(Superseded to 21563059)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 21563158

STAY 1

$6.49

$

Usually ships in 4-12 days

0

14

Gravely 21563042

BOLT, FLANGE
(Superseded to 21563055)

$3.99

$

Usually ships in 4-12 days

0
