08201317 - Ariens AX 136cc Engine Engine - 08201317 Parts Diagram

AX 136cc Engine

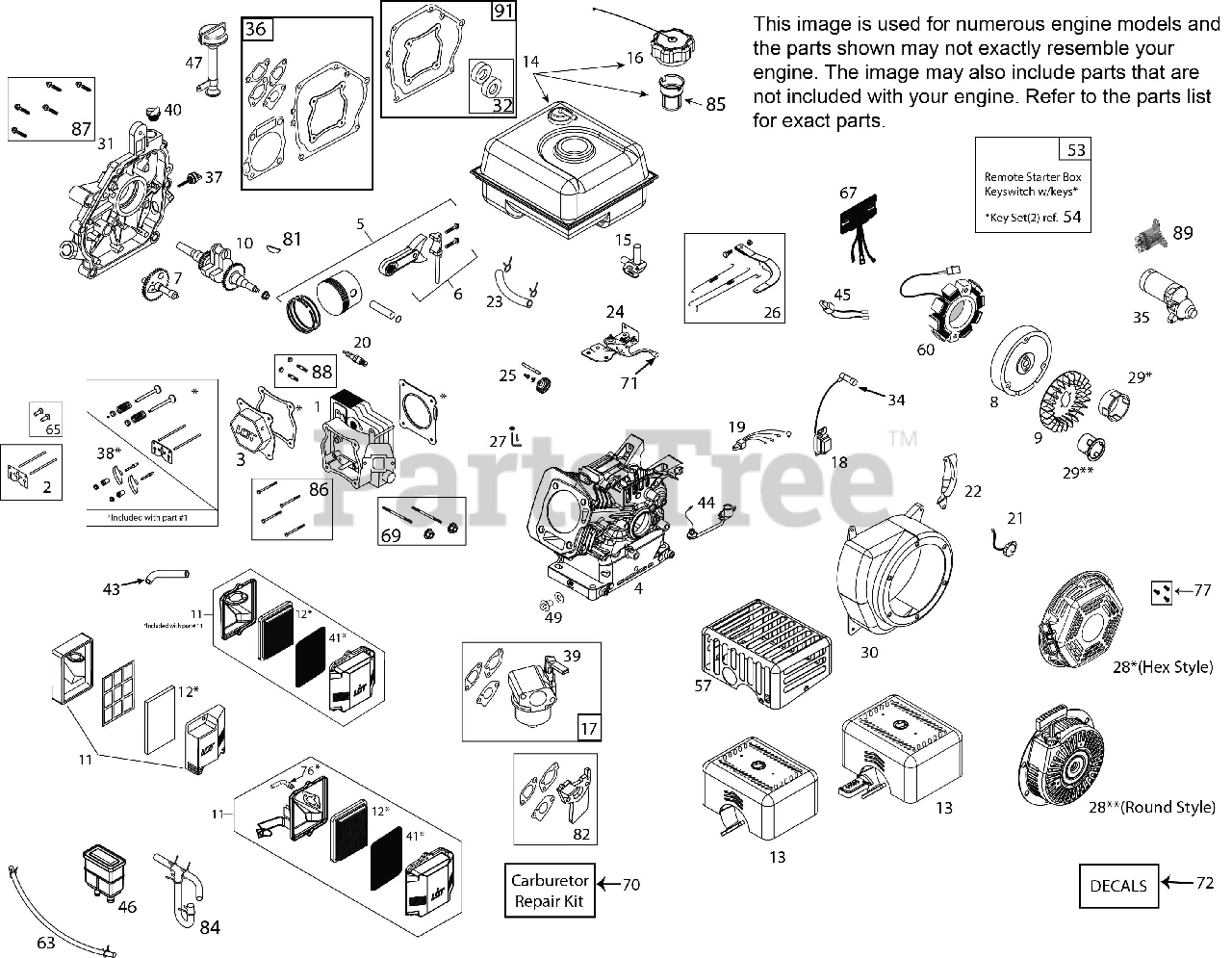

Engine - 08201317 Parts Diagram

  • Title

1

Ariens 20001187

CYLINDER HEAD ASSY(W/GASKET)

$197.99

$

Usually ships in 4-12 days

0

2

Ariens 20001188

PUSH ROD & PLATE KIT(W/GASKET)

$37.99

$

Usually ships in 4-12 days

0

3

Ariens 20001217

VALVE COVER (W/GASKET)

$10.99

$

Usually ships in 4-12 days

0

5

Ariens 20001192

PISTON & ROD ASSEMBLY

$73.99

$

Usually ships in 4-12 days

0

7

Ariens 20001193

CAMSHAFT - MCR(W/COVER GASKET)

$57.99

$

Usually ships in 4-12 days

0

8

Ariens 20001194

FLYWHEEL - MANUAL START

$59.99

$

Usually ships in 4-12 days

0

9

Ariens 20001214

COOLLNG FAN - FLYWHEEL (PLSTC)

$8.99

$

Usually ships in 4-12 days

0

10

Ariens 20001195

CRANKSHAFT (#14 KEYED)

$73.99

$

Usually ships in 4-12 days

0

11

Ariens 20001196

AIR FILTER ASSY - COMPLETE

$57.99

$

Usually ships in 4-12 days

0

12

Ariens 20001227

AIR FILTER ELMNT (W/PRE-FLTER)

$25.99

$

Usually ships in 4-12 days

0

13

Ariens 20001198

MUFFLER ASSY (W/CATALYST)

$158.99

$

Usually ships in 4-12 days

0

14

Ariens 20001503

FUEL TANK BLACK W/PLASTIC CAP

$111.99

$

Usually ships in 4-12 days

0

15

Ariens 20001230

FUEL TANK ON/OFF VALVE (1/4")

$25.99

$

Usually ships in 4-12 days

0

16

Ariens 20001504

FUEL TANK CAP

$

$

Not available

17

Ariens 20001203

CARBURETOR (W/GSKTS & SPACER)
(Superseded to 20001361)

$90.99

$

Usually ships in 4-12 days

0

18

Ariens 20001505

IGNITION COIL (EPA III)

$51.99

$

Usually ships in 4-12 days

0

20

Ariens 20001246

SPARK PLUG, ARIENS AX
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

21

Ariens 20001506

ENGINE STOP SWITCH (TWO WIRE)

$8.49

$

Usually ships in 4-12 days

0

22

Ariens 20001094

SHIELD - FLYWHEEL - MNL START

$6.49

$

Usually ships in 4-12 days

0

23

Ariens 20001252

FUEL HOSE KIT 1/4-318MM

$5.99

$

In Stock, only 3 left!

0

24

Ariens 20001205

SPEED CONTROL (MANUAL)

$11.99

$

Usually ships in 4-12 days

0

25

Ariens 20001236

GOVERNOR GEAR ASSEMBLY

$7.99

$

Usually ships in 4-12 days

0

26

Ariens 20001208

GOVERNOR ARM & LINK KIT

$7.49

$

Usually ships in 4-12 days

0

27

Ariens 20001209

GOVERNOR ARM PADDLE

$20.99

$

Usually ships in 4-12 days

0

28

Ariens 20001239

RECOIL STARTER (ROUND - BLACK)

$56.99

$

Usually ships in 4-12 days

0

29

Ariens 20001091

STARTER CUP

$19.99

$

Usually ships in 4-12 days

0

30

Ariens 20001210

BLOWER HOUSING (W/SWITCH HOLE)

$36.99

$

Usually ships in 4-12 days

0

31

Ariens 20001087

CRANKCASE COVER ASSY

$73.99

$

Usually ships in 4-12 days

0

32

Ariens 20001213

OIL SEAL KIT

$15.99

$

Usually ships in 4-12 days

0

34

Ariens 20001245

SPARK PLUG

$11.99

$

Usually ships in 4-12 days

0

36

Ariens 20001215

ENGINE GASKET KIT

$68.99

$

In Stock, only 1 left!

0

37

Ariens 20001244

SMALL BLACK OIL DIPSTICK

$6.99

$

In Stock, only 2 left!

0

38

Ariens 20001190

ROCKER ARM KIT (W/GASKET)

$21.99

$

Usually ships in 4-12 days

0

39

Ariens 20001360

CHOKE LVR & SCREW 136CC SUMMER

$8.99

$

Usually ships in 4-12 days

0

40

Ariens 20001243

NON-REMOVABLE PLASTIC PLUG

$5.99

$

In Stock, only 3 left!

0

41

Ariens 20001254

POLY PRE-FILTER P AIR CLEANER

$8.99

$

Usually ships in 4-12 days

0

43

Ariens 20001251

BREATHER TUBE

$4.99

$

In Stock, only 3 left!

0

49

Ariens 20001255

OIL DRAIN PLUG (W/WASHER)

$5.99

$

In Stock, only 1 left!

0

65

Ariens 20001189

TAPPET KIT (SET OF 2)

$7.49

$

Usually ships in 4-12 days

0

69

Ariens 20001350

CARB MTG STD KIT 136CC SUMMER

$11.99

$

Usually ships in 4-12 days

0

70

Ariens 20001184

CARBURETOR REPAIR KIT
(Superseded to 20001441)

$25.99

$

In Stock, Qty 13

0

77

Ariens 20001186

RECOIL BOLT KIT

$4.99

$

In Stock, Qty 8

0

81

Ariens 20001327

WOODRUFFF FLYWHEEL KEY 5-PACK

$7.49

$

Usually ships in 4-12 days

0

82

Ariens 20001326

CARBURETOR SPACER

$7.49

$

Usually ships in 4-12 days

0

85

Ariens 20001342

FUEL TANK STRAINER

$4.99

$

In Stock, only 1 left!

0

86

Ariens 20001358

HEAD BLT KIT 136-179-208-254CC

$7.49

$

Usually ships in 4-12 days

0

87

Ariens 20001356

CRANKCASE COVER BOLT KIT 136CC

$11.99

$

Usually ships in 4-12 days

0

88

Ariens 20001353

MUFFLER MTG STUD KIT

$7.99

$

In Stock, only 1 left!

0

91

Ariens 20001416

CRANKCASE GASKET KIT (136CC)

$22.99

$

Usually ships in 4-12 days
