08201321 - Gravely MX800v Yamaha Replacement Engine Crankcase Parts Diagram

MX800v Yamaha Replacement Engine

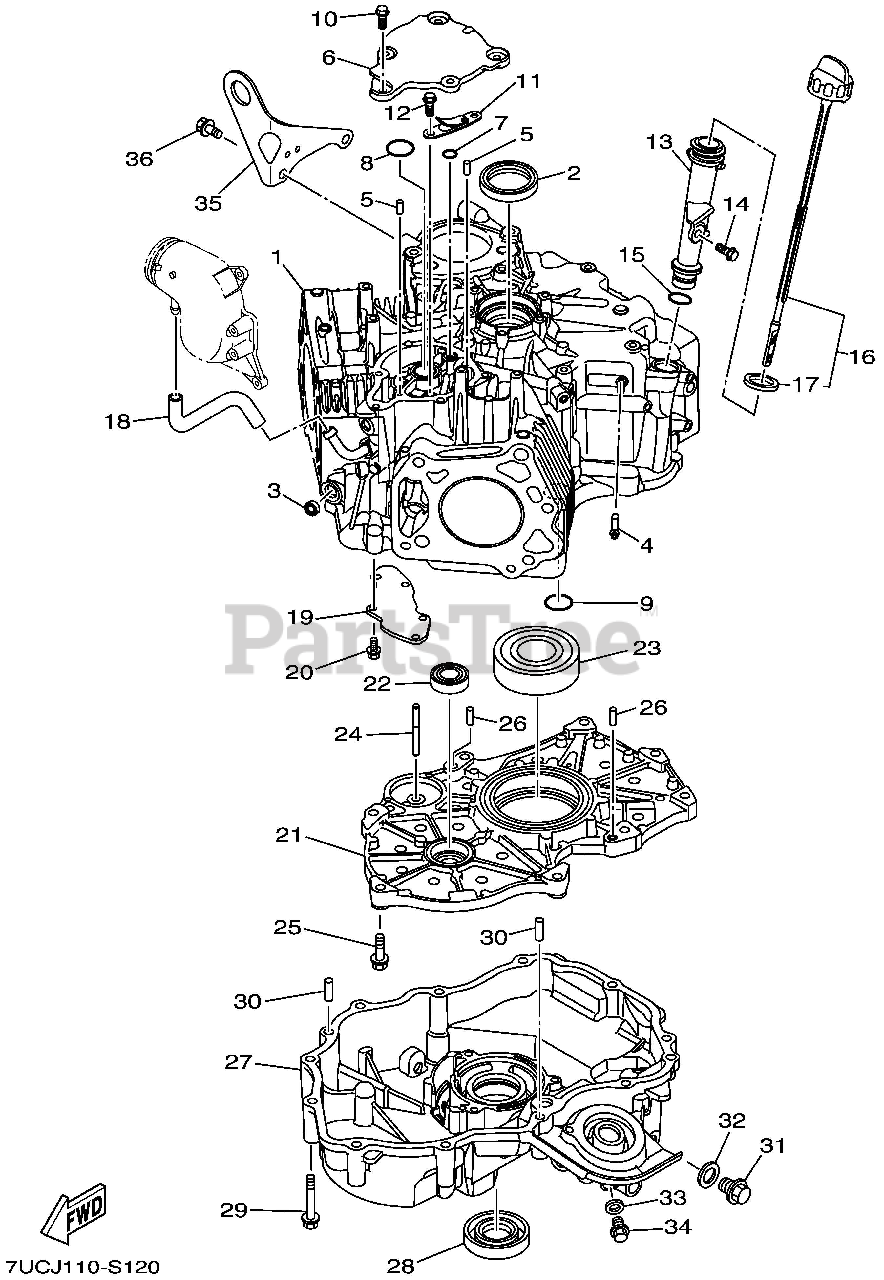

Crankcase Parts Diagram

  • Title

1

Gravely 21563252

CRANKCASE ASSY 1

$948.99

$

Usually ships in 4-12 days

0

2

Gravely 21563031

OIL SEAL

$28.99

$

Usually ships in 4-12 days

0

3

Gravely 21563032

OIL SEAL

$6.99

$

Usually ships in 4-12 days

0

4

Gravely 21563197

PIPE, JOINT

$10.99

$

Usually ships in 4-12 days

0

5

Gravely 21563066

PIN

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 21563212

COVER, AIR CLEANER

$34.99

$

Usually ships in 4-12 days

0

7

Gravely 21563033

O-RING

$5.99

$

Usually ships in 4-12 days

0

8

Gravely 21563240

O-RING

$4.99

$

Usually ships in 4-12 days

0

9

Gravely 21563239

O-RING

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 21563058

BOLT, FLANGE

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 21563177

REED VALVE ASSY

$14.99

$

Usually ships in 4-12 days

0

12

Gravely 21563057

BOLT, FLANGE

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 21563207

PIPE, OIL

$28.99

$

Usually ships in 4-12 days

0

14

Gravely 21563056

BOLT, FLANGE

$4.49

$

Usually ships in 4-12 days

0

15

Gravely 21563034

O-RING

$6.49

$

Usually ships in 4-12 days

0

16

Gravely 21563209

GAUGE, LEVEL

$20.99

$

Usually ships in 4-12 days

0

17

Gravely 21563016

GASKET

$6.49

$

Usually ships in 4-12 days

0

18

Gravely 21563246

HOSE

$14.99

$

Usually ships in 4-12 days

0

19

Gravely 21563214

COVER 2

$20.99

$

Usually ships in 4-12 days

0

20

Gravely 21563058

BOLT, FLANGE

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 21563211

COVER, CRANKCASE 1

$190.99

$

Usually ships in 4-12 days

0

22

Gravely 21563241

BEARING

$25.99

$

Usually ships in 4-12 days

0

23

Gravely 21563242

BEARING

$116.99

$

Usually ships in 4-12 days

0

24

Gravely 21563116

SHAFT, FLYWEIGHT

$6.49

$

Usually ships in 4-12 days

0

25

Gravely 21563051

BOLT, FLANGE

$3.99

$

Usually ships in 4-12 days

0

26

Gravely 21563067

PIN, DOWEL

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 21563213

COVER, CRANKCASE 2

$455.99

$

Usually ships in 4-12 days

0

28

Gravely 21563030

OIL SEAL

$28.99

$

In Stock, only 1 left!

0

29

Gravely 21563052

BOLT, FLANGE

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 21563067

PIN, DOWEL

$3.99

$

Usually ships in 4-12 days

0

31

Gravely 21563013

PLUG, STRAIGHT SCREW

$6.49

$

Usually ships in 4-12 days

0

32

Gravely 21563072

GASKET

$4.49

$

Usually ships in 4-12 days

0

33

Gravely 21563015

GASKET

$6.49

$

Usually ships in 4-12 days

0

34

Gravely 21563002

BOLT, FLANGE

$6.49

$

Usually ships in 4-12 days

0

35

Gravely 21563261

HANGER, ENGINE 2

$88.99

$

Usually ships in 4-12 days

0

36

Gravely 21563061

BOLT, FLANGE

$3.99

$

Usually ships in 4-12 days

0
