08201340 - Gravely 764 Replacement Engine with Canister Air Filter Air Filter Assembly Parts Diagram

764 Replacement Engine with Canister Air Filter

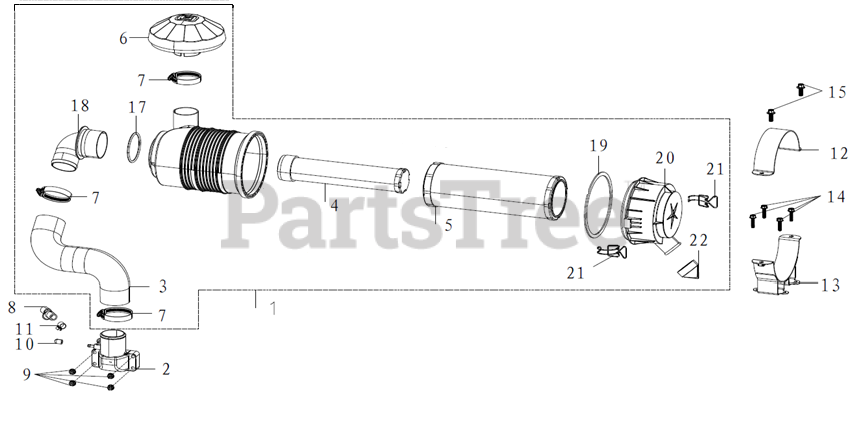

Air Filter Assembly Parts Diagram

  • Title

1

Gravely 21110605

AIR FILTER ASSEMBLY KIT

$162.99

$

Usually ships in 4-12 days

0

2

Gravely 21570400

AIR FILTER SEAT

$39.99

$

Usually ships in 4-12 days

0

3

Gravely 21110577

TUBE, AIR CLEANER CONNECTING

$63.99

$

Usually ships in 4-12 days

0

4

Gravely 21573100

FILTER, ELEMENT INNER

$25.99

$

In Stock, Qty 5

0

5

Gravely 21573200

ELEMENT, AIR FILTER

$33.99

$

In Stock, only 3 left!

0

6

Gravely 21110580

RAIN COVER OF AIR FILTER

$30.99

$

Usually ships in 4-12 days

0

7

Gravely 21110581

CLIP COMBINATION

$15.99

$

Usually ships in 4-12 days

0

8

Gravely 21571900

BREATHER TUBE

$12.99

$

Usually ships in 4-12 days

0

9

Gravely 21100192

NUT, FLANGE

$0.99

$

Usually ships in 4-12 days

0

10

Gravely 21571100

PLUG

$1.99

$

Usually ships in 4-12 days

0

11

Gravely 21573000

CLAMP, HOOP HOSE

$1.99

$

Usually ships in 4-12 days

0

12

Gravely 21570100

BRKT, AIR FILTER-SUPPORT A

$17.99

$

Usually ships in 4-12 days

0

13

Gravely 21570200

BRKT, AIR FILTER-SUPPORT B

$17.99

$

Usually ships in 4-12 days

0

14

Gravely 21110541

HEXAGON BOLT WITH FLANGE

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 21110543

HEXAGON BOLT WITH FLANGE

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 21110583

RING, SEAL

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 21110584

TUBE, AIR CLEANER CONNECTING

$47.99

$

Usually ships in 4-12 days

0

19

Gravely 21110585

RING, SEAL

$6.49

$

Usually ships in 4-12 days

0

20

Gravely 21110586

CAP, AIR CLEANER CASE

$47.99

$

Usually ships in 4-12 days

0

21

Gravely 21110587

HOOP ASSEMBLY

$2.99

$

Usually ships in 4-12 days

0

22

Gravely 21110588

COVER, AIR CLEANER CASE CAP

$23.99

$

Usually ships in 4-12 days

0
