08201409 - Ariens LC 99cc Engine Crankshaft Piston Parts Diagram

LC 99cc Engine

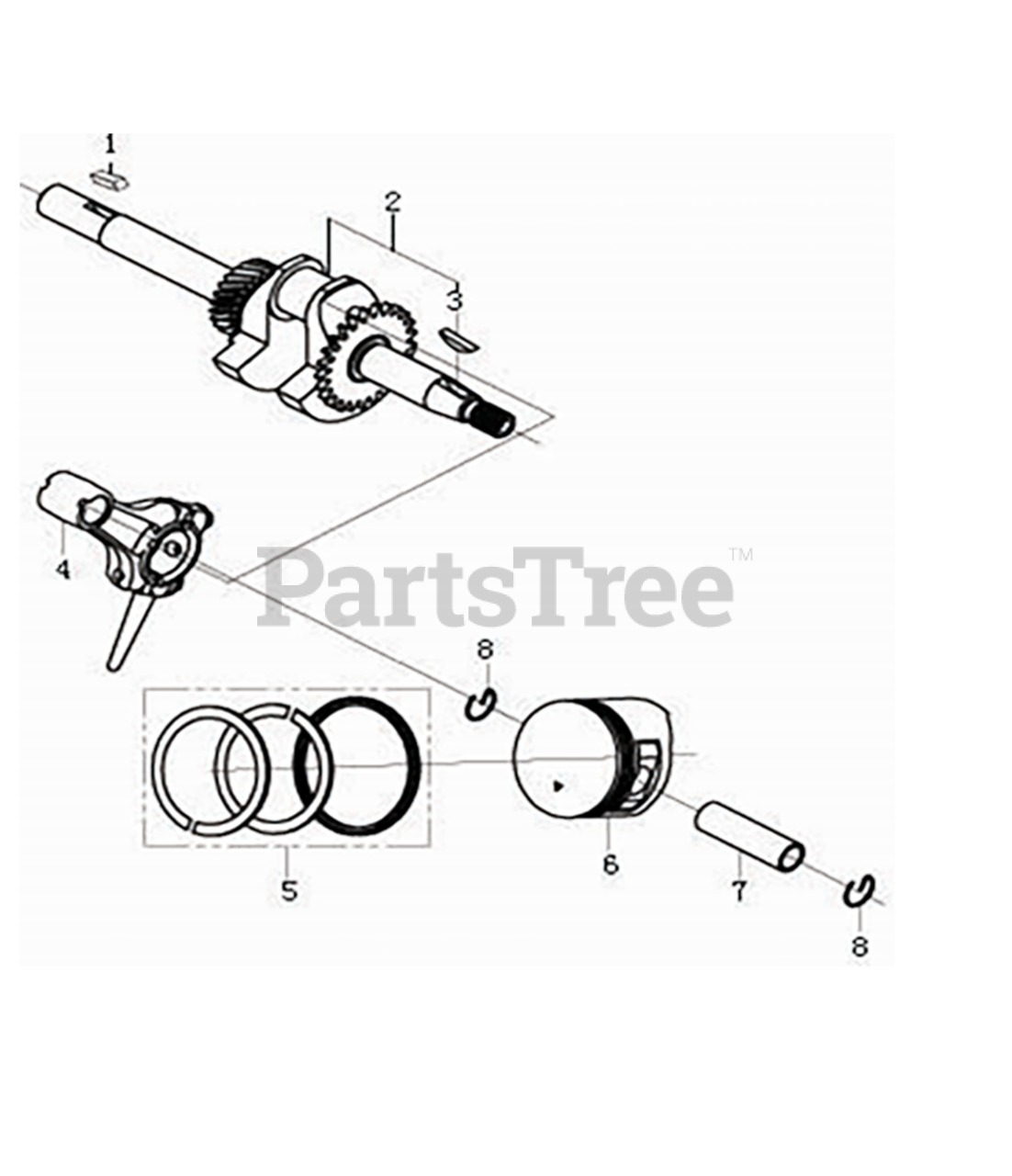

Crankshaft Piston Parts Diagram

  • Title

1

Ariens 06600229

KEY, WDRF .157 X .630

$

$

Currently unavailable

2

crankshaft

Note: Not Available Separte, Order Complete Engine

$

$

Not available

3

Ariens 21501724

Key

$1.49

$

Usually ships in 4-12 days

0

4

Connecting rod

Note: Not Available Separte, Order Complete Engine

$

$

Not available

5

Piston ring combination

Note: Not Available Separte, Order Complete Engine

$

$

Not available

6

Piston

Note: Not Available Separte, Order Complete Engine

$

$

Not available

7

Piston pin

Note: Not Available Separte, Order Complete Engine

$

$

Not available

8

Steel cable baffle ring

Note: Not Available Separte, Order Complete Engine

$

$

Not available
