08201409 - Ariens LC 99cc Engine Cylinder Head Parts Diagram

LC 99cc Engine

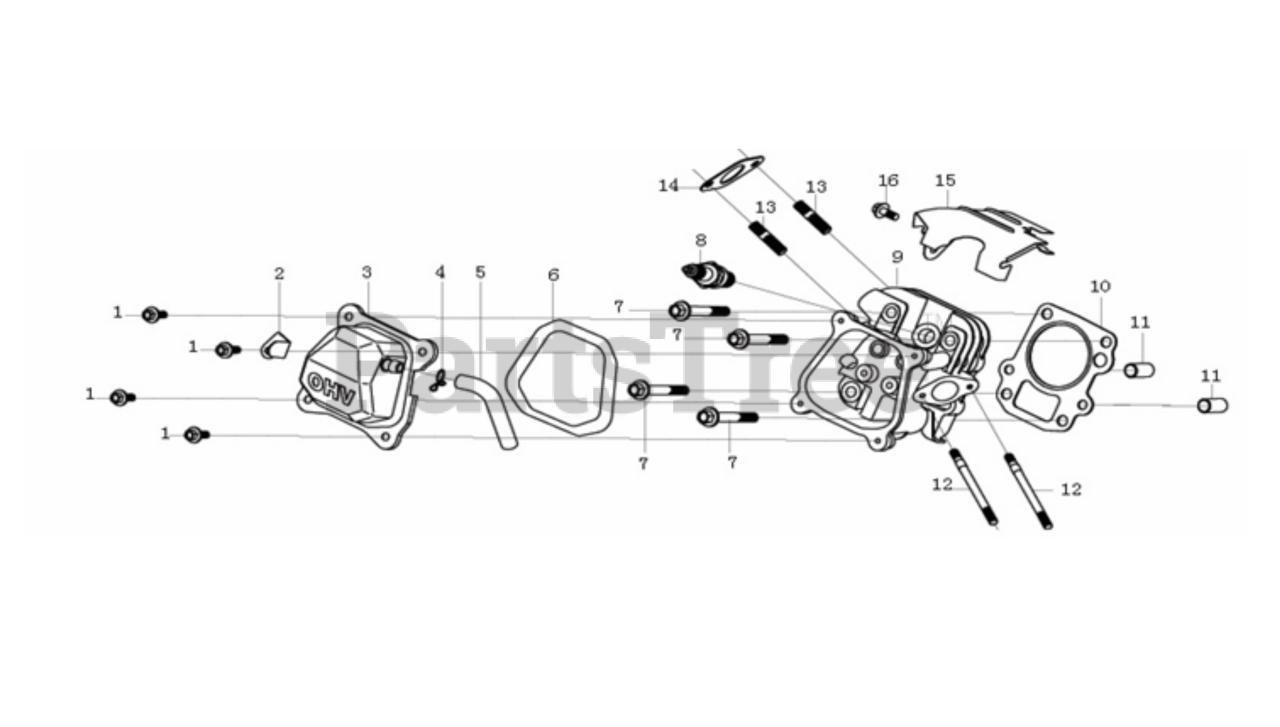

Cylinder Head Parts Diagram

  • Title

1

Ariens 21501716

Hexagon Bolt with Flange

$0.99

$

Usually ships in 4-12 days

0

2

Ariens 21501736

Cable Cleat

$1.49

$

Usually ships in 4-12 days

0

3

Ariens 21501607

Valve Cover Assembly

$9.49

$

Usually ships in 4-12 days

0

4

Ariens 21501738

Pipe Clip

$

$

Not available

5

Ariens 21501728

Breather Tube

$2.99

$

Usually ships in 4-12 days

0

6

Ariens 21501608

Valve Cover Gasket

$2.99

$

Usually ships in 4-12 days

0

7

Ariens 21110542

Hexagon Bolt with Flange

$4.99

$

Usually ships in 4-12 days

0

8

Ariens 21100123

Spark Plug, Loncin 160CC

$5.99

$

In Stock, Qty 11

0

9

Ariens 21501605

Cylinder Head

$45.99

$

Usually ships in 4-12 days

0

10

Ariens 21501606

Head Gasket

$6.49

$

Usually ships in 4-12 days

0

11

Ariens 21501723

Location Pin

$1.49

$

Usually ships in 4-12 days

0

12

Ariens 21501720

Stud

$2.49

$

Usually ships in 4-12 days

0

13

Ariens 21110548

Stud

$4.99

$

Usually ships in 4-12 days

0

14

Ariens 21501705

Outlet Gasket

$2.49

$

Usually ships in 4-12 days

0

15

Ariens 21501619

Air Deflector

$3.99

$

Usually ships in 4-12 days

0

16

Ariens 21501712

Hexagon Bolt with Flange

$0.99

$

Usually ships in 4-12 days

0
