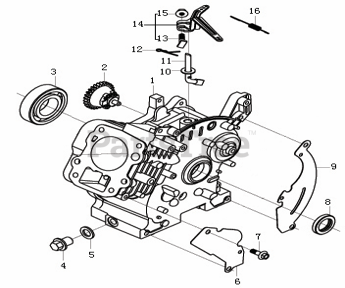

08201429 - Ariens LC 99cc Engine Crankcase Parts Diagram

LC 99cc Engine

Crankcase Parts Diagram

  • Title

1

Ariens 21586700

Crankcase body

Note: Not Available Separate, Order Complete Engine

$103.99

$

Usually ships in 4-12 days

0

2

Ariens 21501701

Components of governor gear

$11.99

$

Usually ships in 4-12 days

0

3

Bearing

Note: Not Available Separate, Order Complete Engine

$

$

Not available

4

Ariens 21501601

Sealing plug screw

$1.99

$

Usually ships in 4-12 days

0

5

Ariens 21501722

Flat washer

$

$

Not available

6

Ariens 21501620

Side plate

$2.99

$

Usually ships in 4-12 days

0

7

Ariens 21501713

Hexagon bolt with flange

$1.49

$

Usually ships in 4-12 days

0

8

Ariens 21501727

Oil seal

$3.49

$

Usually ships in 4-12 days

0

9

Ariens 21586800

Side plate

$2.99

$

Usually ships in 4-12 days

0

10

Flat washer

Note: Not Available Separate, Order Complete Engine

$

$

Not available

11

Speed regulating arm

Note: Not Available Separate, Order Complete Engine

$

$

Not available

12

Ariens 21100154

PIN, LOCK

$

$

Not available

13

Square head set screw with flat point

Note: Not Available Separate, Order Complete Engine

$

$

Not available

14

Ariens 21501639

Speed regulating bracket

Note: Incudes Item 13, 15

$5.49

$

Usually ships in 4-12 days

0

15

Ariens 21501721

Hexagon nut with flange

$1.49

$

Usually ships in 4-12 days

0

16

Ariens 21501637

Governing spring

$1.99

$

Usually ships in 4-12 days

0
