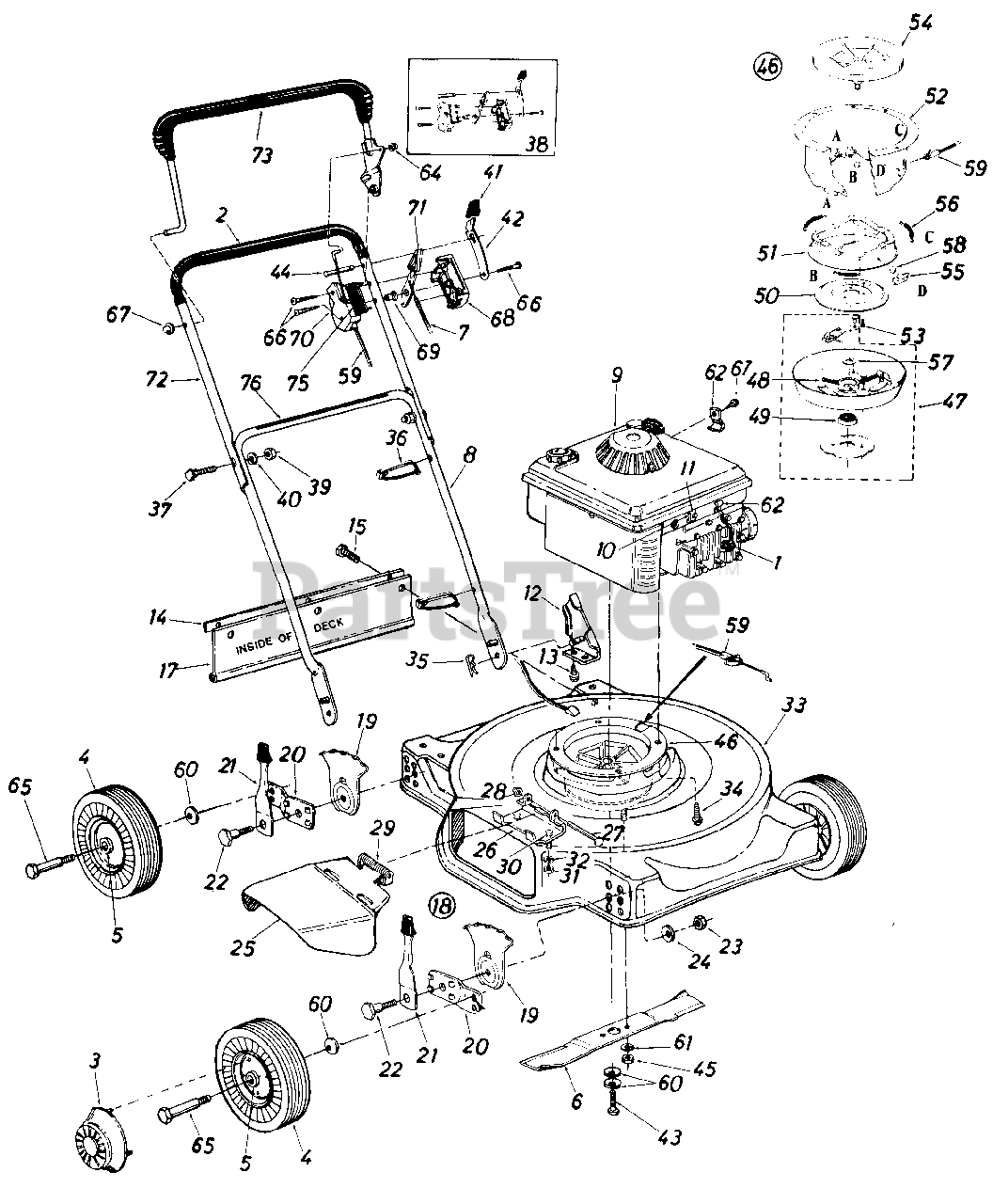

Turf Power 0864039 (117-084-145) - Turf Power Walk-Behind Mower (1987) (Stambaugh Thompson) Parts Parts Lookup and Diagrams

Back to Walk-Behind Mowers

Search within parts diagrams

All Diagrams (1) Parts

Parts Parts

MTD 734-0639

Twinline 7 x 1.1-Ball Brgs. 3/8" I.D.

Currently unavailable

MTD 734-0661

Twinline Tread

Unavailable

MTD 734-1161

Plastic Rim (7 x 1.5)

Unavailable

MTD 734-0643

Twinline Tread

Unavailable

MTD 734-0841

Wheel Ass'y. (8")

Unavailable

MTD 8074-000-7

Hardware Pack

Currently unavailable

MTD 742-0222

22" Blade

(084)

Unavailable

MTD 734-0876

Steel Rim Twinline Tread (7 x 1.5)

Unavailable

MTD 16302

22" Deck Ass'y.

Currently unavailable

MTD 734-0645

Waffle Tread

Unavailable

MTD 734-1162

Plastic Rim (8 x 1.75)

Unavailable

MTD 741-0267

3/8" Ball Bearing

Unavailable

MTD 734-0840

Wheel Ass'y. Comp. 7.0" x 1.5

Unavailable

MTD 12936

Handle Mount Brkt. Ass'y.-R.H.

(Not Shown)

Unavailable

MTD 14579

Height Adjuster Kit

(Not Shown)

Superseded toMTD 753-06761

In Stock, Qty 6

$69.99

MTD 734-0893

Wheel Ass'y. Comp. Steel

Unavailable

MTD 710-0429

Screw, Hex B-Tap

Superseded toMTD 910-0429

Usually ships in 3 - 6 days

$3.99

MTD 734-0812

Steel Rim Waffle Tread (8 x 1.75)

Unavailable

MTD 734-0637

Wheel Ass'y. Comp. Waffle Tread Steel Rim (7")

Currently unavailable

MTD 741-0484

Ball Bearing

Superseded toMTD 941-0484

Usually ships in 3 - 6 days

$7.99

MTD 735-0639

Spark Plug Boot

Unavailable

MTD 718-0145

GRIP-SHRINK-25 IN

Currently unavailable

Hub Cap

Wheel Ass'y. Comp.

Bearing

20" Blade

(074)

Unavailable

MTD 746-0632

Throttle Cable, 55"

Superseded toMTD 946-0671A

In Stock, Qty 7

$14.99

MTD 749-0373

Lower Handle

Superseded toMTD 749-0928A

In Stock, Qty 7

$35.99

Turf Power

Engine

MTD 751-0442

Casing Clamp

Unavailable

MTD 710-0436

SCREW-HEX WASH HD

Superseded toMTD 710-0651

Usually ships in 3 - 6 days

$3.99

MTD 12935

Handle Mount Brkt. Ass'y.-L.H.

Unavailable

MTD 710-0603

SCREW-HEX WASH HD

Usually ships in 3 - 6 days

$5.49

MTD 14846

Retainer Strip

Unavailable

MTD 710-0776

Hex Screw, B-Tap .1/4"-14 X .625"

Superseded toMTD 710-0896

In Stock, Qty 10

$4.49

MTD 731-0575

Flap Assembly Rr

Superseded toMTD 731-1029

Unavailable

MTD 14578

Height Adjuster Kit

Superseded toMTD 753-06761

In Stock, Qty 6

$69.99

MTD 15261

Height Adjustment Plate

Superseded toMTD 787-01290A

In stock, only 2 left!

$12.99

MTD 15262

Pivot Bar

Superseded toMTD 15262B

In stock, only 1 left!

$15.99

MTD 14832

Lever and Knob Assembly

Superseded toMTD 94832

In stock, only 3 left!

$11.99

MTD 738-0507

Shoulder Screw, .5" X .434"

Superseded toMTD 938-0507B

In stock, 20+ on hand

$4.99

MTD 712-0798

Hex Nut, 3/8-16

In Stock, Qty 19

$4.49

MTD 736-0356

Bell Washer

Superseded toMTD 936-0356

Unavailable

MTD 14944

Chute Deflector Assembly Kit

Superseded toMTD 931-1034B

Unavailable

MTD 11130

Hinge Plate

Unavailable

MTD 711-0555

Pivot Pin

Unavailable

MTD 726-0106

Push Nut

Superseded toMTD 926-0106

Unavailable

MTD 732-0253

Torsion Spring

Unavailable

MTD 710-0289

Hex Screw, 1/4-20 X

Superseded toMTD 910-0289

In stock, only 3 left!

$3.99

MTD 712-0287

Hex Nut, 1/4-20

Superseded toMTD 912-0287

Unavailable

MTD 736-0329

Lock Washer

Superseded toMTD 936-0329

In stock, only 2 left!

$4.99

MTD 16300

DECK ASSEMBLY-20IN

Currently unavailable

MTD 710-0654

Hex Screw

Superseded toMTD 710-0654A

In stock, 20+ on hand

$4.99

MTD 714-0104

Cotter Pin, .072" X 1.13"

Superseded toMTD 914-0104

Unavailable

MTD 726-0240

Cable Tie, 7"

Superseded toMTD 725-0157

In Stock, Qty 8

$3.99

MTD 710-0671

Carr. Bolt 5/16-18 x 1.38"

Unavailable

MTD 753-0431

Control Housing Comp.

Unavailable

MTD 712-0267

Hex Nut, 5/16-18

Superseded toMTD 912-3010

In stock, 20+ on hand

$4.99

MTD 736-0119

Lock Washer, .03125"

Superseded toMTD 936-0119

In stock, 20+ on hand

$4.99

MTD 720-0190

Height Adjustment Knob

Superseded toMTD 731-13116-1

In stock, only 2 left!

$14.99

MTD 732-0401

Lockout Lever

Unavailable

MTD 710-0818

Hex Screw, 3/8"-24

In stock, only 2 left!

$7.49

MTD 711-0719

Lock Pin .75" Dia. x 1.80

Unavailable

MTD 712-0328

Hex Nut, 3/8-24

Superseded toMTD 712-0241

In Stock, Qty 7

$4.99

MTD 717-0482

Blade Brake Clutch Ass'y.-Comp.

Unavailable

MTD 14300

Clutch Blade Housing Ass'y.

Unavailable

MTD 732-0396

Compression Spring .35Ir O.D. x 2.00ll Lg.

Unavailable

MTD 741-0124

Ball Bearing

Superseded toMTD 941-0600

In Stock, Qty 11

$26.99

MTD 14304

Clutching Cone

Unavailable

MTD 14305

CONE-BRAKE CUP

Currently unavailable

MTD 14306

HOUSING-CLUTCH

Currently unavailable

MTD 710-0875

Hex Washer Head Screw, 1/4

In stock, only 1 left!

$4.49

MTD 719-0256

Fan Adapter

Unavailable

MTD 731-0520

Ball Block

Unavailable

MTD 732-0397

Extension Spring .35 O.D. x 1.75" Lg.

Unavailable

MTD 736-0333

Fl-Wash. .690ll I.D. x 1.060 O.D.

Unavailable

MTD 741-0326

Steel Ball .500" Dia.

Unavailable

MTD 746-0402A

Clutch Cable-43"

(Incl. Ref. 64)

Unavailable

MTD 736-0105

Bell Washer, .400" X .060" X .88"

In stock, 20+ on hand

$4.99

MTD 736-0169

Lock Washer, .375"

Superseded toMTD 936-0169

Unavailable

MTD 12894

Casing Clamp

Unavailable

MTD 726-0245

Push Cap

Unavailable

MTD 738-0102

Shoulder Screw, .498 Dia X 1.45

Superseded toMTD 938-0102

Unavailable

MTD 710-0796

Truss Machines Screw

In Stock, Qty 12

$5.99

MTD 726-0135

Speed Nut

In Stock, Qty 9

$7.49

MTD 731-0817

Control Panel Half

Unavailable

MTD 731-0524

Control Disc Pin

Unavailable

MTD 731-0816

Clutch Panel Half

Unavailable

MTD 731-0528

Throttle Control Lever

Superseded toMTD 931-0972

In Stock, Qty 12

$10.99

MTD 749-0536

Upper Handle (Chrome)

Superseded toMTD 749-0538E-0637

Unavailable

MTD 731-0609

Control Handle wlPlastic

Unavailable

MTD 777-5772

LABEL

Currently unavailable

MTD 777-5775

LABEL-BBC-INST

Currently unavailable
