09159500 - Gravely ZT 3400 Series Hydro-Gear Transmission 09159500 - ZT 3400 Series Parts Diagram

ZT 3400 Series Hydro-Gear Transmission

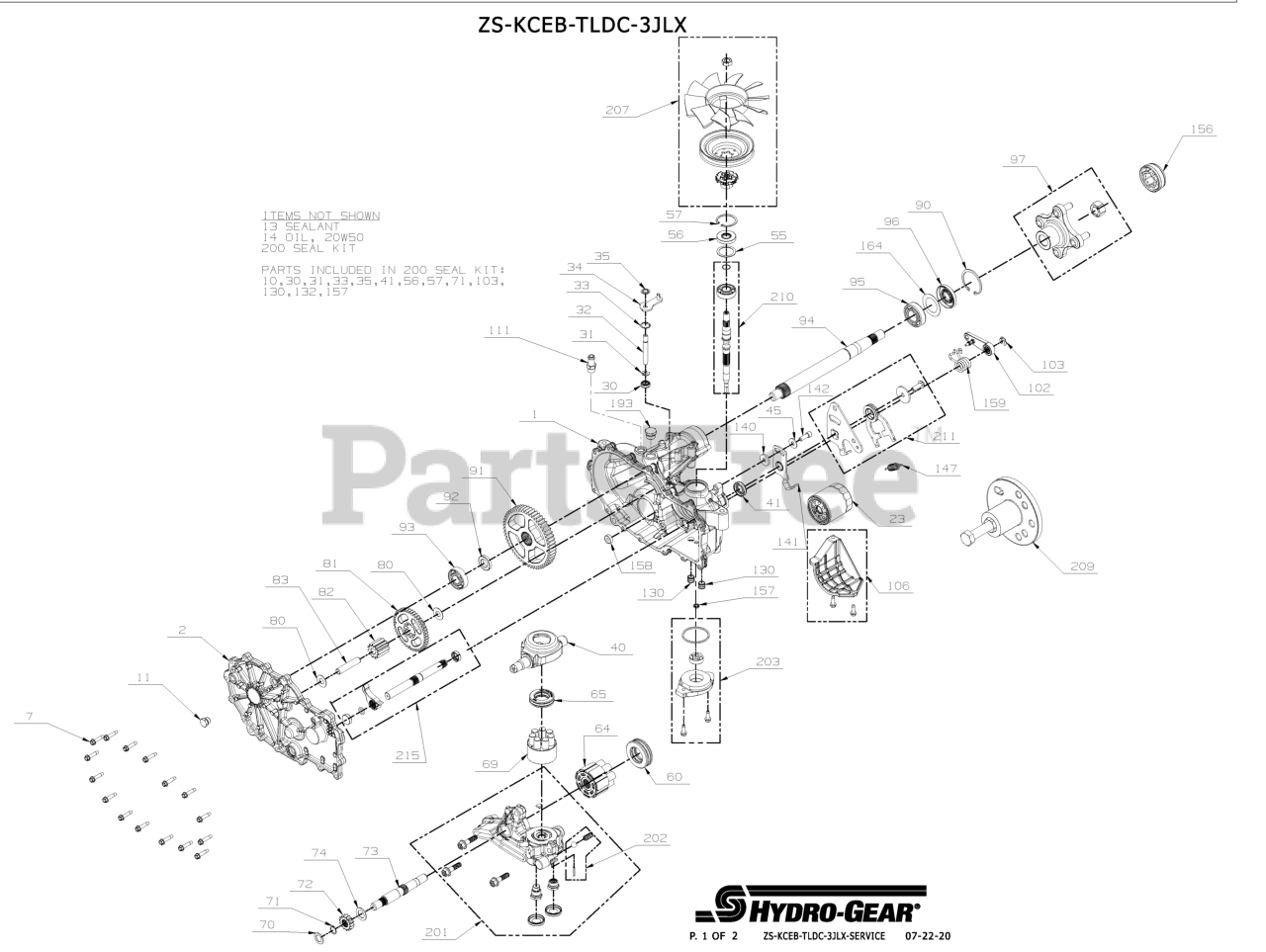

09159500 - ZT 3400 Series Parts Diagram

  • Title

1

KIT, MAIN HOUSING LH, CHARGE, CONTROL

Note: HG73245

$

$

Not available

2

KIT, COVER, SIDE LH

Note: HG73257

$

$

Not available

7

Gravely 27105900

SCREW,HEX WASHER 1/4-20X1.125

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 21500049

PLUG EXT HEX VENT 9/16 18

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 21543771

SEALANT TUBE 10.1OZ.

$116.99

$

In Stock, only 1 left!

0

14

Gravely 00058100

FLUID, HYDRO 20W50 QT

Note: Reccomended Oil Approximatley 72 oz

$15.99

$

Usually ships in 4-12 days

0

14

Gravely 00057100

FLUID, HYDRO 15W50 QT

Note: Optional Oil Approximatley 72 oz

$14.99

$

In Stock, Qty 7

0

23

Gravely 21544900

FILTER, HYDRO-GEAR 2800 TRANS
(Superseded to 21545100)

$27.99

$

Usually ships in 4-12 days

0

30

Gravely 21500013

Seal, lip .375 x 375 x 325

$4.99

$

In Stock, only 2 left!

0

31

Gravely 08622500

RING. RETAINING

$3.99

$

In Stock, Qty 11

0

32

ROD, BYPASS

Note: HG52136

$

$

Not available

33

Gravely 21543846

RING, RET .750

$

$

Not available

34

Gravely 21548901

HG BYPASS ARM (52370)

$10.99

$

Usually ships in 4-12 days

0

35

Gravely 21543848

RING, RTNG .

$3.99

$

In Stock, only 3 left!

0

40

Gravely 21543783

TRUNNION, SWASHPLATE

$70.99

$

Usually ships in 4-12 days

0

41

Gravely 21543809

SEAL, LIP 18X32X7

$9.49

$

Usually ships in 4-12 days

0

45

Gravely 08611200

WASHER

$3.99

$

Usually ships in 4-12 days

0

55

Gravely 21543773

WASHER 1.23X1.56X.04

$5.99

$

Usually ships in 4-12 days

0

56

Gravely 21543816

SEAL, LIP 17X40X7

$11.99

$

Usually ships in 4-12 days

0

57

Gravely 21543741

RING, RET 1.56 INT

$6.99

$

Usually ships in 4-12 days

0

60

Gravely 21548902

HG THRUST BEARING (51462)

$29.99

$

Usually ships in 4-12 days

0

64

Gravely 21548904

HG 16CC CYLINDER BLOCK (71579)

$77.99

$

In Stock, only 1 left!

0

65

Gravely 21548903

HG THRUST BLOCK (53502)

$

$

Not available

69

Gravely 21548905

HG SEVEN PISTON BLOCK (71971)

$86.99

$

Usually ships in 4-12 days

0

70

Gravely 21543708

WASHER .63X1.0X.05

$3.49

$

Usually ships in 4-12 days

0

71

Gravely 21543704

RING, RET 62 EXT

$1.99

$

Usually ships in 4-12 days

0

72

GEAR 14T STEEL

Note: HG52341

$

$

Not available

73

SHAFT, MOTOR

Note: HG52150

$

$

Not available

74

Gravely 21543788

WASHER .71 X 1.16 X .04

$

$

Not available

80

Gravely 21543724

WASHER .5X1.0X.032

$

$

Not available

81

GEAR 45 TOOTH

Note: HG52110

$

$

Not available

82

GEAR 11 TOOTH STEEL

Note: HG52586

$

$

Not available

83

Gravely 21543793

JACK SHAFT (PIN)

$

$

Not available

90

Gravely 08616500

RING, RETAINING

$9.49

$

Usually ships in 4-12 days

0

91

Gravely 21500035

GEAR, 54T

$68.99

$

Usually ships in 4-12 days

0

92

SPACER

Note: HG53336

$

$

Not available

93

Gravely 21500082

KIT, BEARING

$22.99

$

Usually ships in 4-12 days

0

94

Gravely 21500040

GEAR, 54T

$125.99

$

Usually ships in 4-12 days

0

95

Gravely 08614000

BEARING, BALL 25.4 X 52 X 15

$23.99

$

In Stock, only 1 left!

0

96

Gravely 08614300

SEAL, LIP

$14.99

$

In Stock, Qty 5

0

97

Gravely 21500051

KIT, HUB 4 BOLT

$83.99

$

Usually ships in 4-12 days

0

102

Gravely 21544068

KIT, BRAKE ARM LEFT HAND
(Superseded to 21548906)

$25.99

$

Usually ships in 4-12 days

0

103

Gravely 21544007

CLIP,BRAKE ARM HYDROGEAR 52027

$5.99

$

In Stock, only 1 left!

0

106

KIT, FILTER GUARD

Note: HG71854

$

$

Not available

111

Gravely 21544058

KIT, FITTING 1/2 BEADED 9/16

$34.99

$

Usually ships in 4-12 days

0

130

TUBE CHARGE TRIPLE ORING

Note: HG54501

$

$

Not available

140

Gravely 21543870

SPACER

$

$

Not available

141

Gravely 21543867

ARM, NEUTRAL LEFT

$12.99

$

Usually ships in 4-12 days

0

142

Gravely 21543843

SHCS 5/16-24X1 PATCH

$

$

Not available

147

Gravely TCU19204

SPRING, EXTENSION

$

$

Not available

156

Gravely 21500034

CAP, AXLE

$4.99

$

Usually ships in 4-12 days

0

157

KIT GEROTOR SEAL

Note: HG72291

$

$

Not available

158

Gravely 21543799

MAGNET, RING

$2.49

$

Usually ships in 4-12 days

0

159

Gravely 21500036

SPRING, TORSION, CW

$10.99

$

Usually ships in 4-12 days

0

164

WASHER, 1.355 x 2.035 x .021 FLAT

Note: HG53514

$

$

Not available

193

PLUG, 3/4-16

Note: HG54974

$

$

Not available

200

Gravely 21544034

HG SEAL KIT (71976)

$58.99

$

Usually ships in 4-12 days

0

201

Gravely 21500073

KIT, CENTER SECTION, LH CHARGE

$339.99

$

Usually ships in 4-12 days

0

202

KIT CHARGE RELIEF

Note: HG71436

$

$

Not available

203

Gravely 21544071

KIT, CHARGE PUMP

$109.99

$

Usually ships in 4-12 days

0

207

Gravely 21544079

KIT, FAN/PULLEY

$77.99

$

In Stock, only 3 left!

0

209

Gravely 21544008

HUB PULLER 5 BLT

Note: Optional Service Tool

$452.99

$

Usually ships in 4-12 days

0

210

Gravely 21544039

INPUT SHAFT HG 71978

$

$

Not available

211

RING, RTNG .

Note: HG71592

$

$

Not available

215

KIT, OUTBOARD, RH ROT B / LH ROT A

Note: HG73119

$

$

Not available
