09160800 - Gravely ZT 2800 Series Hydro-Gear Transmission Transmission - 09160800 Parts Diagram

ZT 2800 Series Hydro-Gear Transmission

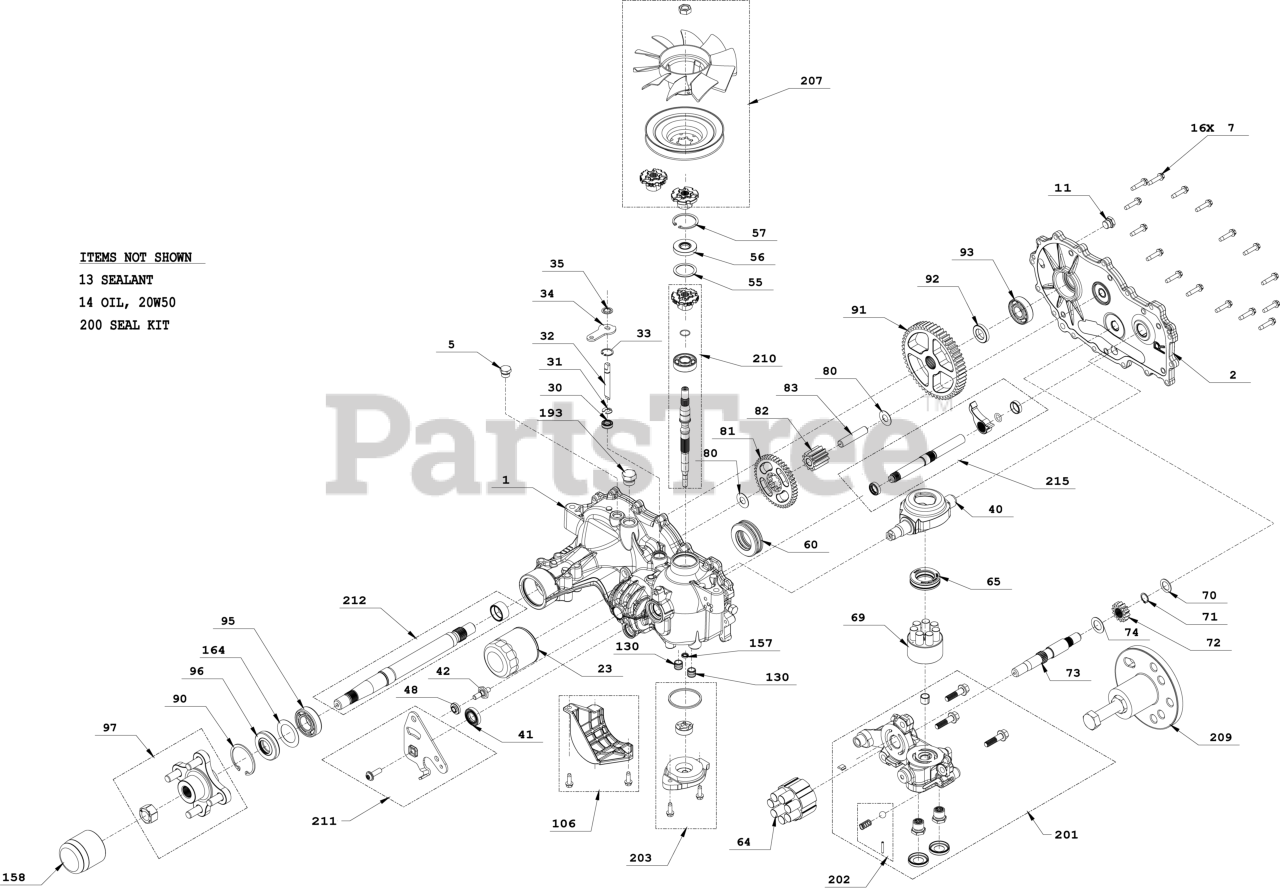

Transmission - 09160800 Parts Diagram

  • Title

1

KIT, HOUSING, MAIN, RH, CHRG, CNTL

Note: Hydro-Gear Part  73081

$

$

Not available

2

KIT, SIDE COVER, RH

Note: Hydro-Gear Part  73099

$

$

Not available

5

Gravely 21500049

PLUG EXT HEX VENT 9/16 18

$6.49

$

Usually ships in 4-12 days

0

7

Gravely 27105900

SCREW,HEX WASHER 1/4-20X1.125

$2.99

$

In Stock, only 3 left!

0

11

Gravely 21500049

PLUG EXT HEX VENT 9/16 18

$6.49

$

Usually ships in 4-12 days

0

13

Gravely 21543771

SEALANT TUBE 10.1OZ.

$171.99

$

In Stock, only 1 left!

0

14

Gravely 00057100

FLUID, HYDRO 15W50 QT

Note: Approximate Capacity 72 oz

$14.99

$

In Stock, Qty 20+

0

14

Gravely 00058100

FLUID, HYDRO 20W50 QT

Note: Optional for Residential use 72 oz

$14.99

$

Usually ships in 4-12 days

0

23

Gravely 21544900

FILTER, HYDRO-GEAR 2800 TRANS
(Superseded to 21545100)

$42.99

$

Usually ships in 4-12 days

0

30

Gravely 21500013

Seal, lip .375 x 375 x 325

$5.49

$

In Stock, only 3 left!

0

31

Gravely 08622500

RING. RETAINING

$4.49

$

In Stock, Qty 9

0

32

ROD, BYPASS

Note: Hydro-Gear Part  52136

$

$

Not available

33

Gravely 21543846

RING, RET .750

$

$

Not available

34

Gravely 21543847

ARM, BYPASS

$

$

Not available

35

Gravely 21543848

RING, RTNG .

$3.99

$

In Stock, only 2 left!

0

40

Gravely 21543783

TRUNNION, SWASHPLATE

$73.99

$

Usually ships in 4-12 days

0

41

Gravely 21543809

SEAL, LIP 18X32X7

$9.99

$

Usually ships in 4-12 days

0

42

Gravely 08611000

STUD. SHORT 5/16-24

$

$

Not available

48

SPACER

Note: Hydro-Gear Part  51846

$

$

Not available

55

Gravely 21543773

WASHER 1.23X1.56X.04

$6.49

$

In Stock, only 1 left!

0

56

Gravely 21543816

SEAL, LIP 17X40X7

$15.99

$

Usually ships in 4-12 days

0

57

Gravely 21543741

RING, RET 1.56 INT

$7.49

$

Usually ships in 4-12 days

0

60

Gravely 21548902

HG THRUST BEARING (51462)

$32.99

$

Usually ships in 4-12 days

0

64

Gravely 21548904

HG 16CC CYLINDER BLOCK (71579)

$78.99

$

In Stock, only 3 left!

0

65

Gravely 08609100

BEARING. THRUST 30 X 52 X 13

$19.99

$

Usually ships in 4-12 days

0

69

Gravely 21543921

ASSY, BLOCK 7 PISTON

$145.99

$

Usually ships in 4-12 days

0

70

Gravely 21543708

WASHER .63X1.0X.05

$3.99

$

Usually ships in 4-12 days

0

71

Gravely 21543704

RING, RET 62 EXT

$1.99

$

Usually ships in 4-12 days

0

72

GEAR, 14T

Note: Hydro-Gear Part  52109

$

$

Not available

73

SHAFT, MOTOR

Note: Hydro-Gear Part  52150

$

$

Not available

74

Gravely 21543788

WASHER .71 X 1.16 X .04

$

$

Not available

80

Gravely 21543724

WASHER .5X1.0X.032

$

$

Not available

81

GEAR 45 TOOTH

Note: Hydro-Gear Part  52110

$

$

Not available

82

GEAR, 11T

Note: Hydro-Gear Part  52583

$

$

Not available

83

Gravely 21543793

JACK SHAFT (PIN)

$

$

Not available

90

Gravely 08616500

RING, RETAINING

$9.99

$

Usually ships in 4-12 days

0

91

GEAR 54 TOOTH

Note: Hydro-Gear Part  52108

$

$

Not available

92

SPACER

Note: Hydro-Gear Part  53336

$

$

Not available

93

Gravely 21500082

KIT, BEARING

$23.99

$

Usually ships in 4-12 days

0

95

Gravely 08614000

BEARING, BALL 25.4 X 52 X 15

$25.99

$

In Stock, only 2 left!

0

96

Gravely 08614300

SEAL, LIP

$18.99

$

In Stock, only 1 left!

0

97

Gravely 21544061

KIT, HUB 4 BOLT

$96.99

$

Usually ships in 4-12 days

0

106

KIT FILTER GUARD

Note: Hydro-Gear Part  73041

$

$

Not available

130

TUBE CHARGE TRIPLE ORING

Note: Hydro-Gear Part  54501

$

$

Not available

157

KIT GEROTOR SEAL

Note: Hydro-Gear Part  72291

$

$

Not available

158

Gravely 21500038

CAP, AXLE

$21.99

$

Usually ships in 4-12 days

0

164

WASHER, 1.355 x 2.035 x .021 FLAT

Note: Hydro-Gear Part  53514

$

$

Not available

193

PLUG, 3/4-16

Note: Hydro-Gear Part  54974

$

$

Not available

200

KIT, SEAL (ZT-2800)

Note: Hydro-Gear Part  73107

$

$

Not available

201

Gravely 21500080

KIT, CENTER SECTION, RH CHARGE

$120.99

$

Usually ships in 4-12 days

0

202

KIT CHARGE RELIEF

Note: Hydro-Gear Part  71436

$

$

Not available

203

Gravely 21544060

KIT, CHARGE

$98.99

$

In Stock, only 4 left!

0

207

KIT, FAN / PULLEY

Note: Hydro-Gear Part  72984

$

$

Not available

209

Gravely 21544008

HUB PULLER 5 BLT

Note: Service Tool

$461.99

$

Usually ships in 4-12 days

0

210

KIT INPUT SHAFT

Note: Hydro-Gear Part  73047

$

$

Not available

211

KIT, ARM, CONTROL

Note: Hydro-Gear Part  71634

$

$

Not available

212

KIT SHAFT AXLE

Note: Hydro-Gear Part  71569

$

$

Not available

215

KIT, OUTBOARD, RH ROT A / LH ROT B

Note: Hydro-Gear Part  73118

$

$

Not available
