09163000 - Gravely Parker HTG 16/310 Transmission 09163000 Parker HTG13/130 Parts Diagram

Parker HTG 16/310 Transmission

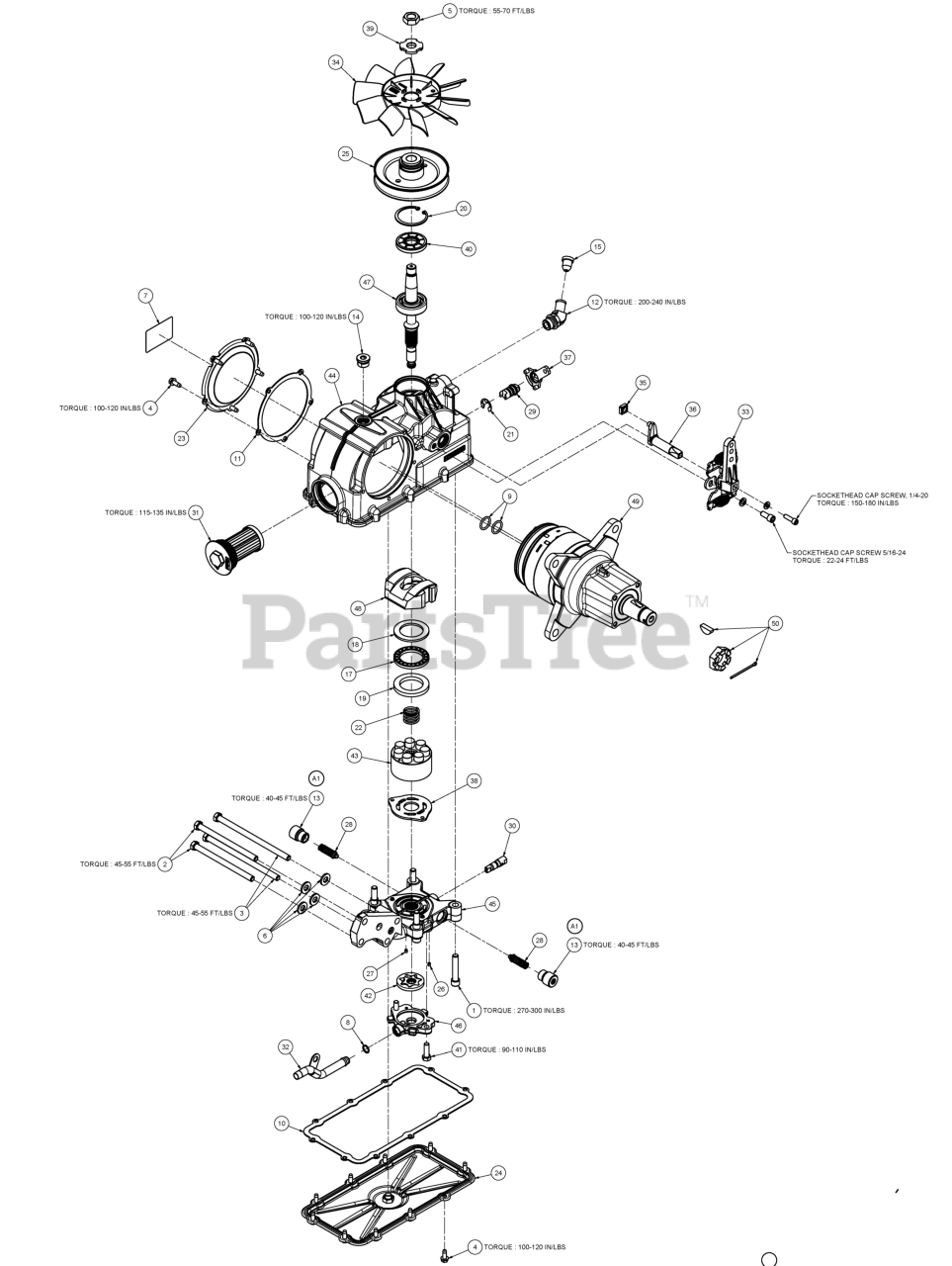

09163000 Parker HTG13/130 Parts Diagram

  • Title

Not Shown

Gravely 21545002

SECTION SEAL KIT

Note: Includes Item Number 8, 9, 10, 11,21, 40

$146.99

$

Usually ships in 4-12 days

0

Not Shown

Gravely 21545003

MOTOR SEAL KIT

Note: Includes All Internal Pump Seals

$158.99

$

Usually ships in 4-12 days

0

1

SCREW (3/8-16)

Note: Not Available

$

$

Not available

2

SPECIAL BOLT 3/8-24 UNF x 6.625

Note: Not Available

$

$

Not available

3

SPECIAL BOLT 3/8-24 UNF x 6.625

Note: Not Available

$

$

Not available

4

SCREW, THREAD FORMING 1/4-20 X .625

Note: Not Available

$

$

Not available

5

Gravely 21545025

NUT CHART

$11.99

$

Usually ships in 4-12 days

0

6

FLAT WASHER

Note: Not Available

$

$

Not available

7

LABEL

$

$

Not available

8

PACKING PREFORMED O-RING SEAL

Note: Not Available Separate Order Kit 21545002

$

$

Not available

9

PACKING PREFORMED O-RING SEAL

Note: Not Available Separate Order Kit 21545002

$

$

Not available

10

GASKET BOTTOM COVER FE

Note: Not Available Separate Order Kit 21545002

$

$

Not available

11

GASKET SIDE COVER

Note: Not Available Separate Order Kit 21545002

$

$

Not available

12

Gravely 21545006

FITTING, 45° BEADED HOSE BARB (SAE STE THD 3/4-16)

$35.99

$

Usually ships in 4-12 days

0

13

PLUG & O-RING ASSEMBLY

Note: Not Available

$

$

Not available

14

HOLLOW HEX VENT PLUG ASSEMBLY

Note: Not Available

$

$

Not available

15

Gravely 21545008

PLUG, RUBBER

$18.99

$

Usually ships in 4-12 days

0

16

PARKER HT-1000

$

$

Not available

17

THRUST BEARING

Note: Not Available

$

$

Not available

18

THRUST WASHER (I.D. 40MM)

Note: Not Available

$

$

Not available

19

WASHER, THRUST

Note: Not Available

$

$

Not available

20

Gravely 21545027

INTERNAL RETAINING RING (SHAFT SEAL)

$11.99

$

Usually ships in 4-12 days

0

21

Gravely 21545010

RETAINING RING

$11.99

$

Usually ships in 4-12 days

0

22

SPRING (CENTRAL)

Note: Not Available

$

$

Not available

23

SIDE COVER

Note: Not Available

$

$

Not available

24

SA, BOTTOM COVER

Note: Not Available

$

$

Not available

25

Gravely 21545011

PULLEY, TAPERED

$81.99

$

Usually ships in 4-12 days

0

26

Gravely 21545012

ORIFICE PLUG (Ø .031)

$23.99

$

Usually ships in 4-12 days

0

27

ORIFICE PLUG (Ø .044)

Note: Not Available

$

$

Not available

28

Gravely 21545013

RELIEF VALVE SUB-ASSEMBLY

$142.99

$

Usually ships in 4-12 days

0

29

SA, BYPASS

Note: Not Available

$

$

Not available

30

Gravely 21545014

S/A, CHARGE RELIEF

$71.99

$

Usually ships in 4-12 days

0

31

Gravely 21545028

TRANSMISSION OIL FILTER

$92.99

$

Usually ships in 4-12 days

0

32

FILTER TUBE (RH)

$

$

Not available

33

SN, RTN (RH) STANDARD SPRING

Note: Not Available

$

$

Not available

34

Gravely 21545024

$70.99

$

Usually ships in 4-12 days

0

34

Gravely 21545001

FAN KIT

Note: Includes Item number 5, 33, 38

$80.99

$

Usually ships in 4-12 days

0

35

CONTROL BLOCK

Note: Not Available

$

$

Not available

36

TRUNNION ARM, MACHINED

Note: Not Available

$

$

Not available

37

Gravely 21545019

$35.99

$

Usually ships in 4-12 days

0

38

PORT PLATE

$

$

Not available

39

SPACER,FAN

Note: Not Available

$

$

Not available

40

Gravely 21545026

SEAL, SHAFT

$40.99

$

Usually ships in 4-12 days

0

41

Gravely 21545031

SCREW, HEX HEAD UNRF

$3.99

$

Usually ships in 4-12 days

0

42

Gravely 21545020

ROTOR SET ASSEMBLY

$58.99

$

Usually ships in 4-12 days

0

43

PISTON & BARREL ASSEMBLY (16cc)

Note: Not Available

$

$

Not available

44

TOP HOUSING ASSEMBLY

Note: Not Available

$

$

Not available

45

END BLOCK ASSEMBLY (RH)

Note: Not Available

$

$

Not available

46

COVER - CHARGE PUMP

Note: Not Available

$

$

Not available

47

SA, SHAFT

Note: Not Available

$

$

Not available

48

SA, SWASH BLOCK

Note: Not Available

$

$

Not available

49

SA, MOTOR

Note: Not Available

$

$

Not available

50

Gravely 21501803

SERVICE KIT NUT, COTTER PIN & KEY

$15.99

$

Usually ships in 4-12 days

0
