09455200 - Parker Pump Transmission 09455200 - Parker Pump/HP2 Parts Diagram

Pump Transmission

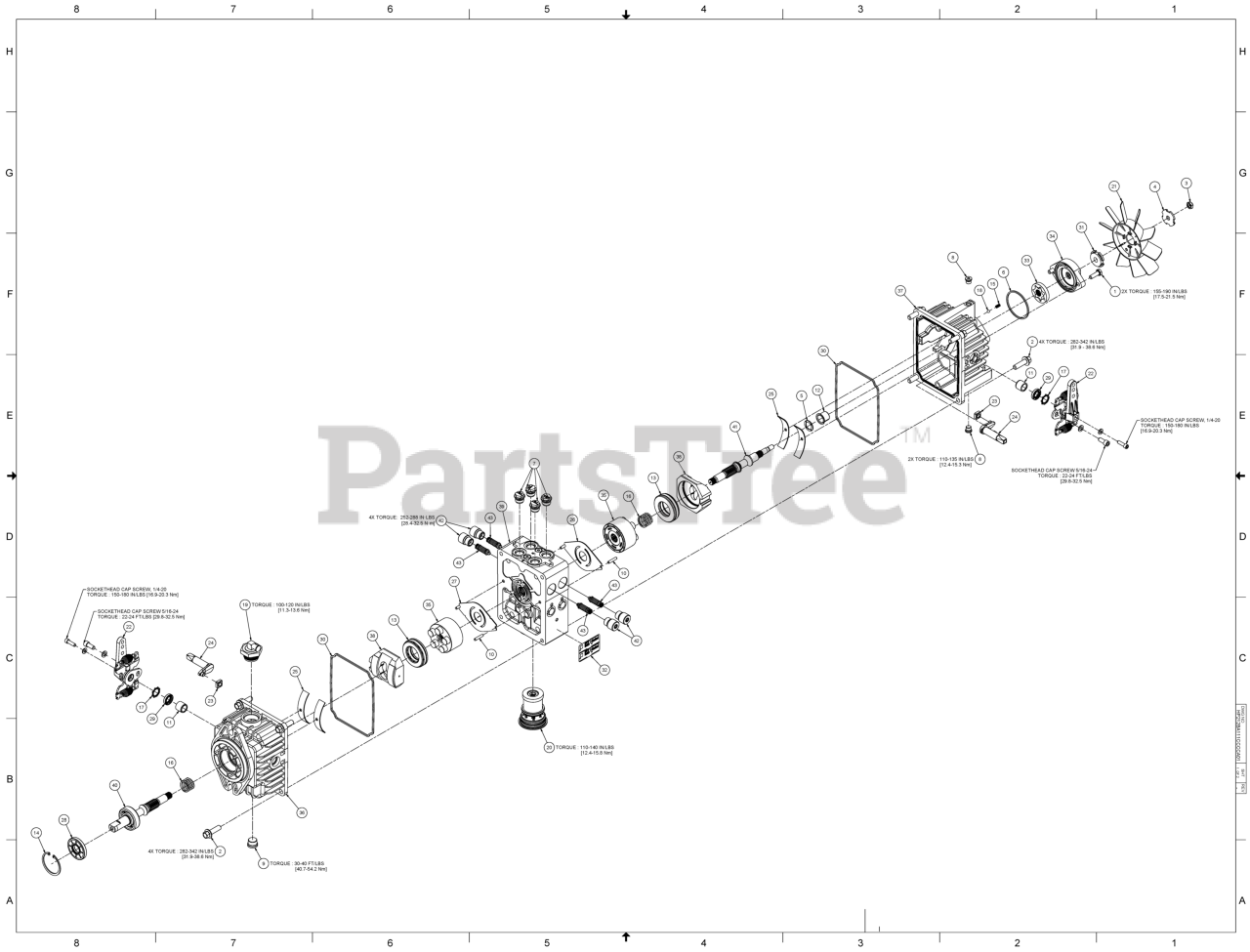

09455200 - Parker Pump/HP2 Parts Diagram

  • Title

1

Ariens 21569300

SCREW (CHARGE PUMP)

$3.99

$

Usually ships in 4-12 days

0

2

Ariens 21579600

SCREW (10MM)

$9.99

$

Usually ships in 4-12 days

0

3

Ariens 21579700

STOP NUT (FAN DRIVE)

$5.49

$

Usually ships in 4-12 days

0

4

Ariens 21579800

WASHER (FAN DRIVE)

$11.99

$

Usually ships in 4-12 days

0

5

Ariens 21579900

WASHER

$47.99

$

Usually ships in 4-12 days

0

6

Ariens 21580000

O-RING (CHARGE PUMP)

$9.99

$

Usually ships in 4-12 days

0

7

Ariens 21580100

PORT PLUG (3/4-16)

$6.49

$

Usually ships in 4-12 days

0

8

Ariens 21580200

HOLLOW HEX PLUG ASSM

$11.99

$

Usually ships in 4-12 days

0

9

Ariens 21580300

3/14-16 HOLLOW HEX PLUG

$29.99

$

Usually ships in 4-12 days

0

10

Ariens 21580400

DOWEL PIN

$2.99

$

Usually ships in 4-12 days

0

11

Ariens 21580500

BUSHING (TRUNNION ARM)

$65.99

$

Usually ships in 4-12 days

0

12

Ariens 21580600

BUSHING

$27.99

$

Usually ships in 4-12 days

0

13

Ariens 21580700

THRUST BEARING ASSM

$116.99

$

Usually ships in 4-12 days

0

14

Ariens 21545027

INTERNAL RETAINING RING

$11.99

$

Usually ships in 4-12 days

0

15

Ariens 21580800

SPRING

$9.99

$

Usually ships in 4-12 days

0

16

Ariens 21545043

SPRING (CENTRAL)

$

$

Not available

17

Ariens 21580900

RETAINING RING (TRUNNION ARM)

$2.49

$

Usually ships in 4-12 days

0

18

Ariens 21581000

BALL - 1/4"

$10.99

$

Usually ships in 4-12 days

0

19

Ariens 21581100

ADAPTOR ASSM

$64.99

$

Usually ships in 4-12 days

0

20

Ariens 21576800

FILTER- HP2 OIL

$75.99

$

Usually ships in 4-12 days

0

21

Ariens 21581200

FAN 7"

$46.99

$

Usually ships in 4-12 days

0

22

Ariens 21581300

SA- RTN - (RH)

$197.99

$

Usually ships in 4-12 days

0

23

Ariens 21545049

CONTROL BLOCK

$

$

Not available

24

Ariens 21545050

TRUNNION ARM, MACHINED

$

$

Not available

25

Ariens 21581400

CRADLE BUSHING

$31.99

$

Usually ships in 4-12 days

0

26

Ariens 21581500

PORT PLATE CW

$52.99

$

Usually ships in 4-12 days

0

27

Ariens 21581600

PORT PLATE CCW

$52.99

$

Usually ships in 4-12 days

0

28

Ariens 21581700

SEAL (SHAFT)

$15.99

$

Usually ships in 4-12 days

0

29

Ariens 21581800

SEAL (TRUNNION ARM)

$14.99

$

Usually ships in 4-12 days

0

30

Ariens 21581900

SEAL (TANDEM PUMP-HOUSING)

$15.99

$

Usually ships in 4-12 days

0

31

Ariens 21582000

FAN SPACER

$14.99

$

Usually ships in 4-12 days

0

32

LABEL

Note: Not available separately

$

$

Not available

33

Ariens 21582100

ROTOR SET ASM

$70.99

$

Usually ships in 4-12 days

0

34

Ariens 21582200

CHARGE PUMP ASM(3.2CC FAN DRI)

$263.99

$

Usually ships in 4-12 days

0

35

Ariens 21582300

PISTON & BARREL ASM 12CC

$277.99

$

Usually ships in 4-12 days

0

36

Ariens 21582400

FRONT HOUSING

$403.99

$

Usually ships in 4-12 days

0

37

Ariens 21582500

REAR HOUSING

$444.99

$

Usually ships in 4-12 days

0

38

Ariens 21582600

SWASH BLOCK ASM

$242.99

$

Usually ships in 4-12 days

0

39

Ariens 21582700

CENTER BLOCK ASM

$874.99

$

Usually ships in 4-12 days

0

40

Ariens 21582800

SHAFT ASM (20MM DOUBLE D)

$184.99

$

Usually ships in 4-12 days

0

41

Ariens 21582900

SHAFT (REAR FAN DRIVE)

$197.99

$

Usually ships in 4-12 days

0

42

Ariens 21583000

PLUG & O-RING ASM

$26.99

$

Usually ships in 4-12 days

0

43

Ariens 21583100

RELIEF VALVE SA .024"

$162.99

$

Usually ships in 4-12 days

0
