ZT 2800 Series Hydro-Gear Transmission

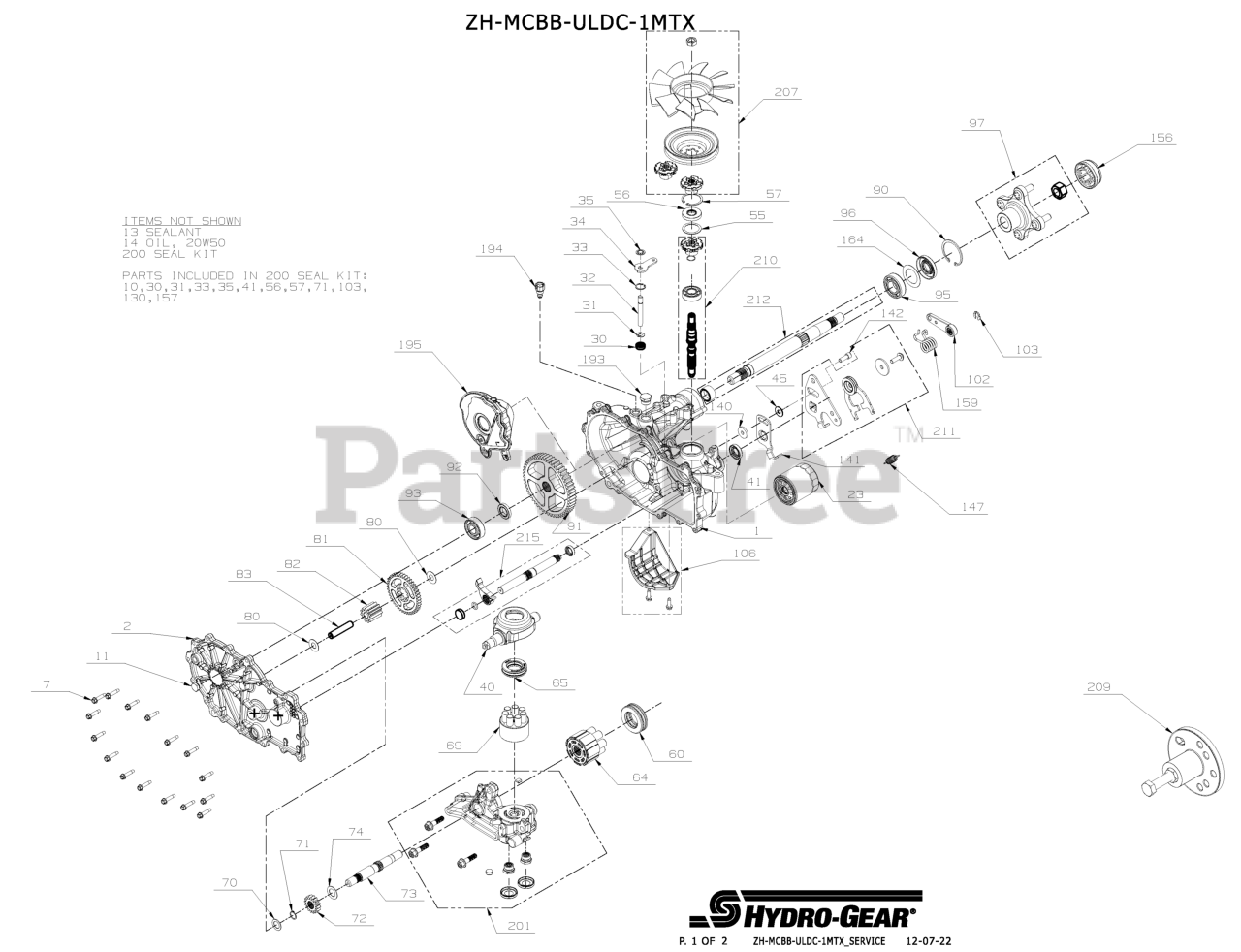

09483100 - ZT 2800 Series Transmission Parts Diagram

  • Title

1

KIT, HOUSING, MAIN, LH, CNTL

Note: HG73075

$

$

Not available

2

KIT, SIDE COVER, LH

Note: HG 73096

$

$

Not available

7

Gravely 27105900

SCREW,HEX WASHER 1/4-20X1.125

$2.99

$

In Stock, only 3 left!

0

11

Gravely 21500049

PLUG EXT HEX VENT 9/16 18

$6.49

$

Usually ships in 4-12 days

0

13

Gravely 21543771

SEALANT TUBE 10.1OZ.

$171.99

$

In Stock, only 1 left!

0

14

Gravely 00057100

FLUID, HYDRO 15W50 QT

Note: Recommended Transmission Oil. Approximately 64 oz

$14.99

$

In Stock, Qty 20+

0

14

Gravely 00058100

FLUID, HYDRO 20W50 QT

Note: Optional  Transmission Oil. Approximately 64 0z

$14.99

$

Usually ships in 4-12 days

0

23

Gravely 21544900

FILTER, HYDRO-GEAR 2800 TRANS
(Superseded to 21545100)

$42.99

$

Usually ships in 4-12 days

0

30

Gravely 21500013

Seal, lip .375 x 375 x 325

$5.49

$

In Stock, only 3 left!

0

31

Gravely 08622500

RING. RETAINING

$4.49

$

In Stock, Qty 9

0

32

ROD, BYPASS

Note: HG 52136

$

$

Not available

33

Gravely 21543846

RING, RET .750

$

$

Not available

34

Gravely 21543847

ARM, BYPASS

$

$

Not available

35

Gravely 21543848

RING, RTNG .

$3.99

$

In Stock, only 2 left!

0

40

Gravely 21543783

TRUNNION, SWASHPLATE

$73.99

$

Usually ships in 4-12 days

0

41

Gravely 21543809

SEAL, LIP 18X32X7

$9.99

$

Usually ships in 4-12 days

0

45

WASHER

Note: HG 44130

$

$

Not available

55

Gravely 21543773

WASHER 1.23X1.56X.04

$6.49

$

In Stock, only 1 left!

0

56

SEAL, LIP 17 X 40 X 7 HNBR

Note: HG 55486

$

$

Not available

57

Gravely 21543741

RING, RET 1.56 INT

$7.49

$

Usually ships in 4-12 days

0

60

Gravely 21548902

HG THRUST BEARING (51462)

$32.99

$

Usually ships in 4-12 days

0

64

Gravely 21548904

HG 16CC CYLINDER BLOCK (71579)

$78.99

$

In Stock, only 3 left!

0

65

Gravely 08609100

BEARING. THRUST 30 X 52 X 13

$19.99

$

Usually ships in 4-12 days

0

69

Gravely 21543921

ASSY, BLOCK 7 PISTON

$145.99

$

Usually ships in 4-12 days

0

70

WASHER .63X1.0X.05

Note: HG 44371

$

$

Not available

71

RING, RET 62 EXT

Note: HG44145

$

$

Not available

72

GEAR 16 TOOTH

Note: HG52149

$

$

Not available

73

SHAFT, MOTOR

Note: HG52150

$

$

Not available

74

WASHER, .71 X 1.16 X .04 FLAT

Note: HG 51069

$

$

Not available

80

Gravely 21543724

WASHER .5X1.0X.032

$

$

Not available

81

GEAR, 43T

Note: HG 52148

$

$

Not available

82

GEAR, 11T

Note: HG 52583

$

$

Not available

83

PIN, JACKSHAFT

Note: HG 55710

$

$

Not available

90

Gravely 08616500

RING, RETAINING

$9.99

$

Usually ships in 4-12 days

0

91

GEAR 54 TOOTH

Note: HG 52108

$

$

Not available

92

SPACER

Note: HG 53336

$

$

Not available

93

Gravely 21500082

KIT, BEARING

$23.99

$

Usually ships in 4-12 days

0

95

Gravely 08614000

BEARING, BALL 25.4 X 52 X 15

$25.99

$

In Stock, only 2 left!

0

96

Gravely 08614300

SEAL, LIP

$18.99

$

In Stock, only 1 left!

0

97

Gravely 21500051

KIT, HUB 4 BOLT

$85.99

$

Usually ships in 4-12 days

0

102

Gravely 21500047

HANDLE- ACTUATING

$11.99

$

Usually ships in 4-12 days

0

103

Gravely 21544007

CLIP,BRAKE ARM HYDROGEAR 52027

$6.49

$

In Stock, only 2 left!

0

106

KIT, FILTER GUARD

Note: HG71854

$

$

Not available

140

Gravely 21543870

SPACER

$

$

Not available

141

Gravely 21543867

ARM, NEUTRAL LEFT

$22.99

$

Usually ships in 4-12 days

0

142

Gravely 21543843

SHCS 5/16-24X1 PATCH

$

$

Not available

147

Gravely TCU19204

SPRING, EXTENSION

$

$

Not available

156

Gravely 21500034

CAP, AXLE

$5.49

$

Usually ships in 4-12 days

0

159

Gravely 21500036

SPRING, TORSION, CW

$10.99

$

Usually ships in 4-12 days

0

164

WASHER, 1.355 x 2.035 x .021 FLAT

$

$

Not available

193

PLUG, 3/4-16

Note: HG 54974

$

$

Not available

194

ASSEMBLY, FITTING 9/16-18 BREATHER

Note: HG 55789

$

$

Not available

195

ASSEMBLY, TANK, EXPANSION, INTERNAL, LH

Note: HG55072

$

$

Not available

200

Gravely 21543999

KIT, SEAL

$79.99

$

Usually ships in 4-12 days

0

201

KIT, CENTER SECTION, LH

Note: HG71568

$

$

Not available

207

Gravely 21500024

KIT, FAN / PULLEY

$64.99

$

In Stock, Qty 8

0

209

Gravely 21544008

HUB PULLER 5 BLT

Note: Optional Service Tool

$461.99

$

Usually ships in 4-12 days

0

210

KIT, INPUT SHAFT

Note: HG73040

$

$

Not available

211

RING, RTNG .

Note: HG71592

$

$

Not available

212

KIT SHAFT AXLE

Note: HG71569

$

$

Not available

215

KIT, OUTBOARD, RH ROT B / LH ROT A

Note: HG73119

$

$

Not available
