09499800 - Ariens EZT Hydro-Gear Transmission 09499800 - EZT Series Parts Diagram

EZT Hydro-Gear Transmission

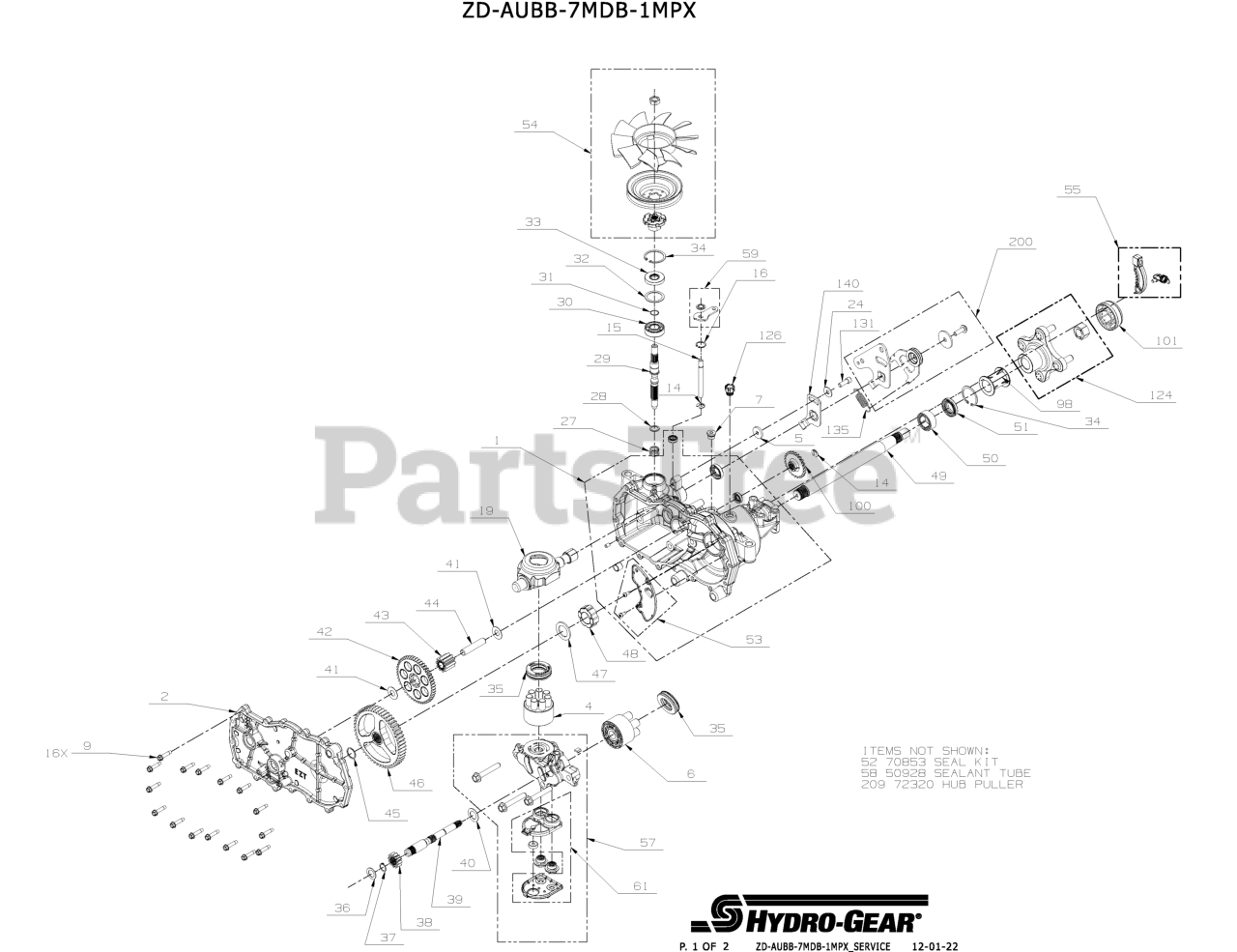

09499800 - EZT Series Parts Diagram

  • Title

Not Shown

Ariens 00058100

FLUID, HYDRO 20W50 QT

Note: Recommended Transmission Oil. Approximately 53 to 59oz

$15.99

$

Usually ships in 4-12 days

0

Not Shown

Ariens 00057100

FLUID, HYDRO 15W50 QT

Note: Optional Transmission Oil. Approximately 53 to 59oz

$14.99

$

In Stock, Qty 7

0

1

Ariens 21543947

ASSEMBLY, MAIN HOUSING

$399.99

$

Usually ships in 4-12 days

0

2

Ariens 21543989

ASSEMBLY, SIDE HOUSING

$115.99

$

Usually ships in 4-12 days

0

4

Ariens 21543921

ASSY, BLOCK 7 PISTON

$142.99

$

Usually ships in 4-12 days

0

5

Ariens 21543870

SPACER

$

$

Not available

6

Ariens 21543889

KIT, 10 CC BLOCK

$101.99

$

Usually ships in 4-12 days

0

7

Ariens 08613700

PLUG, STEEL (WITH SEAL)

$6.99

$

Usually ships in 4-12 days

0

9

Ariens 27105900

SCREW,HEX WASHER 1/4-20X1.125

$2.49

$

Usually ships in 4-12 days

0

14

Ariens 08622500

RING. RETAINING

$3.99

$

In Stock, Qty 11

0

15

Ariens 21543844

ROD, BYPASS

$

$

Not available

16

Ariens 21543846

RING, RET .750

$

$

Not available

19

Ariens 21543783

TRUNNION, SWASHPLATE

$70.99

$

Usually ships in 4-12 days

0

24

WASHER .34 X .88 X .06

Note: HG 44130

$

$

Not available

27

Ariens 08621500

SPRING. BLOCK

$1.99

$

In Stock, Qty 6

0

28

Ariens 08609400

WASHER. THRUST .59 X .79 X .04

$1.99

$

In Stock, only 1 left!

0

29

Ariens 21543785

SHAFT, INPUT

$96.99

$

Usually ships in 4-12 days

0

30

Ariens 21543738

BRG, BALL 17X40X12

$12.99

$

Usually ships in 4-12 days

0

31

Ariens 21543960

RING, RET WIRE .561 ID

$1.99

$

Usually ships in 4-12 days

0

32

Ariens 21543773

WASHER 1.23X1.56X.04

$5.99

$

Usually ships in 4-12 days

0

33

Ariens 21543816

SEAL, LIP 17X40X7

$11.99

$

Usually ships in 4-12 days

0

34

Ariens 21543741

RING, RET 1.56 INT

$6.99

$

Usually ships in 4-12 days

0

35

Ariens 08609100

BEARING. THRUST 30 X 52 X 13

$17.99

$

Usually ships in 4-12 days

0

36

WASHER, .63 X 1.00 X .05 FLAT

Note: HG 44371

$

$

Not available

37

RETAINING RING, MOTOR SHAFT

Note: HG 44145

$

$

Not available

38

GEAR-PINION, 12T

Note: HG 51767

$

$

Not available

39

Ariens 21543859

SHAFT, MOTOR

$

$

Not available

40

Ariens 21543788

WASHER .71 X 1.16 X .04

$

$

Not available

41

Ariens 21543724

WASHER .5X1.0X.032

$

$

Not available

42

GEAR, 49T/10T

Note: HG 51766

$

$

Not available

43

Ariens 21543781

GEAR, 10T JACKSHAFT

$

$

Not available

44

PIN, JACKSHAFT

Note: HG 55710

$

$

Not available

45

SPIRAL RETAINING RING

Note: HG 52531

$

$

Not available

46

GEAR 52T BULL

Note: HG 52541

$

$

Not available

47

WASHER FLAT 10.013 X 1.750 X 0.105

Note: HG 52532

$

$

Not available

48

INBOARD SLEEVE BEARING

Note: HG 52542

$

$

Not available

49

SHAFT, AXLE

Note: HG 53706

$

$

Not available

50

BUSHING 1.003 X 1.571 X 0.625

Note: HG 51517

$

$

Not available

51

SEAL, LIP 1.00 X 1.577 X 0.27

Note: HG 51518

$

$

Not available

52

Ariens 21543935

KIT, SEALS AND RETAINING

$71.99

$

In Stock, only 1 left!

0

53

Ariens 21543988

KIT, EXPANSION PLATE RH

$

$

Not available

54

Ariens 21543898

KIT, FAN/PULLEY

$77.99

$

Usually ships in 4-12 days

0

55

KIT, BRAKE ARM

Note: HG 72997

$

$

Not available

57

Ariens 21500060

KIT-CENTER SECTION W/FILTER RH

$178.99

$

Usually ships in 4-12 days

0

58

Ariens 21543771

SEALANT TUBE 10.1OZ.

$116.99

$

In Stock, only 1 left!

0

59

Ariens 21543937

KIT, BYPASS ARM

$6.49

$

Usually ships in 4-12 days

0

61

Ariens 21543958

KIT, FILTER

$19.99

$

Usually ships in 4-12 days

0

98

TUBE, AXLE 1.835

Note: HG 53731

$

$

Not available

100

Ariens 21543851

DISC, COG BRAKE

$13.99

$

Usually ships in 4-12 days

0

101

Ariens 21500034

$4.99

$

Usually ships in 4-12 days

0

124

Ariens 21500051

KIT, HUB 4 BOLT

$83.99

$

Usually ships in 4-12 days

0

126

ASSEMBLY, FITTING 9/16-18 BREATHER

Note: HG 55995

$

$

Not available

131

KIT, RTN SCREWS

Note: HG 71341

$

$

Not available

135

Ariens TCU19204

SPRING, EXTENSION

$

$

Not available

140

Ariens 21543866

ARM, NEUTRAL RIGHT

$11.99

$

Usually ships in 4-12 days

0

200

KIT, RTN BIDIRECTIONAL

Note: HG71588

$

$

Not available

209

Ariens 21544008

HUB PULLER 5 BLT HYDGEAR 72320

$452.99

$

Usually ships in 4-12 days

0
