1-0100 - Toro WorkHorse 800 Lawn Tractor (1971) 4.010 Transmission-Hydrostatic-4.050 Component Parts, Hydrogear Type B (plate 4.4) Parts Diagram

WorkHorse 800 Lawn Tractor

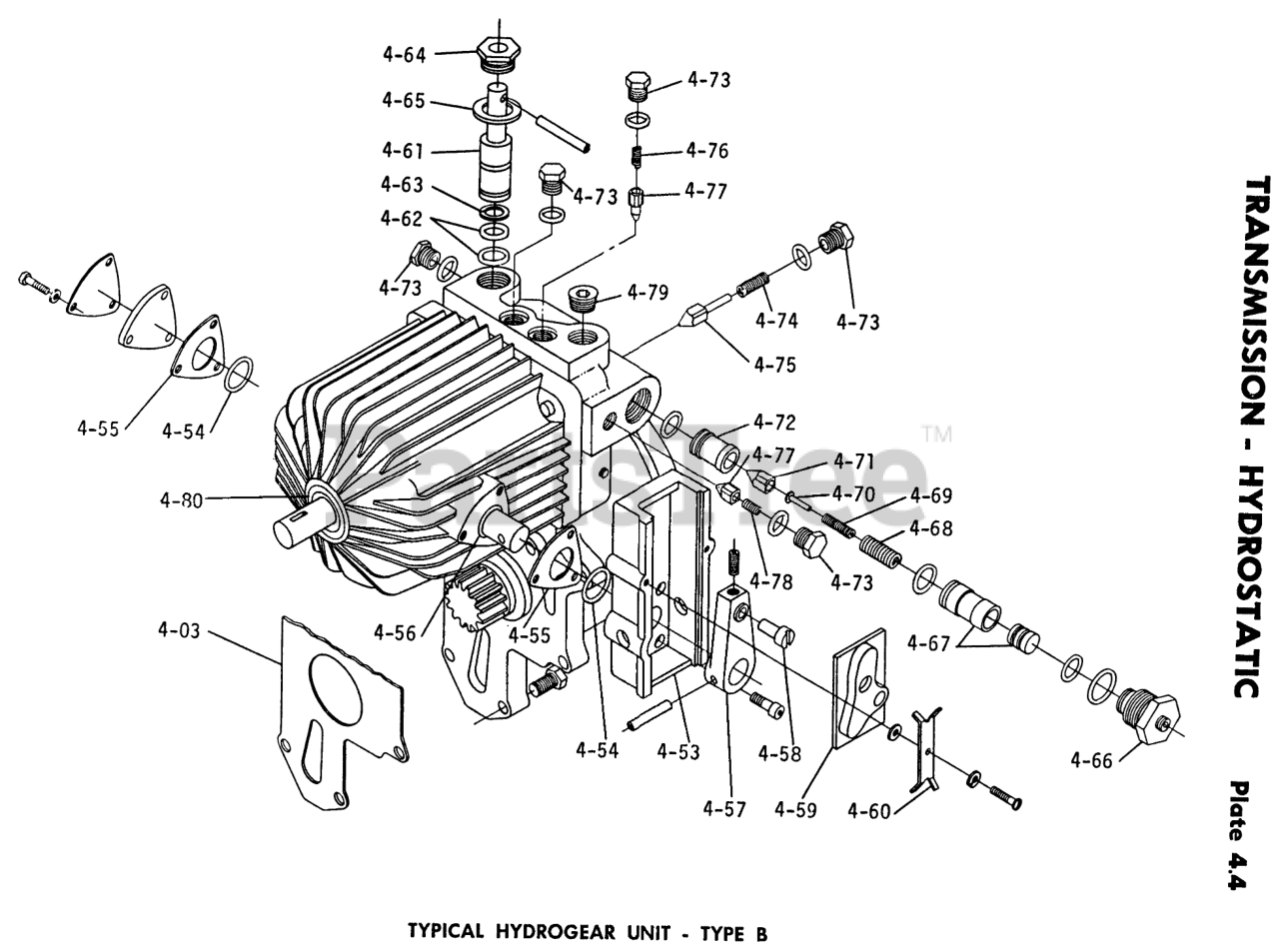

4.010 Transmission-Hydrostatic-4.050 Component Parts, Hydrogear Type B (plate 4.4) Parts Diagram

  • Title

4-53

Toro 5993

DISCONTINUED

$

$

Not available

4-53

Toro 911037

DISCONTINUED

$

$

Not available

4-54

Toro 970026

RING

$

$

Not available

4-55

Toro 6826

DISCONTINUED

$

$

Not available

4-56

Toro 972116

DISCONTINUE

$

$

Not available

4-57

Toro 5994

Arm-Cam Follower

$

$

Currently unavailable

4-57

Toro 933269

DISCONTINUED

$1.79

$

In Stock, only 2 left!

0

4-58

Toro 5995

DISCONTINUED

$

$

Not available

4-58

Toro 909849-5

Set Screw-1/4-20 x 1/2

$

$

Currently unavailable

4-59

Toro 5996

CAM

$25.99

$

Usually ships in 3-6 days

0

4-60

Toro 5998

DISCONTINUED

$

$

Not available

4-60

Toro 910777-4

Screw #8-32 x 1/2

$

$

Currently unavailable

4-60

Toro 920078-4

Lockwasher

$

$

Currently unavailable

4-60

Toro 920229-4

Washer

$

$

Currently unavailable

4-61

Toro 7266

DISCONTINUED

$

$

Not available

4-61

Toro 933196

SPIROL PIN

$

$

Not available

4-62

Toro 971113

DISCONTINUED

$

$

Not available

4-63

Toro 7268

DISCONTINUED

$

$

Not available

4-64

Toro 7267

DISCONTINUED

$

$

Not available

4-66

Toro 6444

DISCONTINUED

$

$

Not available

4-66

Toro 970118

DISCONTINUED

$

$

Not available

4-66

Toro 971015

O RING

$1.99

$

In Stock, Qty 20+

0

4-67

Toro 7054

DISCONTINUED

$

$

Not available

4-67

Toro 971018

O RING

$7.49

$

In Stock, Qty 6

0

4-70

Toro 7051

DISCONTINUED

$

$

Not available

4-71

Toro 7050

DISCONTINUED

$

$

Not available

4-72

Toro 7049

DISCONTINUED

$

$

Not available

4-72

Toro 971017

DISCONTINUED

$

$

Not available

4-73

Toro 7752

See Supercession: 25-2460
(Superseded to 25-2460)

$42.99

$

Usually ships in 3-6 days

0

4-73

Toro 973310

O RING

$4.99

$

In Stock, only 2 left!

0

4-74

Toro 7753

SPRING-SUNDSTRAND

$

$

Not available

4-75

Toro 7754

DISCONTINUED

$

$

Not available

4-76

Toro 7755

Spring Charge Pump Valve

$

$

Currently unavailable

4-79

Toro 943462

DISCONTINUED

$

$

Not available

4-80

Toro 7877

DISCONTINUED

$

$

Not available

4-65

Toro 9202

DUP PART SEE $BOOK

$

$

Not available

4-68

Toro 9858

Spring Relief Valve

$

$

Currently unavailable

4-70

Toro 9215

SPRING

$

$

Not available

4-68

Toro 7264

DISCONTINUED

$

$

Not available

4-69

Toro 7052

DISCONTINUED

$

$

Not available

4-77

Toro 7756

DISCONTINUED

$

$

Not available

4-77

Toro 6632

DISCONTINUED

$

$

Not available

4-78

Toro 6631

DISCONTINUED

$

$

Not available
