1-0100 - Toro WorkHorse 800 Lawn Tractor (1971) 9.000 Engine-9.000 Engine (plate 9.1) Parts Diagram

WorkHorse 800 Lawn Tractor

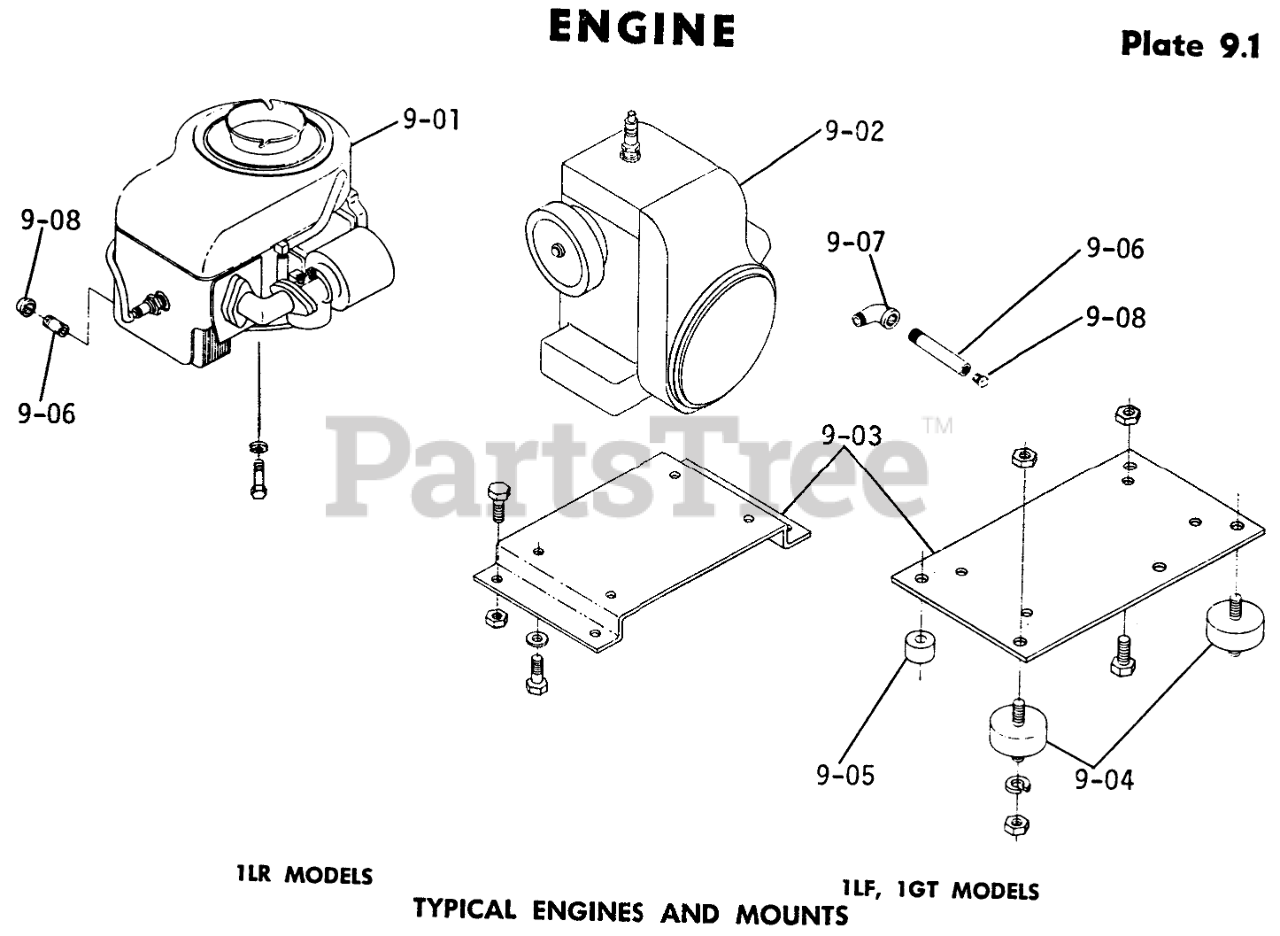

9.000 Engine-9.000 Engine (plate 9.1) Parts Diagram

  • Title

9-01

Toro 8893

Engine 7 HP

$

$

Currently unavailable

9-01

Toro 100436

Engine 7 H.P. Electric

$

$

Currently unavailable

9-01

Toro 908022-4

Hex Cap Screw

$

$

Currently unavailable

9-01

Toro 908019-4

Bolt 5/16-18 x 1

$

$

Currently unavailable

9-01

Toro 920008-4

Washer

$

$

Currently unavailable

9-02

Toro 101033

Engine-8 HP-Briggs Stratton

$

$

Currently unavailable

9-02

Toro 100774

Engine-8 HP-Lauson

$

$

Currently unavailable

9-02

Toro 100770

Engine-10 H.P.-R10

$

$

Currently unavailable

9-02

Toro 9651

Engine-12 H.P.-R12

$

$

Currently unavailable

9-02

Toro 100593

Engine-14 HP-Kohler

$

$

Currently unavailable

9-02

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

9-02

Toro 920083-4

Lockwasher

$

$

Currently unavailable

9-02

Toro 8274

Lockwasher

$

$

Currently unavailable

9-02

Toro 908036-4

Bolt, 3/8-16 x 1/2

$

$

Currently unavailable

9-02

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

9-03

Toro 100978

Base-Engine Mounting

$

$

Currently unavailable

9-03

Toro 908022-4

Hex Cap Screw

$

$

Currently unavailable

9-03

Toro 915662-4

Nut 5/16-18

$

$

Currently unavailable

9-04

Toro 101395

DISCONTINUED

$

$

Not available

9-04

Toro 915113-4

Nut

$

$

Currently unavailable

9-04

Toro 920083-4

Lockwasher

$

$

Currently unavailable

9-04

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

9-05

Toro 101396

DISCONTINUED

$

$

Not available

9-05

Toro 908037-4

Bolt Hex 3/8-16

$

$

Currently unavailable

9-05

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

9-03

Toro 7467

Base Engine

$

$

Currently unavailable

9-03

Toro 908033-4

Bolt 3/8-16 x 7/8

$

$

Currently unavailable

9-03

Toro 920083-4

Lockwasher

$

$

Currently unavailable

9-03

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

9-03

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

9-06

Toro 943308

Nipple-A x 1 1/4 Oildrain

$

$

Currently unavailable

9-08

Toro 4217

DISCONTINUED

$

$

Not available

9-06

Toro 101495

DISCONTINUED

$

$

Not available

9-07

Toro 5222

DISCONTINUE

$

$

Not available

9-06

Toro 101496

See Supercession: 943333
(Superseded to 943333)

$

$

Not available

9-07

Toro 943063-4

Elbow-3/8 x 90?

$

$

Currently unavailable

9-08

Toro 943419-4

Plug-Pipe 1/4-18 Sq. Hd.

$

$

Currently unavailable
