1-0110 - Toro Commando 800 Lawn Tractor (1972)

Commando 800 Lawn Tractor

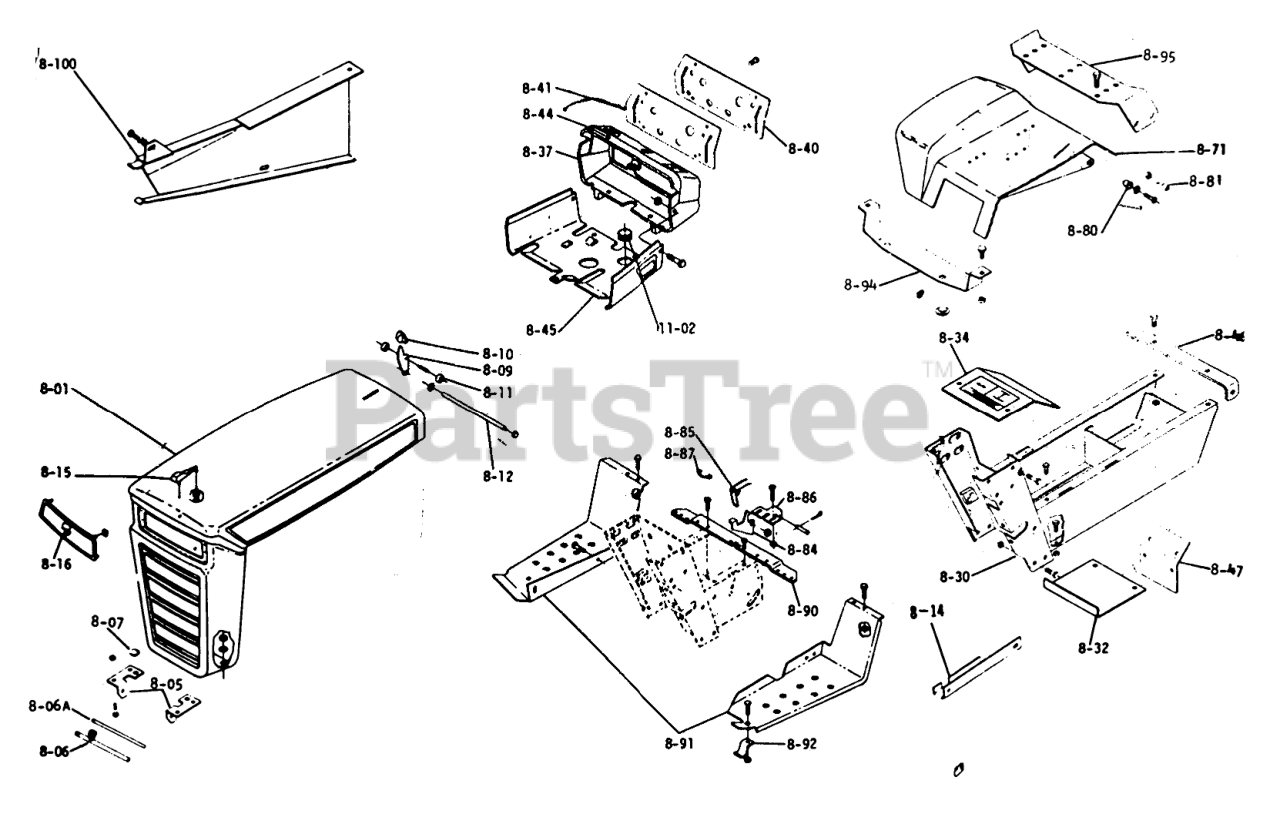

1-0110 - Toro Commando 800 Lawn Tractor (1972) > Parts Diagrams (15) > SHEET METALS AND COVERS

  • Title
9698

8-01

Hood

Part# 9698

OEM Warranty Repair Part for Toro

Not available

102368

8-05

Bracket-Grille Pivot-R.H.

Part# 102368

Not available

102369

Bracket-Grille Pivot-L.H.

Part# 102369

Not available

900037-4

Bolt Hex 5/16-18 x 3/4

Part# 900037-4

Not available

915112-6

Nut-Nylok

Part# 915112-6

Not available

101710

8-06

GRILL PIVOT ROD

Part# 101710

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $41.29

100398

E Ring-3/8

Part# 100398 (Superseded to 105797)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.47

101850

8-06A

ROD-HOOD STOP

Part# 101850

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $12.22

932000-4

Cotter Pin

Part# 932000-4

Not available

5467

8-09

LEVER HOOD LATCH

Part# 5467

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $114.13

933182

SPIROL PIN

Part# 933182

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.45

5469

8-10

KNOB

Part# 5469

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.48

5468

8-11

Roller

Part# 5468

OEM Warranty Repair Part for Toro

Not available

5522

8-12

Rod Latch

Part# 5522 (Superseded to 88-2090)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $17.99

5466

SPEED NUT

Part# 5466

OEM Warranty Repair Part for Toro

Not available

915932-4

Nut-Hi Crown

Part# 915932-4

Not available

102810

8-14

Channel

Part# 102810

OEM Warranty Repair Part for Toro

Not available

5438

8-15

Hood Ornament

Part# 5438

Not available

5437

SPEED NUT

Part# 5437

OEM Warranty Repair Part for Toro

Not available

7416

8-16

ESCUTCHEON PLATE

Part# 7416

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $33.76

7721

SPEED NUT

Part# 7721

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.92

100646

WASHER

Part# 100646

OEM Warranty Repair Part for Toro

Not available

102795

8-30

Hoodstand Assy.

Part# 102795

OEM Warranty Repair Part for Toro

Not available

101898

Hoodstand Assy.

Part# 101898

OEM Warranty Repair Part for Toro

Not available

908034-4

Bolt 3/8-16 x 1

Part# 908034-4

Not available

915113-6

Nut

Part# 915113-6

Not available

908032-4

Bolt 3/8-16 x 3/4

Part# 908032-4

Not available

920009-4

Washer

Part# 920009-4

Not available

920083-4

Lockwasher

Part# 920083-4

Not available

6825

8-32

Cover-Dust

Part# 6825

Not available

5622

8-34

Plate-Cover

Part# 5622

Not available

960151-4

Bolt, 1/4-20 Whizlock

Part# 960151-4

Not available

5450

8-37

Housing

Part# 5450

OEM Warranty Repair Part for Toro

Not available

960152-4

Bolt 1/4-20 x 5/8 Whizlock

Part# 960152-4

Not available

915111-6

Nut-Nylok

Part# 915111-6

Not available

102864

8-40

Panel

Part# 102864

OEM Warranty Repair Part for Toro

Not available

101882

Panel-Dash

Part# 101882

OEM Warranty Repair Part for Toro

Not available

101841

8-41

BACK UP PLATE

Part# 101841

OEM Warranty Repair Part for Toro

Not available

5442

SPEED NUT

Part# 5442

OEM Warranty Repair Part for Toro

Not available

102168

SCREW BLACK

Part# 102168

OEM Warranty Repair Part for Toro

Not available

5606

8-44

Tape

Part# 5606 (Superseded to 106556)

OEM Warranty Repair Part for Toro

Not available

926694-4

Bolt 5/16-18 x 1

Part# 926694-4

Not available

3023

SPEED CLIP

Part# 3023

OEM Warranty Repair Part for Toro

Not available

102304

8-46

Bracket

Part# 102304

OEM Warranty Repair Part for Toro

Not available

102714

8-47

Bracket Instrument

Part# 102714

OEM Warranty Repair Part for Toro

Not available

MW-4475

Clip

Part# MW-4475

Not available

102370

8-71

Fender

Part# 102370 (Superseded to 104853)

OEM Warranty Repair Part for Toro

Not available

7879

8-80

BUSHING-FLANGED

Part# 7879

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $16.03

4937

8-81

SPACER

Part# 4937

OEM Warranty Repair Part for Toro

Not available

908035-4

Bolt 3/8-16 x 1

Part# 908035-4

Not available

915663-4

3/8-16 E.S.

Part# 915663-4

Not available

7464

8-84

Latch Fender

Part# 7464

OEM Warranty Repair Part for Toro

Not available

MW-8863

8-85

Spring

Part# MW-8863

Not available

5977

NYLINER BUSHING

Part# 5977

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.23

7617

Pin

Part# 7617

OEM Warranty Repair Part for Toro

Not available

932008-4

Hairpin

Part# 932008-4

Not available

7616

8-86

BRACKET FENDER LATCH

Part# 7616

OEM Warranty Repair Part for Toro

Not available

908005-4

Bolt-Hex 1/4-20

Part# 908005-4

Not available

7882

8-87

Stop-Fender Latch

Part# 7882

Not available

7463

8-90

Bracket

Part# 7463 (Superseded to 105486)

OEM Warranty Repair Part for Toro

Not available

7454

8-91

Footrest R.H.

Part# 7454

Not available

7455

Footrest L.H.

Part# 7455 (Superseded to 105843)

OEM Warranty Repair Part for Toro

Not available

102798

8-92

Footrest-R.H.

Part# 102798

OEM Warranty Repair Part for Toro

Not available

102799

Footrest-L.H.

Part# 102799 (Superseded to 105843)

OEM Warranty Repair Part for Toro

Not available

102788

Front Belt Guide

Part# 102788 (Superseded to 105201)

OEM Warranty Repair Part for Toro

Not available

102789

Footrest Pad-L.H.

Part# 102789 (Superseded to 105201)

OEM Warranty Repair Part for Toro

Not available

908017-4

Bolt 5/16-18 x

Part# 908017-4

Not available

915662-4

Nut 5/16-18

Part# 915662-4

Not available

960175-4

Bolt, 5/16-18 x 1/2

Part# 960175-4

Not available

7456

8-92

BRACKET

Part# 7456

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.04

102248

8-94

Fender Bracket

Part# 102248

OEM Warranty Repair Part for Toro

Not available

5667

GROMMET

Part# 5667

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.73

102249

8-95

Bracket Fender Hinge

Part# 102249

OEM Warranty Repair Part for Toro

Not available

101958

8-100

Belt Guard Assy.

Part# 101958

OEM Warranty Repair Part for Toro

Not available

920039-4

Washer

Part# 920039-4

Not available

100542

8-45

Support-Fuel Tank

Part# 100542 (Superseded to 104108)

OEM Warranty Repair Part for Toro

Not available
