1-0141 (B-80) - Toro Lawn Tractor (1975) B-100 Parts Manual 11.000 Electrical System (fig. 11) Parts Diagram

Lawn Tractor

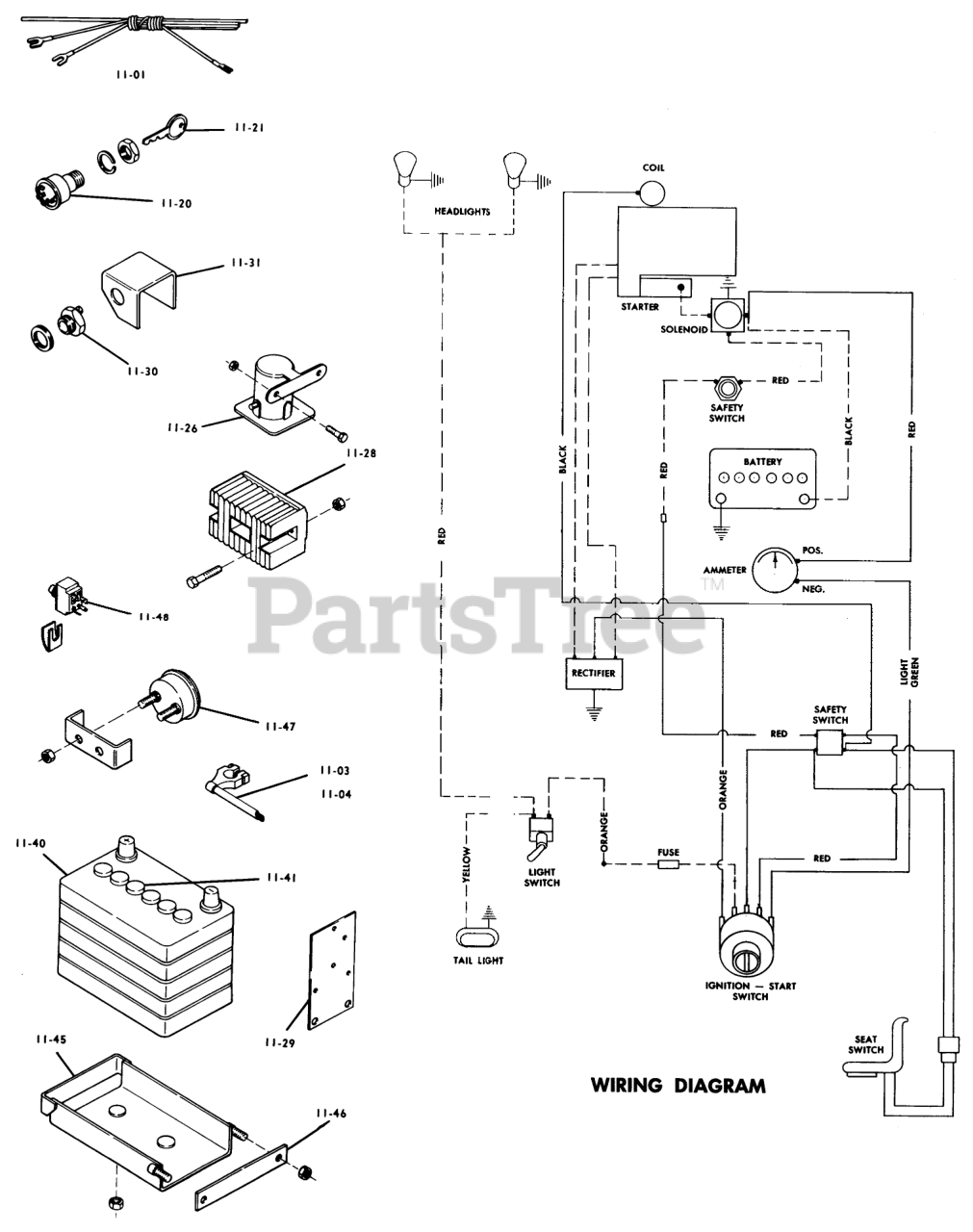

B-100 Parts Manual 11.000 Electrical System (fig. 11) Parts Diagram

  • Title

11-01

Toro 104703

DISCONTINUED

$

$

Not available

Toro 100571

DISCONTINUED

$

$

Not available

Toro 101446

CONTROL PROTECTOR

$

$

Not available

Toro 3023

DISCONTINUED

$

$

Not available

Toro 938030

DISCONTINUED

$

$

Not available

11-02

Toro 101971

DISCONTINUED

$

$

Not available

11-03

Toro 3660

See Supercession: 704057
(Superseded to 704057)

$

$

Not available

11-04

Toro 8655

See Supercession: 111078
(Superseded to 111078)

$28.99

$

Usually ships in 3-6 days

0

Toro 8655

See Supercession: 111078
(Superseded to 111078)

$28.99

$

Usually ships in 3-6 days

0

Toro 102250

DISCONTINUED

$

$

Not available

Toro 102251

DISCONTINUED

$

$

Not available

11-20

Toro 103990

SWITCH-IGNITION

$29.99

$

In Stock, only 2 left!

0

Toro 101884

NUT

$7.99

$

In Stock, only 1 left!

0

Toro 920160

See Supercession: 9201604
(Superseded to 9201604)

$0.99

$

In Stock, only 2 left!

0

11-21

Toro 7262

See Supercession: 62-7770
(Superseded to 62-7770)

$5.49

$

In Stock, Qty 14

0

11-26

Toro 8658

See Supercession: 108544
(Superseded to 108544)

$144.99

$

Usually ships in 3-6 days

0

Toro 960151

See Supercession: 3234-13
(Superseded to 3234-13)

$1.49

$

In Stock, only 1 left!

0

11-28

Toro 101450

REGULATOR-RECTIFIER

$357.99

$

Usually ships in 3-6 days

0

Toro 908003

See Supercession: 321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

Toro 915111

See Supercession: 3217-5
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 6

0

11-29

Toro 102371

DISCONTINUED

$

$

Not available

11-30

Toro 101845

SWITCH SAFETY

$115.99

$

Usually ships in 3-6 days

0

Toro 102277

NUT-SPECIAL 9/16-18

$

$

Not available

Toro 104868

DISCONTINUED

$

$

Not available

11-31

Toro 101827

DISCONTINUED

$

$

Not available

Toro 908034

See Supercession: 323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

11-40

Toro 104962

See Supercession: 105-1692
(Superseded to 105-1692)

$

$

Not available

Toro 920007

See Supercession: 3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 15

0

11-41

Toro 100438

DISCONTINUED

$

$

Not available

11-45

Toro 4953

DISCONTINUED

$

$

Not available

Toro 915112

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

11-46

Toro 4958

DISCONTINUED

$

$

Not available

11-47

Toro 102046

DISCONTINUED

$

$

Not available

Toro 102047

DISCONTINUED
(Superseded to 109604)

$

$

Not available

Toro 5924

HEX NUT 10-32 E.S. + + USE 3296-21 + +

$

$

Not available

11-48

Toro 104680

SWITCH-CLUTCH

$157.99

$

In Stock, only 1 left!

0

Toro 104681

CLIP-SWITCH

$

$

Not available
