1-0141 (B-80) - Toro Lawn Tractor (1975) B-100 Parts Manual 2.000 Transmission (fig. 2) Parts Diagram

Lawn Tractor

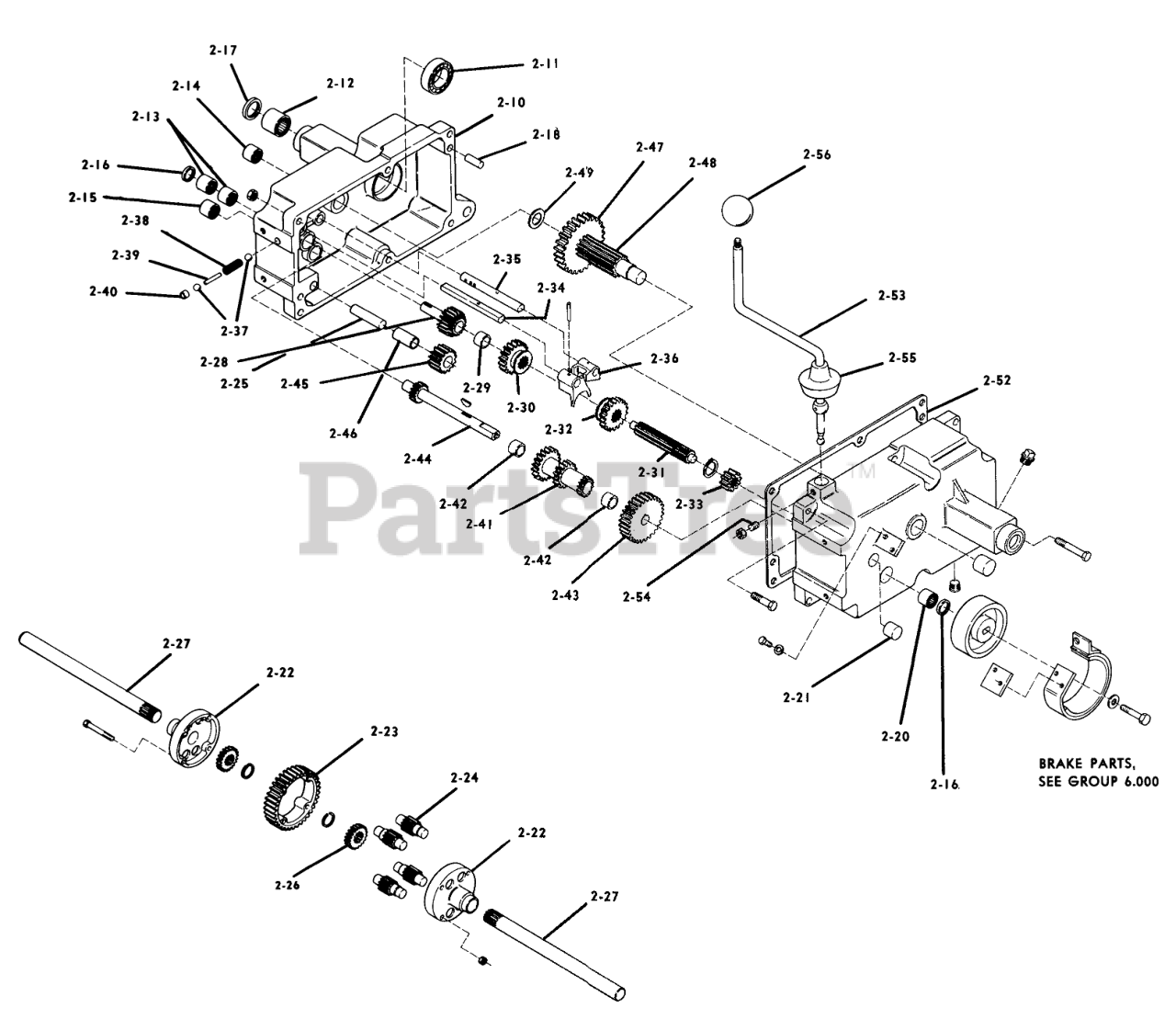

B-100 Parts Manual 2.000 Transmission (fig. 2) Parts Diagram

  • Title

2-10

Toro 3900

DISCONTINUED

$

$

Not available

Toro 3901

DISCONTINUED

$

$

Not available

Toro 908043

See Supercession: 323-15
(Superseded to 323-15)

$1.99

$

In Stock, Qty 10

0

Toro 908038

See Supercession: 323-10
(Superseded to 323-10)

$1.49

$

In Stock, Qty 9

0

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

Toro 943460

See Supercession: 285-22
(Superseded to 285-22)

$

$

Not available

Toro 943420

See Supercession: 281-2
(Superseded to 281-2)

$2.49

$

Usually ships in 3-6 days

0

2-11

Toro 1533

DISCONTINUED

$

$

Not available

2-12

Toro 1528

BEARING-NEEDLE

$65.99

$

Usually ships in 3-6 days

0

2-13

Toro 1508

See Supercession: 252-6
(Superseded to 252-6)

$13.99

$

In Stock, Qty 7

0

2-14

Toro 1532

BEARING-NEEDLE

$65.99

$

In Stock, only 2 left!

0

2-15

Toro 1529

BEARING-NEEDLE

$55.99

$

Usually ships in 3-6 days

0

2-16

Toro 100441

SEAL-OIL

$10.99

$

In Stock, Qty 12

0

2-17

Toro 100863

OIL SEAL

$19.99

$

In Stock, only 2 left!

0

2-18

Toro 3915

PIN-DOWEL

$8.49

$

Usually ships in 3-6 days

0

2-20

Toro 1523

BEARING-NEEDLE

$46.99

$

Usually ships in 3-6 days

0

2-21

Toro 1531

DUP PART SEE $BOOK

$

$

Not available

2-22

Toro 1050B2

Differential Case

$

$

Currently unavailable

Toro 908138

See Supercession: 323-20
(Superseded to 323-20)

$3.99

$

In Stock, Qty 11

0

Toro 915833

See Supercession: 108881
(Superseded to 108881)

$6.49

$

In Stock, Qty 12

0

2-23

Toro 105063

DISCONTINUED

$

$

Not available

2-24

Toro 101623

GEAR-PINION, 11T

$122.99

$

Usually ships in 3-6 days

0

2-25

Toro 3909

PIN-DIFFERENTIAL

$

$

Not available

2-26

Toro 3908

AXLE GEAR

$188.99

$

Usually ships in 3-6 days

0

2-27

Toro 101880

DISCONTINUED

$

$

Not available

Toro 7939

See Supercession: 32151-36
(Superseded to 32151-36)

$4.99

$

In Stock, Qty 20+

0

2-28

Toro 3522

DISCONTINUED

$

$

Not available

2-29

Toro 1518

BEARING-NEEDLE

$33.99

$

Usually ships in 3-6 days

0

2-30

Toro 3523

DISCONTINUED

$

$

Not available

2-31

Toro 3907

DISCONTINUED

$

$

Not available

Toro 936125

See Supercession: 32120-72
(Superseded to 32120-72)

$2.49

$

In Stock, Qty 5

0

2-32

Toro 3524

DISCONTINUED

$

$

Not available

2-33

Toro 3526

GEAR

$

$

Not available

2-34

Toro 5615

RAIL-SHIFT

$130.99

$

Usually ships in 3-6 days

0

2-35

Toro 5616

RAIL-REAR SHIFT

$100.99

$

Usually ships in 3-6 days

0

2-36

Toro 3503

FORK-SHIFT

$147.99

$

Usually ships in 3-6 days

0

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 8

0

2-37

Toro 3517

BALL-DETENT

$0.99

$

In Stock, only 3 left!

0

2-38

Toro 3518

See Supercession: 106030
(Superseded to 106030)

$3.49

$

In Stock, Qty 13

0

2-39

Toro 5614

PIN-SHIFT

$

$

Not available

2-40

Toro 1243

CUP-PLUG

$6.49

$

In Stock, Qty 7

0

2-41

Toro 3525

See Supercession: 7269
(Superseded to 7269)

$

$

Not available

2-42

Toro 1504

BUSHING-BRONZE

$53.99

$

Usually ships in 3-6 days

0

2-43

Toro 3527

GEAR-CLUSTER SHAFT

$

$

Not available

2-44

Toro 9840

See Supercession: 704156
(Superseded to 704156)

$

$

Not available

Toro 937014

Key
(Superseded to 3257-5)

$5.99

$

In Stock, Qty 15

0

2-45

Toro 4204

GEAR/BUSHING ASM-REVERSE IDLER

$177.99

$

Usually ships in 3-6 days

0

2-46

Toro 1516

BUSHING

$

$

Not available

2-47

Toro 101626

DISCONTINUED

$

$

Not available

2-48

Toro 101625

PINION SHAFT

$

$

Not available

2-49

Toro 9547

WASHER-THRUST

$7.49

$

Usually ships in 3-6 days

0

2-52

Toro 3912

GASKET-TRANSMISSION

$11.99

$

In Stock, only 3 left!

0

2-53

Toro 5632

See Supercession: 95-7684
(Superseded to 95-7684)

$218.99

$

In Stock, only 1 left!

0

2-54

Toro 1239

SETSCREW

$11.99

$

In Stock, Qty 6

0

Toro 915111

See Supercession: 3217-5
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 6

0

2-55

Toro 3577

COVER-DUST

$

$

Not available

2-56

Toro 102871

SHIFT KNOB

$

$

Not available

Toro 7968

Gear Lube, Pint

$

$

Currently unavailable
