1-0276 - Toro Lawn Tractor (1973)

Lawn Tractor

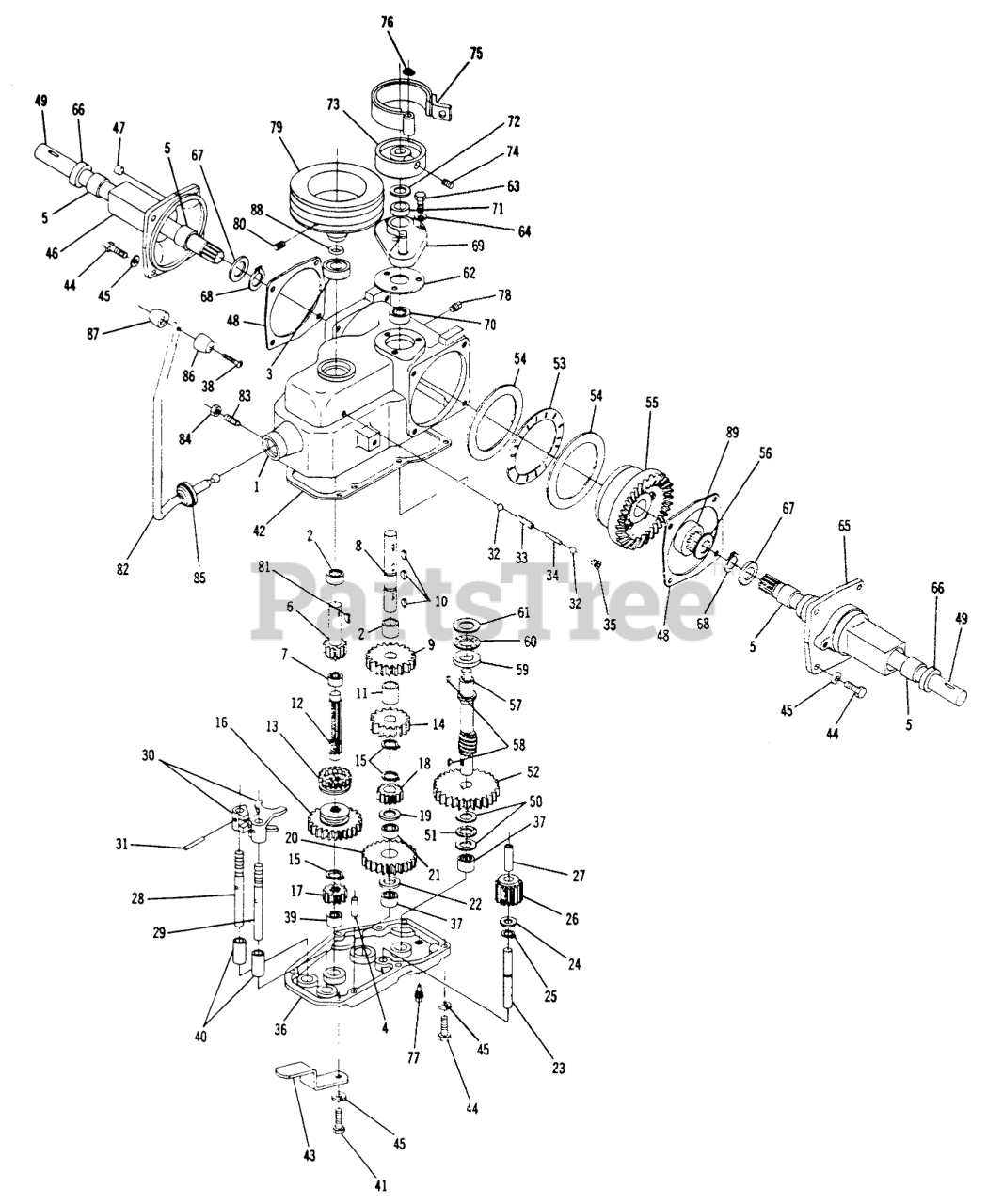

1-0276 - Toro Lawn Tractor (1973) > Parts Diagrams (1) > TRANSMISSION-PARTS LIST

  • Title
7982

1

Housing-Gear Case

Part# 7982

OEM Warranty Repair Part for Toro

Currently unavailable

1523

2

BEARING-NEEDLE

Part# 1523

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $24.60

101480

3

BEARING-BALL

Part# 101480

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $36.88

3915

4

PIN-DOWEL

Part# 3915

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.93

1528

5

BEARING-NEEDLE

Part# 1528

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $34.23

3522

6

INPUT SHAFT

Part# 3522

OEM Warranty Repair Part for Toro

Not available

1518

7

BEARING-NEEDLE

Part# 1518

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $17.66

7987

8

Shaft Idler

Part# 7987

OEM Warranty Repair Part for Toro

Currently unavailable

7988

9

Gear-36T.

Part# 7988

OEM Warranty Repair Part for Toro

Not available

937079

10

Key-Woodruff 1/8x3/8 Dia.

Part# 937079

OEM Warranty Repair Part for Toro

Not available

7989

11

SPACER

Part# 7989

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.82

3907

12

Shaft Spline

Part# 3907

OEM Warranty Repair Part for Toro

Not available

3523

13

GEAR

Part# 3523

OEM Warranty Repair Part for Toro

Not available

7990

14

Gear-30T

Part# 7990

OEM Warranty Repair Part for Toro

Not available

936125

15

RING-SNAP, EXTERNAL

Part# 936125 (Superseded to 32120-72)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.67

7986

16

Gear-Low and Reverse

Part# 7986

OEM Warranty Repair Part for Toro

Not available

3526

17

GEAR

Part# 3526

OEM Warranty Repair Part for Toro

Not available

17991

18

52020/ITE 5HP SINGL

Part# 17991

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.23

1535

19

WASHER-THRUST

Part# 1535

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.98

7992

20

GEAR

Part# 7992

OEM Warranty Repair Part for Toro

Not available

1540

21

BEARING-NEEDLE

Part# 1540

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $22.58

7993

22

RACE

Part# 7993

OEM Warranty Repair Part for Toro

Not available

7996

23

Shaft-Reverse Idler

Part# 7996

OEM Warranty Repair Part for Toro

Currently unavailable

17947

24

51003 CORPORAL HVY

Part# 17947

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.23

936117

25

Snap Ring

Part# 936117 (Superseded to 32151-84)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.36

4204

26

GEAR/BUSHING ASM-REVERSE IDLER

Part# 4204

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $105.65

1516

27

BUSHING

Part# 1516

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.58

5615

28

RAIL-SHIFT

Part# 5615

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $76.10

5616

29

RAIL-REAR SHIFT

Part# 5616

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $52.02

7995

30

SHIFT FORK

Part# 7995

OEM Warranty Repair Part for Toro

Not available

933156

31

PIN-ROLL

Part# 933156

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.50

3517

32

BALL-DETENT

Part# 3517

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.35

3518

33

Spring

Part# 3518 (Superseded to 106030)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.75

5614

34

PIN-SHIFT

Part# 5614

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.37

943418

35

Plug-Pipe

Part# 943418

OEM Warranty Repair Part for Toro

Not available

7983

36

Cover Transmission

Part# 7983

OEM Warranty Repair Part for Toro

Not available

1529

37

BEARING-NEEDLE

Part# 1529

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $28.62

910797-4

38

Bolt #10-24 x 1 1/4

Part# 910797-4

OEM Warranty Repair Part for Toro

Currently unavailable

1531

39

Bearing Needle

Part# 1531

OEM Warranty Repair Part for Toro

Not available

7984

40

Bushing-Shifter Rail

Part# 7984

OEM Warranty Repair Part for Toro

Currently unavailable

908035-4

41

Bolt 3/8-16 x 1

Part# 908035-4

OEM Warranty Repair Part for Toro

Currently unavailable

7998

42

GASKET TRANSMISSION

Part# 7998

OEM Warranty Repair Part for Toro

Not available

100444

43

BRACKET STOP

Part# 100444

OEM Warranty Repair Part for Toro

Not available

908034-4

44

Bolt 3/8-16 x 1

Part# 908034-4

OEM Warranty Repair Part for Toro

Currently unavailable

920083-4

45

Lockwasher

Part# 920083-4

OEM Warranty Repair Part for Toro

Currently unavailable

8019

46

Housing-Axle R H.

Part# 8019

OEM Warranty Repair Part for Toro

Not available

8016

47

Breather

Part# 8016

OEM Warranty Repair Part for Toro

Not available

7936

48

GASKET

Part# 7936

OEM Warranty Repair Part for Toro

Not available

100170

49

Axle

Part# 100170

OEM Warranty Repair Part for Toro

Not available

103160

Axle (5096)

Part# 103160

OEM Warranty Repair Part for Toro

Currently unavailable

7956

50

Race Thrust

Part# 7956 (Superseded to 702982)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.81

8571

51

BEARING-THRUST

Part# 8571 (Superseded to 99-3836)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.23

7994

52

Gear Pinion Drive

Part# 7994

OEM Warranty Repair Part for Toro

Not available

7954

53

Bearing Thrust

Part# 7954

OEM Warranty Repair Part for Toro

Not available

7955

54

Race-Thrust

Part# 7955

OEM Warranty Repair Part for Toro

Not available

100173

55

Differential Assembly

Part# 100173

OEM Warranty Repair Part for Toro

Not available

7952

Differential

Part# 7952

OEM Warranty Repair Part for Toro

Not available

100258

56

Washer-Bowed

Part# 100258

OEM Warranty Repair Part for Toro

Not available

7953

57

Pinion-Gear-Differential

Part# 7953

OEM Warranty Repair Part for Toro

Not available

937086

58

KEY WOODRUFF

Part# 937086

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.75

7962

59

BEARING RACE SPECIAL

Part# 7962

OEM Warranty Repair Part for Toro

Not available

7960

60

Bearing-Thrust

Part# 7960

OEM Warranty Repair Part for Toro

Not available

7961

61

Rae-Thrust

Part# 7961

OEM Warranty Repair Part for Toro

Currently unavailable

7964

62

GASKET END CAP

Part# 7964

OEM Warranty Repair Part for Toro

Not available

908017-4

63

Bolt 5/16-18 x

Part# 908017-4

OEM Warranty Repair Part for Toro

Currently unavailable

920082-4

64

Lockwasher

Part# 920082-4

OEM Warranty Repair Part for Toro

Currently unavailable

7937

65

Housing Axle L.H.

Part# 7937

OEM Warranty Repair Part for Toro

Currently unavailable

100607

66

OIL SEAL

Part# 100607

OEM Warranty Repair Part for Toro

Not available

7938

67

Gear-36T

Part# 7938

OEM Warranty Repair Part for Toro

Not available

7939

68

Snap Ring

Part# 7939 (Superseded to 32151-36)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.43

100338

69

End-Cap

Part# 100338

OEM Warranty Repair Part for Toro

Not available

7959

70

Bearing Needle

Part# 7959

OEM Warranty Repair Part for Toro

Not available

100608

71

Seal/I.D.

Part# 100608

OEM Warranty Repair Part for Toro

Not available

7418

72

WASHER-THR

Part# 7418

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.29

7965

73

Brake Drum

Part# 7965

OEM Warranty Repair Part for Toro

Not available

909853-5

74

Screw 1/4-20 x 5/8

Part# 909853-5

OEM Warranty Repair Part for Toro

Currently unavailable

7967

75

BRAKE BAND & LINER

Part# 7967

OEM Warranty Repair Part for Toro

Not available

100398

76

E Ring-3/8

Part# 100398 (Superseded to 105797)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.47

8015

77

Plug 1/4 Pipe

Part# 8015

OEM Warranty Repair Part for Toro

Currently unavailable

943421

78

SOLID PIPE PLUG

Part# 943421

OEM Warranty Repair Part for Toro

Not available

7999

79

Pulley-Transmission

Part# 7999

OEM Warranty Repair Part for Toro

Not available

909850-5

80

Set Screw-Nylok

Part# 909850-5

OEM Warranty Repair Part for Toro

Currently unavailable

937014

81

Key

Part# 937014 (Superseded to 3257-5)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.79

8000

82

Handle-Shift

Part# 8000 (Superseded to 100002)

OEM Warranty Repair Part for Toro

Not available

1239

83

SETSCREW

Part# 1239

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.71

915111-4

84

Nut 1/4-20

Part# 915111-4

OEM Warranty Repair Part for Toro

Currently unavailable

8002

85

Boot-Seal

Part# 8002

OEM Warranty Repair Part for Toro

Not available

8693

86

KNOB

Part# 8693

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.95

8722

87

KNOB

Part# 8722

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $13.88

100912

88

O-Ring

Part# 100912

OEM Warranty Repair Part for Toro

Currently unavailable

100178

89

Bearing Axle

Part# 100178

OEM Warranty Repair Part for Toro

Currently unavailable

100731

Bearing Axle

Part# 100731

OEM Warranty Repair Part for Toro

Currently unavailable
