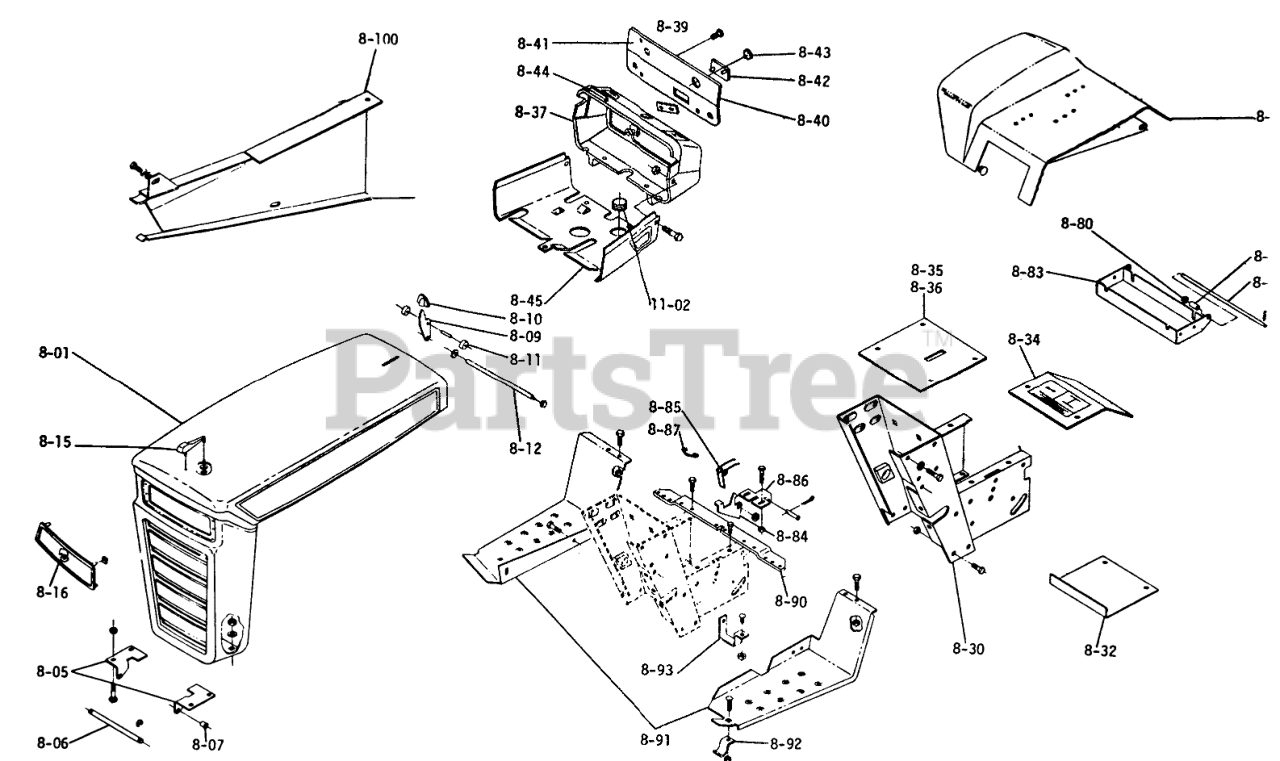

1-0450 (800) - Toro Lawn Tractor (1971) Sheet Metal And Covers Parts Diagram

Lawn Tractor

Sheet Metal And Covers Parts Diagram

  • Title

8-01

Toro 9699

See Supercession: 114289
(Superseded to 114289)

$

$

Not available

8-05

Toro 9766

See Supercession: 108385
(Superseded to 108385)

$

$

Not available

8-05

Toro 9767

See Supercession: 108384
(Superseded to 108384)

$

$

Not available

8-05

Toro 900037-4

Bolt Hex 5/16-18 x 3/4

$

$

Currently unavailable

8-05

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

8-06

Toro 101452

See Supercession: 101710
(Superseded to 101710)

$

$

Not available

8-06

Toro 100398

See Supercession: 105797
(Superseded to 105797)

$0.99

$

In Stock, Qty 20+

0

8-07

Toro 5457

NYLINER BUSHING

$24.99

$

Usually ships in 3-6 days

0

8-09

Toro 5467

LEVER HOOD LATCH

$184.99

$

Usually ships in 3-6 days

0

8-09

Toro 933182

SPIROL PIN

$

$

Not available

8-10

Toro 5469

KNOB

$4.99

$

In Stock, only 2 left!

0

8-11

Toro 5468

DISCONTINUE WHEN EXP

$

$

Not available

8-12

Toro 5522

See Supercession: 88-2090
(Superseded to 88-2090)

$

$

Not available

8-12

Toro 5466

DISCONTINUED

$

$

Not available

8-12

Toro 915932-4

Nut-Hi Crown

$

$

Currently unavailable

8-15

Toro 5438

Hood Ornament

$

$

Currently unavailable

8-15

Toro 5437

DISCONTINUED

$

$

Not available

8-15

Toro 100646

DISCONTINUED

$

$

Not available

8-16

Toro 9799

See Supercession: 7416
(Superseded to 7416)

$

$

Not available

8-16

Toro 7791

Speed Nut, push on

$

$

Currently unavailable

8-16

Toro 100646

DISCONTINUED

$

$

Not available

8-20

Toro 8717

Tape

$

$

Currently unavailable

8-30

Toro 100921

Assy.-Hoodstand

$

$

Currently unavailable

8-30

Toro 908035-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

8-30

Toro 915113-6

Nut

$

$

Currently unavailable

8-30

Toro 920009-4

Washer

$

$

Currently unavailable

8-32

Toro 100968

Cover-Dust

$

$

Currently unavailable

8-34

Toro 101154

Plate-Cover

$

$

Currently unavailable

8-34

Toro 960151-4

Bolt, 1/4-20 Whizlock

$

$

Currently unavailable

8-34

Toro MW-4475

Clip

$

$

Currently unavailable

8-35

Toro 101412

DISCONTINUED

$

$

Not available

8-36

Toro 101160

Plate-Back up

$

$

Currently unavailable

8-36

Toro 101410

DISCONTINUED

$

$

Not available

8-36

Toro MW-4475

Clip

$

$

Currently unavailable

8-37

Toro 5450

DISCONTINUED

$

$

Not available

8-37

Toro 908016-4

Bolt Hex 5/16-18

$

$

Currently unavailable

8-37

Toro 920081-4

Lockwasher

$

$

Currently unavailable

8-39

Toro 101633

Panel-Control

$

$

Currently unavailable

8-40

Toro 101346

DISCONTINUED

Note: Indicates parts included in Service Assembly-Dash Panel part no. 101633.

$

$

Not available

8-41

Toro 101347

Plate-Support

Note: Indicates parts included in Service Assembly-Dash Panel part no. 101633.

$

$

Currently unavailable

8-41

Toro 5442

DISCONTINUED

Note: Indicates parts included in Service Assembly-Dash Panel part no. 101633.

$

$

Not available

8-41

Toro 926374-4

*Screw #10-16 x 3/4

Note: Indicates parts included in Service Assembly-Dash Panel part no. 101633.

$

$

Currently unavailable

8-42

Toro 7415

DISCONTINUE

Note: Indicates parts included in Service Assembly-Dash Panel part no. 101633.

$

$

Not available

8-42

Toro 7476

DISCONTINUED

Note: Indicates parts included in Service Assembly-Dash Panel part no. 101633.

$

$

Not available

8-43

Toro 935109

*Plug Button-Lighter

Note: Indicates parts included in Service Assembly-Dash Panel part no. 101633.

$

$

Not available

8-44

Toro 5606

See Supercession: 106556
(Superseded to 106556)

$

$

Not available

8-45

Toro 100542

See Supercession: 104108
(Superseded to 104108)

$

$

Not available

8-45

Toro 960152-4

Bolt 1/4-20 x 5/8 Whizlock

$

$

Currently unavailable

8-45

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

8-71

Toro 7417

DISCONTINUED

$

$

Not available

8-71

Toro 5667

GROMMET

$5.49

$

In Stock, Qty 5

0

8-80

Toro 8111

DISCONTINUED

$

$

Not available

8-81

Toro 979142-4

Spacer

$

$

Currently unavailable

8-82

Toro 101117

Rod-Sat Pivot

$

$

Currently unavailable

8-82

Toro 933504-4

Hairpin

$

$

Currently unavailable

8-83

Toro 101052

Tool Box

$

$

Currently unavailable

8-83

Toro 900037-4

Bolt Hex 5/16-18 x 3/4

$

$

Currently unavailable

8-83

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

8-83

Toro 900063-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

8-83

Toro 915113-6

Nut

$

$

Currently unavailable

8-84

Toro 7464

DISCONTINUED

$

$

Not available

8-85

Toro MW-8863

Spring

$

$

Currently unavailable

8-85

Toro 5977

NYLINER BUSHING

$6.99

$

In Stock, only 1 left!

0

8-85

Toro 7617

DISCONTINUED

$

$

Not available

8-85

Toro 932008-4

Hairpin

$

$

Currently unavailable

8-86

Toro 7617

DISCONTINUED

$

$

Not available

8-86

Toro 908005-4

Bolt-Hex 1/4-20

$

$

Currently unavailable

8-86

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

8-87

Toro 7882

Stop-Fender Latch

$

$

Currently unavailable

8-90

Toro 7463

See Supercession: 105486
(Superseded to 105486)

$

$

Not available

8-90

Toro 960175-4

Bolt, 5/16-18 x 1/2

$

$

Currently unavailable

8-90

Toro 908018-4

Bolt, 5/16-18 X 7/8

$

$

Currently unavailable

8-90

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

8-91

Toro 7454

Footrest R.H.

$

$

Currently unavailable

8-91

Toro 7455

See Supercession: 105843
(Superseded to 105843)

$

$

Not available

8-91

Toro 908017-4

Bolt 5/16-18 x

$

$

Currently unavailable

8-91

Toro 915662-4

Nut 5/16-18

$

$

Currently unavailable

8-91

Toro 960175-4

Bolt, 5/16-18 x 1/2

$

$

Currently unavailable

8-92

Toro 7456

BRACKET

$

$

Not available

8-92

Toro 900214-4

Bolt-Carriage 5/16-18

$

$

Currently unavailable

8-92

Toro 915662-4

Nut 5/16-18

$

$

Currently unavailable

8-100

Toro 101403

DISCONTINUED

$

$

Not available

8-100

Toro 101170

Assy.-Belt Guard

$

$

Currently unavailable

8-100

Toro 960175-4

Bolt, 5/16-18 x 1/2

$

$

Currently unavailable

8-100

Toro 908032-4

Bolt 3/8-16 x 3/4

$

$

Currently unavailable

8-100

Toro 920083-4

Lockwasher

$

$

Currently unavailable

8-100

Toro 920009-4

Washer

$

$

Currently unavailable
