1-0481 (C-160) - Toro Lawn Tractor (1975) 6.050 BRAKE, CLUTCH, SPEED CONTROL LINKAGE (FIG. 6) Parts Diagram

Lawn Tractor

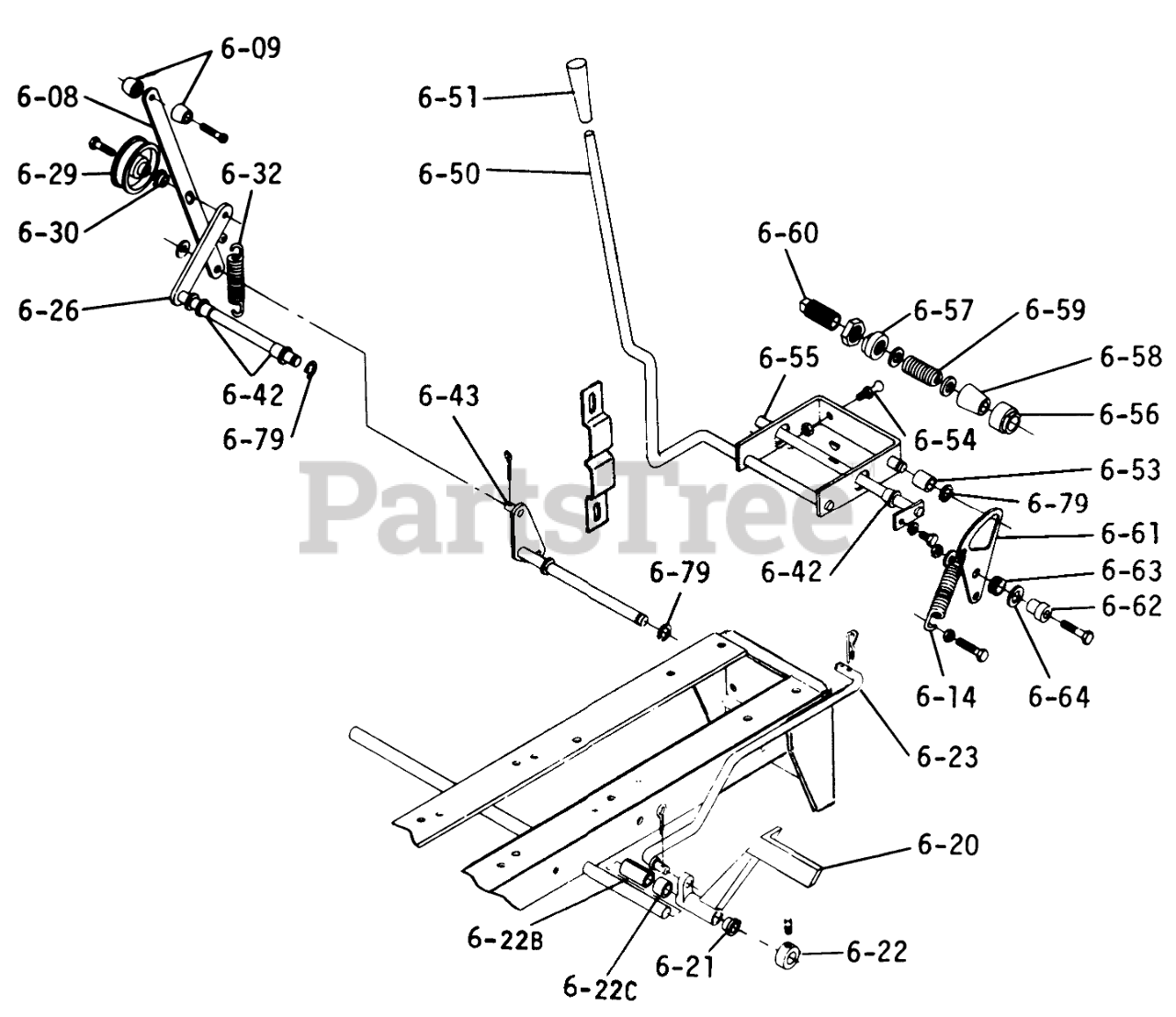

6.050 BRAKE, CLUTCH, SPEED CONTROL LINKAGE (FIG. 6) Parts Diagram

  • Title

6-08

Toro 100634

HANDLE R (NS)

$

$

Not available

6-09

Toro 8693

KNOB

$5.99

$

In Stock, Qty 10

0

6-09

Toro 8722

KNOB

$21.99

$

In Stock, only 3 left!

0

6-09

Toro 910797

Machine Screw
(Superseded to 3250-23)

$2.99

$

Usually ships in 3-6 days

0

6-14

Toro 1230

Spring

$

$

Not available

6-14

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

6-14

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 10

0

6-20

Toro 102747

PEDAL R

$

$

Not available

6-21

Toro 6254

BUSHING

$18.99

$

Usually ships in 3-6 days

0

6-22

Toro 1085

Collar
(Superseded to 83-2770)

$

$

Not available

6-22

Toro 909848

SCREW-SET
(Superseded to 3245-32)

$5.49

$

In Stock, only 2 left!

0

6-22B

Toro 979207

SPACER

Note: C-120 ONLY

$

$

Not available

6-22C

Toro 4064

Spacer
(Superseded to 703269)

$108.99

$

Usually ships in 3-6 days

0

6-23

Toro 6113

Gasket

$

$

Not available

6-23

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

6-23

Toro 933503

USE 933503P PIN

$5.99

$

Usually ships in 3-6 days

0

6-26

Toro 6130

Idler Arm

$

$

Not available

6-26

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

6-26

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

6-26

Toro 915234

Nut
(Superseded to 3218-1)

$1.49

$

In Stock, only 4 left!

0

6-26

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, Qty 5

0

6-29

Toro 7434

Idler Pulley
(Superseded to 112426)

$26.99

$

In Stock, only 4 left!

0

6-29

Toro 911404

HEX HD CAP SCREW

$0.99

$

In Stock, Qty 8

0

6-30

Toro 7435

SPACER-BRAKE LINK

$

$

Not available

6-32

Toro 9170

SPRING-EXTENSION

$

$

Not available

6-42

Toro 7879

BUSHING-FLANGED

$24.99

$

In Stock, only 2 left!

0

6-43

Toro 7474

ever Brake

$

$

Not available

6-43

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

6-43

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

6-43

Toro 932001

Cotter Pin
(Superseded to 327-22)

$13.99

$

Usually ships in 3-6 days

0

6-43

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 15

0

6-50

Toro 103891

Cam Control

$

$

Not available

6-51

Toro 6129

KNOB

$10.99

$

Usually ships in 3-6 days

0

6-51

Toro 103996

SPRING-DETENT

$

$

Not available

6-51

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 10

0

6-51

Toro 926694

SCREW

$

$

Not available

6-53

Toro 100656

BEARING-CAM RETURN

$5.99

$

In Stock, Qty 5

0

6-53

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 15

0

6-54

Toro 6127

PIN

$

$

Not available

6-54

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

6-55

Toro 7604

Cam Pivot Rod
(Superseded to 741211)

$253.99

$

Usually ships in 3-6 days

0

6-55

Toro 937007

WOODRUFF KEY

$

$

Not available

6-55

Toro 926694

SCREW

$

$

Not available

6-56

Toro 7599

FRICTION COLLAR

$

$

Not available

6-57

Toro 7601

COLLAR BRKT PIVOT

$

$

Not available

6-58

Toro 7600

FRICTION CONE

$

$

Not available

6-59

Toro 7602

SPRING FRICTION

$

$

Not available

6-59

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

6-59

Toro 7879

BUSHING-FLANGED

$24.99

$

In Stock, only 2 left!

0

6-60

Toro 7603

Collar Friction

$

$

Not available

6-60

Toro 915241

NUT

$1.49

$

Usually ships in 3-6 days

0

6-61

Toro 6142

Cam Plate

$

$

Not available

6-62

Toro 6143

Spacer

$

$

Not available

6-63

Toro 5983

NYLINER BUSHING

$4.99

$

In Stock, Qty 19

0

6-64

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, Qty 6

0

6-64

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

6-64

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

6-64

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

6-79

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 15

0
