1-0611 (D-180) - Toro Lawn Tractor (1974) SHEET METAL AND COVERS (CONT-D) Parts Diagram

Lawn Tractor

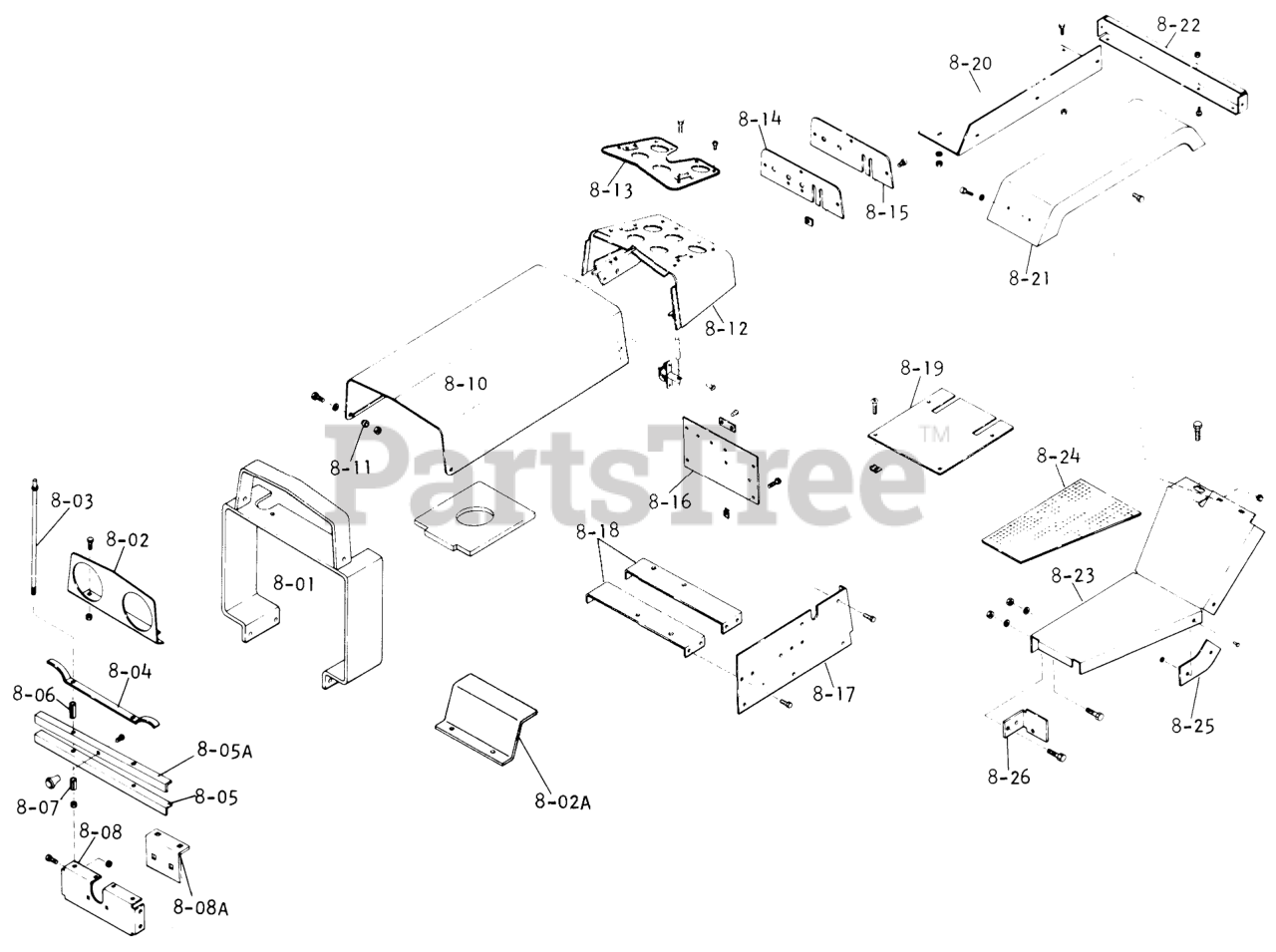

SHEET METAL AND COVERS (CONT-D) Parts Diagram

  • Title

8-01

Toro 103789

Asy-Grille Shroud

$

$

Not available

8-02

Toro 101799

Light Bracket

$

$

Not available

Toro 915112-4

Nut, 5/16-18

$

$

Currently unavailable

8-02A

Toro 103810

Cotter Pin

$

$

Not available

8-03

Toro 103956

ROD-GRILLE

$

$

Not available

8-04

Toro 101153

SPRING GRILLE

$

$

Not available

8-05

Toro 101381

Grille
(Superseded to 105097)

$

$

Not available

8-05A

Toro 103400

Angle-Grille
(Superseded to 105294)

$

$

Not available

Toro 103401

KNOB

$

$

Not available

Toro 911738-4

Screw PHCR #10-32 X 3/8

$

$

Currently unavailable

8-06

Toro 979213

Spacer

$

$

Not available

8-07

Toro 979179

Spacer

$

$

Not available

8-08

Toro 101911

Cover-Front

$

$

Not available

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

8-08A

Toro 103362

Cover

$

$

Not available

Toro 900013-4

Bolt-Carr 1/4-20 X 1/2

$

$

Currently unavailable

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

8-10

Toro 104187

Hood Assembly

$

$

Currently unavailable

Toro 102687

Assy-Hood

$

$

Not available

Toro 103086

INSULATION FOAM

$

$

Not available

Toro 03394

Latch

$

$

Currently unavailable

Toro 103410

Pin

$

$

Not available

Toro 923784-4

Poprivet, 1/8 X .232

$

$

Currently unavailable

8-11

Toro 102675

Bushing

$

$

Not available

Toro 908018-4

Bolt, 5/16-18 X 7/8

$

$

Currently unavailable

Toro 915662-4

Nut 5/16-18

$

$

Currently unavailable

8-12

Toro 103721

Axle

$

$

Not available

Toro 102897

Edge Trim

$

$

Not available

Toro 2708

GROMMET

$

$

Not available

8-13

Toro 103725

Left Differential Gear

$

$

Not available

Toro 100609

Plate Screws

$

$

Not available

8-14

Toro 102671

Idler Shaft

$

$

Not available

8-15

Toro 103992

Plate-Instrument Instruction

$

$

Not available

Toro 926235-4

Screw # 10-12 Type-A x 5/8

$

$

Currently unavailable

Toro 7057

Speed Nut

$

$

Currently unavailable

Toro 935090-4

Plug

$

$

Currently unavailable

8-16

Toro 103968

Washer 1/4

$

$

Not available

Toro 960175-4

Bolt, 5/16-18 x 1/2

$

$

Currently unavailable

Toro 102824

Nut

$

$

Not available

8-17

Toro 103795

Panel-Console RH

$

$

Not available

Toro 103796

Panel-Console LH

$

$

Not available

926694_4

Screw, 5/16-18 X 5/8 S.T. (Side Panels to Frame)

$

$

Not available

8-18

Toro 101080

Battery Support

$

$

Not available

Toro 926694-4

Bolt 5/16-18 x 1

$

$

Currently unavailable

8-19

Toro 103782

Access Cover Plate

$

$

Not available

Toro 911684-4

Screw Hex Hd. Slotted #14-10 X 3/4

$

$

Currently unavailable

Toro 6519

Speed Nut

$

$

Not available

8-20

Toro 103848

Plate-Fender RH

$

$

Not available

Toro 103849

Plate-Fender LH

$

$

Not available

8-21

Toro 101912

Fender-Right and Left

$

$

Not available

Toro 908017-4

Bolt 5/16-18 x

$

$

Currently unavailable

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

Toro 920008-4

Washer

$

$

Currently unavailable

8-22

Toro 103226

Channel

$

$

Not available

Toro 103225

Wear Plate

$

$

Not available

Toro 5667

GROMMET

$4.49

$

In Stock, Qty 20+

0

Toro 910865-4

Bolt, 5/16-18 x 3/4

$

$

Currently unavailable

8-23

Toro 101994

Footrest-R.H.

$

$

Currently unavailable

Toro 101995

Footrest-L.H.

$

$

Currently unavailable

Toro 908032-4

Bolt 3/8-16 x 3/4

$

$

Currently unavailable

Toro 915113-4

Nut

$

$

Currently unavailable

8-24

Toro 102826

Footrest Mat RH

$

$

Not available

Toro 102827

Footrest Mat LH

$

$

Not available

8-25

Toro 102712

Filler Plate

$

$

Not available

Toro 923787-4

Poprivet 1/8 X .419

$

$

Currently unavailable

Toro 920003-4

Washer, #6 SAE

$

$

Currently unavailable

8-26

Toro 100997

Bracket

$

$

Not available

Toro 920009-4

Washer

$

$

Currently unavailable

Toro 960012-4

Nut, Flange 3/8-16

$

$

Currently unavailable
