1-0630 (D-200) - Toro Lawn Tractor (1974) FUEL AND EXHAUST SYSTEMS (CONT-D) Parts Diagram

Lawn Tractor

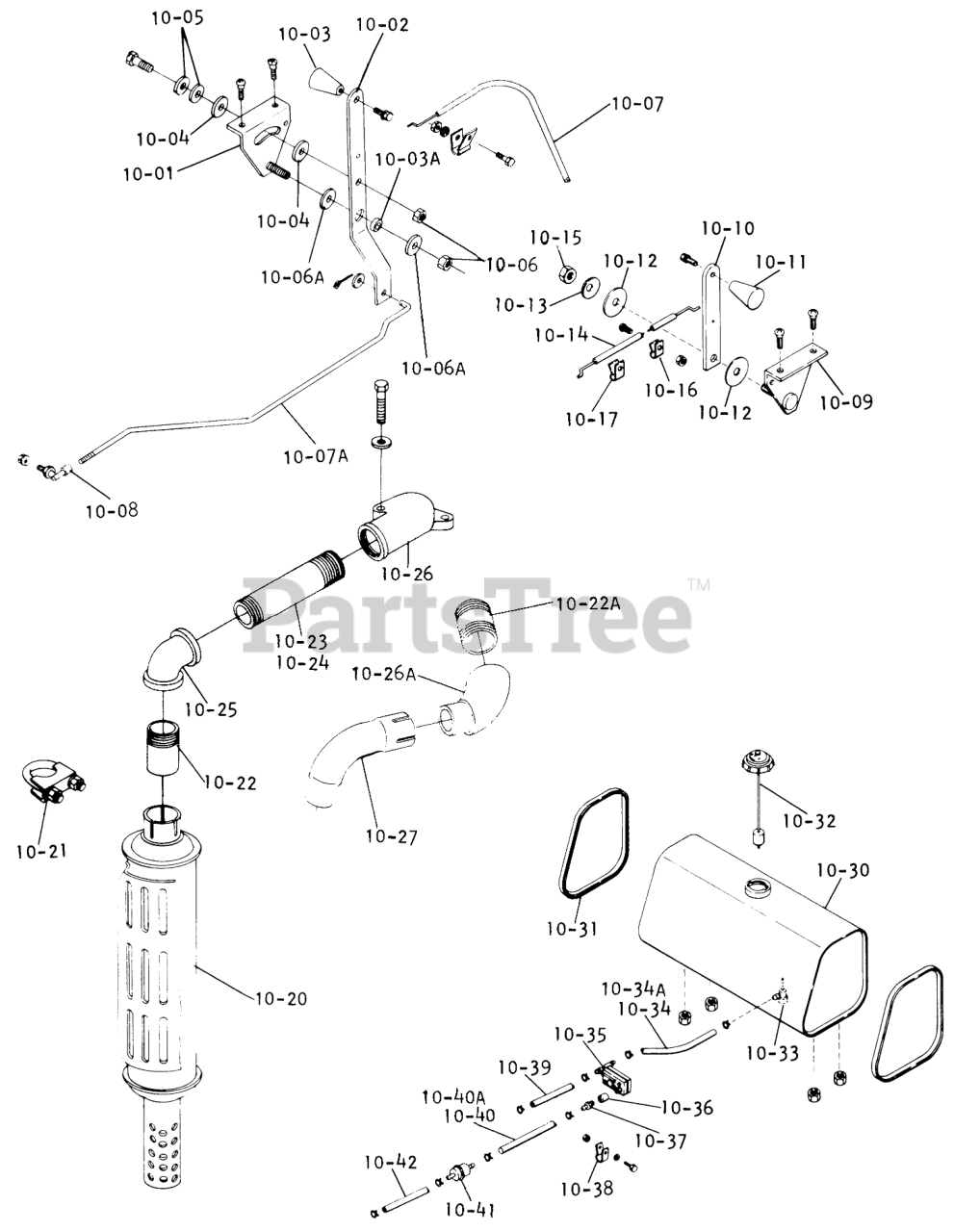

FUEL AND EXHAUST SYSTEMS (CONT-D) Parts Diagram

  • Title

10-01

Toro 103731

Assy-Bracket

$

$

Not available

Toro 101410

Screw, Special

$

$

Not available

10-02

Toro 103733

Handle Throttle

$

$

Not available

10-03

Toro 102892

KNOB

$31.99

$

Usually ships in 3-6 days

0

Toro 960151-4

Bolt, 1/4-20 Whizlock

$

$

Currently unavailable

10-03A

Toro 6331

SPACER CLUTCH ARM

$

$

Not available

10-04

Toro 100305

FRICTION WASHER

$5.99

$

In Stock, only 2 left!

0

10-05

Toro 100365

WASHER-SPRING DISC

$

$

Not available

10-06

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

10-06A

Toro 920224-4

Washer-3/8

$

$

Currently unavailable

Toro 908035-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

10-07

Toro 103785

Throttle Rod, D-160

$

$

Not available

10-07A

Toro 103730

Rod-Throttle

$

$

Not available

Toro 920007-4

Washer

$

$

Currently unavailable

Toro 932007-4

Pin-cotter 3/32 X 1/2

$

$

Currently unavailable

Toro 7059

CLIP BOWDEN WIRE

$2.99

$

Usually ships in 3-6 days

0

Toro 960140-4

Screw, 10-32 X 5/8 Hex

$

$

Currently unavailable

Toro 5924

HEX NUT 10-32 E.S.

$

$

Not available

10-08

Toro 102903

BALL JOINT ASSY R

$

$

Not available

Toro 915000-6

Nut-Nylok 1/4-28

$

$

Currently unavailable

10-09

Toro 103731

Assy-Bracket

$

$

Not available

10-10

Toro 102711

HANDLE

$

$

Not available

10-11

Toro 102892

KNOB

$31.99

$

Usually ships in 3-6 days

0

10-12

Toro 100305

FRICTION WASHER

$5.99

$

In Stock, only 2 left!

0

10-13

Toro 100365

WASHER-SPRING DISC

$

$

Not available

10-14

Toro 103784

Choke Control, D-160

$

$

Not available

Toro 102863

CABLE CHOKE CONTROL

$

$

Not available

10-16

Toro 7059

CLIP BOWDEN WIRE

$2.99

$

Usually ships in 3-6 days

0

10-17

Toro 100729

THROTTLE CONTROL CLP

$6.49

$

Usually ships in 3-6 days

0

10-20

Toro 103729

ASSEMBLY MUFFLER

$444.99

$

Usually ships in 3-6 days

0

Toro 103729

ASSEMBLY MUFFLER

$444.99

$

Usually ships in 3-6 days

0

Toro 102361

Starter Wire Clip
(Superseded to 101861)

$

$

Not available

10-21

Toro 102645

ASSY-MUFFLER CLAMP

$13.99

$

In Stock, only 1 left!

0

10-22

Toro 103096

Nipple

$

$

Not available

10-22A

Toro 943375

Nipple-Exhaust, 1 1/4 x 1-5/8, D-160

$

$

Currently unavailable

10-23

Toro 943367-4

Nipple 1" Pipe x 2"

$

$

Currently unavailable

10-24

Toro 943372-4

Nipple-Exhaust 1 X 5

$

$

Currently unavailable

10-25

Toro 943026-4

Elbow 90 X 1

$

$

Currently unavailable

10-26

Toro 103396

Fitting Exhaust RH

$

$

Not available

Toro 103397

Fitting Exhaust LH

$

$

Not available

10-26A

Toro 104201

Exhaust Fitting, D-160

$

$

Not available

Toro 908020-4

Bolt 5/16-18 x 11/4

$

$

Currently unavailable

Toro 908025-4

Bolt Hex 5/6-18 X 2-1/2

$

$

Currently unavailable

Toro 920082-4

Lockwasher

$

$

Currently unavailable

10-27

Toro 104205

TUBE-INLET

$286.99

$

Usually ships in 3-6 days

0

10-30

Toro 102631

Fuel Tank

$

$

Not available

Toro 103713

Fuel Tank
(Superseded to 103713-03)

$

$

Not available

Toro 960010-4

Nut Whizlock 5/16-18

$

$

Currently unavailable

10-31

Toro 102898

Edge Trim

$

$

Not available

Toro 103769

Edge Trim

$

$

Not available

10-32

Toro 102587

GAUGE CAP

$149.99

$

Usually ships in 3-6 days

0

Toro 103845

GAUGE CAP

$171.99

$

Usually ships in 3-6 days

0

10-33

Toro 4941

FILTER & VALVE ASSY

$

$

Not available

10-34

Toro 103787

Fuel Line 62
(Superseded to 110521)

$

$

Not available

Toro 950153

CLAMP CORBIN 7/16

$

$

Not available

Toro 2714

Cap-Tank
(Superseded to 102587)

$149.99

$

Usually ships in 3-6 days

0

10-34A

Toro 8215

Fuel Hose

$

$

Currently unavailable

10-35

Toro 103085

Pump Fuel
(Superseded to 27-7000)

$

$

Not available

10-36

Toro 943001-4

Coupling 1/8" Pipe

$

$

Currently unavailable

10-37

Toro 1787

Straight Fitting
(Superseded to 105076)

$

$

Not available

Toro 908005-4

Bolt-Hex 1/4-20

$

$

Currently unavailable

Toro 908002-4

Bolt-1/4-20 x 5/8

$

$

Currently unavailable

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

Toro 908017-4

Bolt 5/16-18 x

$

$

Currently unavailable

Toro 104054

Clamp

$

$

Currently unavailable

10-38

Toro 101861

CLAMP-HOSE

$

$

Not available

10-39

Toro 8214

Fuel Hose
(Superseded to 110521)

$

$

Not available

Toro 908019-4

Bolt 5/16-18 x 1

$

$

Currently unavailable

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

10-40

Toro 8714

Hose
(Superseded to 101338)

$

$

Not available

10-40A

Toro 7722

Hose-Fuel
(Superseded to 110521)

$

$

Not available

10-41

Toro 100327

Filter
(Superseded to 139-5916)

$9.49

$

In Stock, Qty 20+

0

10-42

Toro 9212

Fuel Hose
(Superseded to 101338)

$

$

Not available
