1-0650 (D-160) - Toro Lawn Tractor (1974) WHEELS AND TIRES (PLATE 13.1) REGULAR WIDTH TIRE SET Parts Diagram

Lawn Tractor

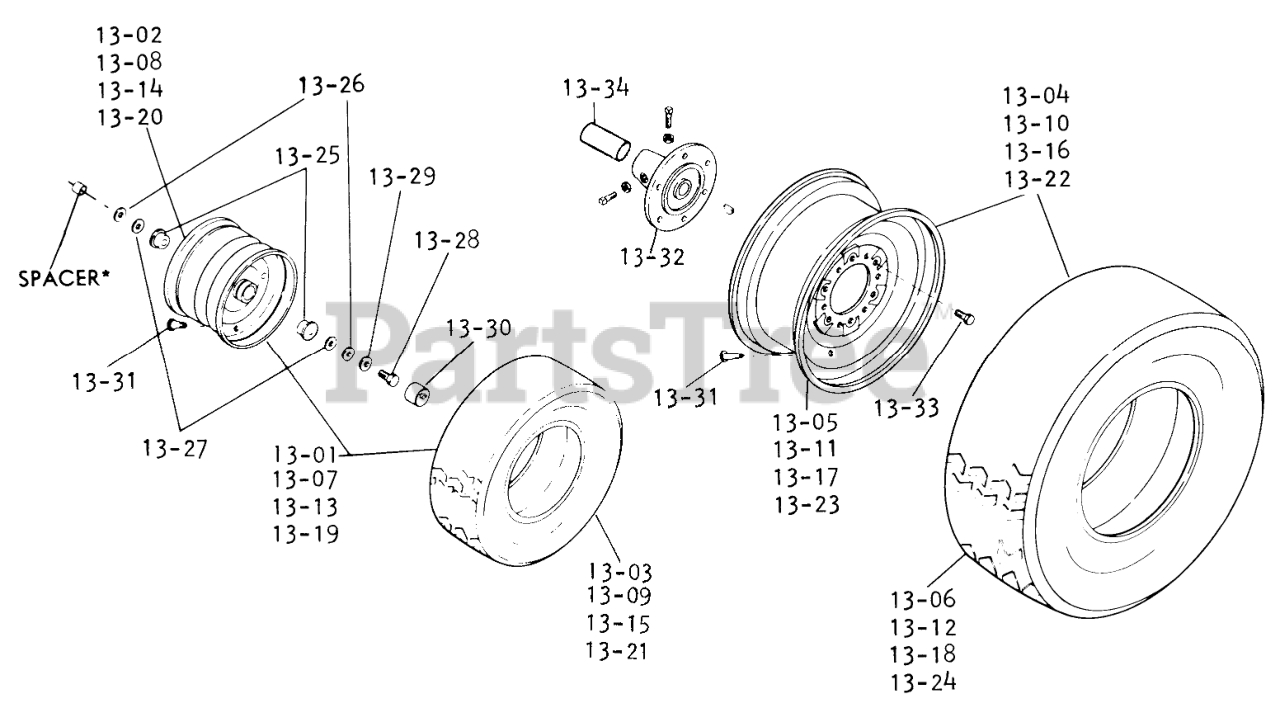

WHEELS AND TIRES (PLATE 13.1) REGULAR WIDTH TIRE SET Parts Diagram

  • Title

13-01

Toro 100652

Wheel & Tire Assy.-Front 18 X 6.50-8

$

$

Not available

13-02

Toro 100650

Wheel

$

$

Not available

13-03

Toro 8287

TIRE

$

$

Not available

13-04

Toro 102899

Rear Wheel and Tire Assy Turf

$

$

Not available

13-05

Toro 102900

Rear Wheel

$

$

Not available

13-06

Toro 8285

Tire 27 x 9.50-15

$

$

Not available

Toro 101757

SPACER-OUTER

$6.49

$

In Stock, Qty 10

0

13-07

Toro 103774

Wheel & Tire Assy.-Front 18 X 8.50-8

$

$

Not available

13-08

Toro 103775

Wheel

$

$

Not available

13-09

Toro 8191

TIRE 18 X 8.50 X 8

$236.99

$

Usually ships in 3-6 days

0

13-10

Toro 103122

Rear Wheel & Tire Turf

$

$

Not available

13-11

Toro 103123

Wheel 12 x 10.5 PC

$

$

Not available

13-12

Toro 103124

Tire, Extra Width Traction

$

$

Not available

13-13

Toro 100652

Wheel & Tire Assy.-Front 18 X 6.50-8

$

$

Not available

13-14

Toro 100650

Wheel

$

$

Not available

13-15

Toro 8287

TIRE

$

$

Not available

13-16

Toro 103077

Wheel & Tire Assy.-Rear 27 X 8.50-15

$

$

Not available

13-17

Toro 102900

Rear Wheel

$

$

Not available

13-18

Toro 9116

Rear Tire 27 x 8.50-15 Cleat

$

$

Currently unavailable

13-19

Toro 103774

Wheel & Tire Assy.-Front 18 X 8.50-8

$

$

Not available

13-20

Toro 103775

Wheel

$

$

Not available

13-21

Toro 8191

TIRE 18 X 8.50 X 8

$236.99

$

Usually ships in 3-6 days

0

13-22

Toro 104156

Rear Wheel & Tire Cleat

$

$

Currently unavailable

13-23

Toro 103123

Wheel 12 x 10.5 PC

$

$

Not available

13-24

Toro 104157

Tire, Extra Width Cleat

$

$

Not available

13-25

Toro 4999

Bearing
(Superseded to 110513)

$21.99

$

In Stock, Qty 20+

0

13-26

Toro 920251-4

Washer-. 050" Shim

$

$

Currently unavailable

13-27

Toro 920252-4

Washer-. 015" Shim

$

$

Currently unavailable

13-28

Toro 908033-6

Bolt 3/8-16 x 7/8

$

$

Currently unavailable

13-29

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

13-30

Toro 104398

HUBCAP

$

$

Not available

13-31

Toro 5108

VALVE

$6.99

$

In Stock, Qty 13

0

13-32

Toro 102372

REAR HUB R

$

$

Not available

13-33

Toro 1487

LUG BOLT WHEEL 7/162

$15.99

$

Usually ships in 3-6 days

0

13-34

Toro 103406

Axle Cover Tube

$

$

Not available

Toro 937046

WOODRUFF KEY

$

$

Not available

Toro 909556

SS-SQ HD3/8-16X1 1/2
(Superseded to 3243-13)

$4.49

$

Usually ships in 3-6 days

0

Toro 915113-4

Nut

$

$

Currently unavailable
