1-0651 (D-160) - Toro Lawn Tractor (1975) 13.000 Wheels And Tires (fig. 13) Parts Diagram

Lawn Tractor

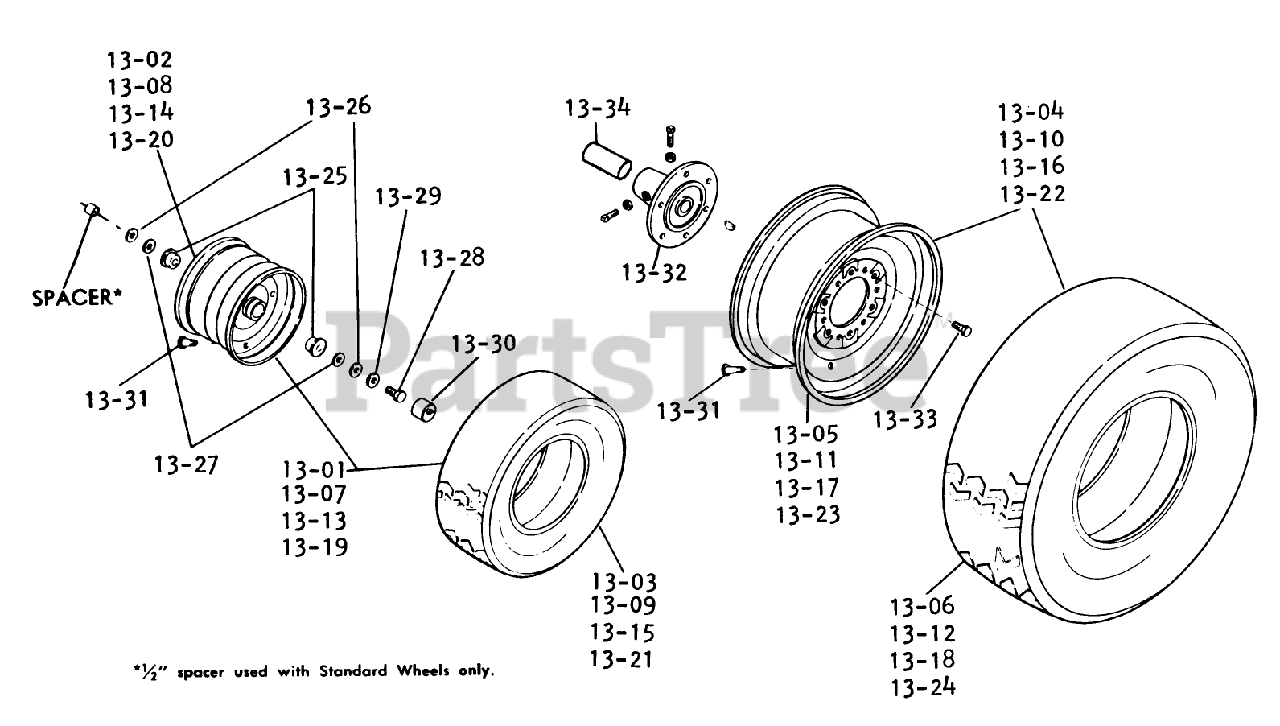

13.000 Wheels And Tires (fig. 13) Parts Diagram

  • Title

13-01

Toro 104397

ASSY-WHEEL

Note: REGULAR WIDTH TIRE SET

$919.99

$

Usually ships in 3-6 days

0

13-02

Toro 104399

DISCONTINUED

Note: REGULAR WIDTH TIRE SET

$

$

Not available

13-03

Toro 104464

DISCONTINUED

Note: REGULAR WIDTH TIRE SET

$

$

Not available

13-04

Toro 102899

DISCONTINUED

Note: REGULAR WIDTH TIRE SET

$

$

Not available

13-05

Toro 102900

DISCONTINUED

Note: REGULAR WIDTH TIRE SET

$

$

Not available

13-06

Toro 8285

DISCONTINUED

Note: REGULAR WIDTH TIRE SET

$

$

Not available

13-07

Toro 104397

ASSY-WHEEL

Note: WIDE TIRE SET

$919.99

$

Usually ships in 3-6 days

0

13-08

Toro 104399

DISCONTINUED

Note: WIDE TIRE SET

$

$

Not available

13-09

Toro 104464

DISCONTINUED

Note: WIDE TIRE SET

$

$

Not available

13-10

Toro 103122

DISCONTINUED

Note: WIDE TIRE SET

$

$

Not available

13-11

Toro 103123

DISCONTINUED

Note: WIDE TIRE SET

$

$

Not available

13-12

Toro 103124

DISCONTINUED

Note: WIDE TIRE SET

$

$

Not available

13-13

Toro 104397

ASSY-WHEEL

Note: REGULAR WIDTH CLEAT TIRE SET

$919.99

$

Usually ships in 3-6 days

0

13-14

Toro 104399

DISCONTINUED

Note: REGULAR WIDTH CLEAT TIRE SET

$

$

Not available

13-15

Toro 104464

DISCONTINUED

Note: REGULAR WIDTH CLEAT TIRE SET

$

$

Not available

13-16

Toro 103077

ORDER 110006 OR 110007

Note: REGULAR WIDTH CLEAT TIRE SET

$

$

Not available

13-17

Toro 102900

DISCONTINUED

Note: REGULAR WIDTH CLEAT TIRE SET

$

$

Not available

13-18

Toro 9116

Rear Tire 27 x 8.50-15 Cleat

Note: REGULAR WIDTH CLEAT TIRE SET

$

$

Currently unavailable

13-19

Toro 104397

ASSY-WHEEL

Note: WIDE CLEAT TIRE SET

$919.99

$

Usually ships in 3-6 days

0

13-20

Toro 104399

DISCONTINUED

Note: WIDE CLEAT TIRE SET

$

$

Not available

13-21

Toro 104464

DISCONTINUED

Note: WIDE CLEAT TIRE SET

$

$

Not available

13-22

Toro 104156

Rear Wheel Tire Cleat

Note: WIDE CLEAT TIRE SET

$

$

Currently unavailable

13-23

Toro 103123

DISCONTINUED

Note: WIDE CLEAT TIRE SET

$

$

Not available

13-24

Toro 104157

DISCONTINUED

Note: WIDE CLEAT TIRE SET

$

$

Not available

13-25

Toro 104396

DISCONTINUED

Note: WIDE CLEAT TIRE SET

$

$

Not available

13-26

Toro 920251

WASHER

Note: WIDE CLEAT TIRE SET

$3.49

$

In Stock, only 2 left!

0

13-27

Toro 920252

See Supercession: 9202524
(Superseded to 9202524)

Note: WIDE CLEAT TIRE SET

$1.99

$

Usually ships in 3-6 days

0

13-28

Toro 908033

See Supercession: 110242
(Superseded to 110242)

Note: WIDE CLEAT TIRE SET

$2.49

$

In Stock, Qty 5

0

13-29

Toro 2844

WASHER

Note: WIDE CLEAT TIRE SET

$3.49

$

In Stock, Qty 14

0

13-30

Toro 104398

DISCONTINUED

Note: WIDE CLEAT TIRE SET

$

$

Not available

13-31

Toro 5108

VALVE

Note: WIDE CLEAT TIRE SET

$7.99

$

In Stock, only 4 left!

0

13-32

Toro 102372

DISCONTINUED

Note: WIDE CLEAT TIRE SET

$

$

Not available

13-33

Toro 1487

BOLT-LUG, WHEEL

Note: WIDE CLEAT TIRE SET

$19.99

$

Usually ships in 3-6 days

0

13-34

Toro 103406

DISCONTINUE

Note: WIDE CLEAT TIRE SET

$

$

Not available

Toro 937046

DISCONTINUED

Note: WIDE CLEAT TIRE SET

$

$

Not available

Toro 909556

See Supercession: 3243-13
(Superseded to 3243-13)

Note: WIDE CLEAT TIRE SET

$4.49

$

Usually ships in 3-6 days

0

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

Note: WIDE CLEAT TIRE SET

$

$

Not available
