1-0700 (C-185) - Toro Elec-Trak Lawn Tractor (1975) MOTOR, TRANSMISSION AND DRIVE SYSTEM Parts Diagram

Elec-Trak Lawn Tractor

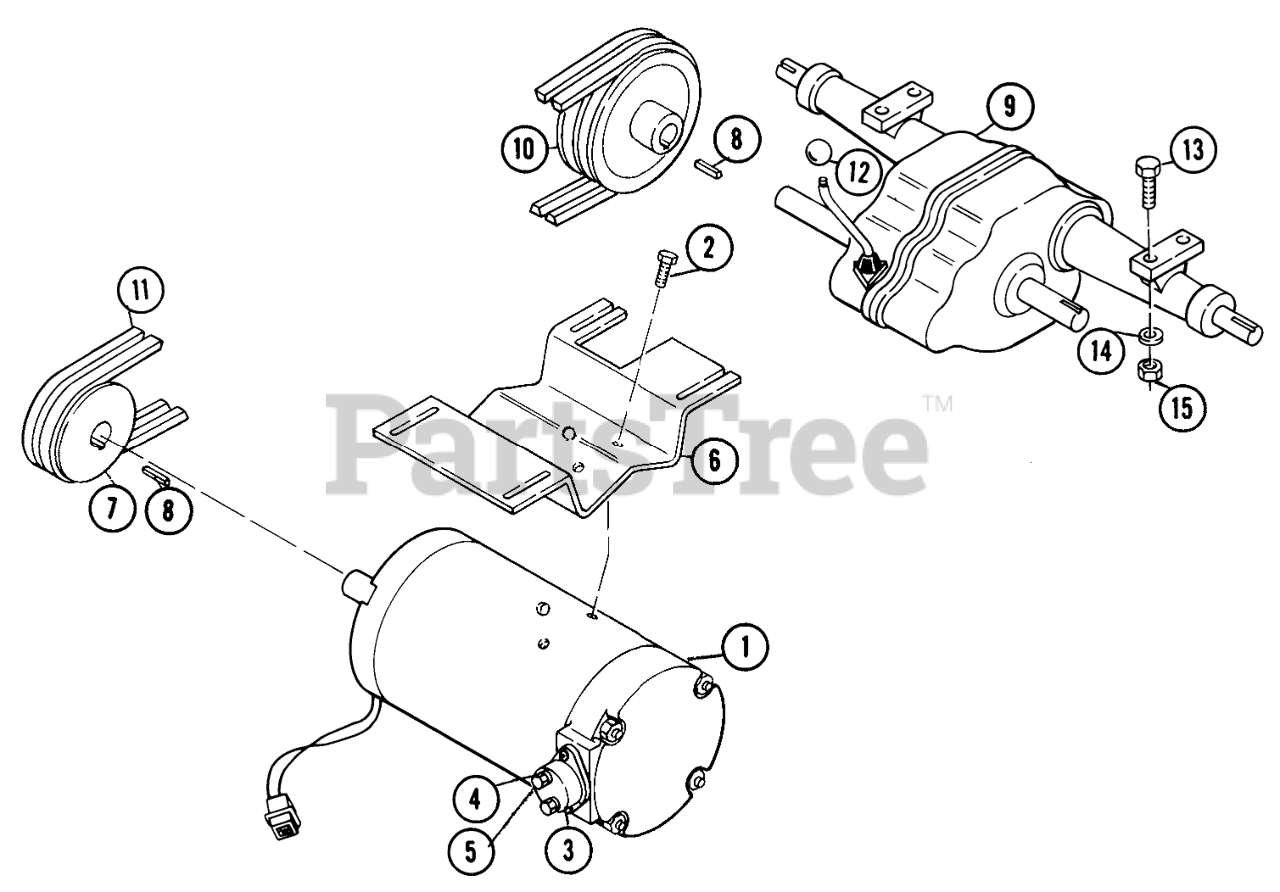

MOTOR, TRANSMISSION AND DRIVE SYSTEM Parts Diagram

  • Title

9-01

Toro 516097

Motor

$

$

Not available

9-02

Toro 513338

Bolt, Hex 5/16-18 x 5/8

$

$

Not available

9-03

Toro 518892

Circuit Breaker (CB-1)

$

$

Not available

9-04

Toro 513722

Mach. Screw, Pan Hd. #10-32 x 3/4
(Superseded to 3250-25)

$0.99

$

Usually ships in 3-6 days

0

9-05

Toro 513536

Lockwasher #10
(Superseded to 3253-17)

$0.99

$

In Stock, Qty 14

0

9-06

Toro 521954

Mounting Plate, Motor

$

$

Currently unavailable

9-07

Toro 518775

Pulley, Drive Motor

$

$

Not available

9-08

Toro 513441

Key, 3/16 x 3/4

$

$

Not available

9-09

Toro 521385

Transaxle Assembly

$

$

Not available

9-10

Toro 515917

Pulley, Transmission

$

$

Currently unavailable

9-11

Toro 517433

Drive Belt (Matched Pair)

$

$

Not available

9-12

Toro 517460

Knob, Gear Shift
(Superseded to 102871)

$

$

Not available

9-13

Toro 513364

Cap Screw, Hex 3/8-16 x 1 3/4
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

9-14

Toro 517517

Spring Lockwasher

$

$

Currently unavailable

9-15

Toro 513415

Nut, Hex 3/8-16
(Superseded to 3217-7)

$0.99

$

In Stock, Qty 14

0
